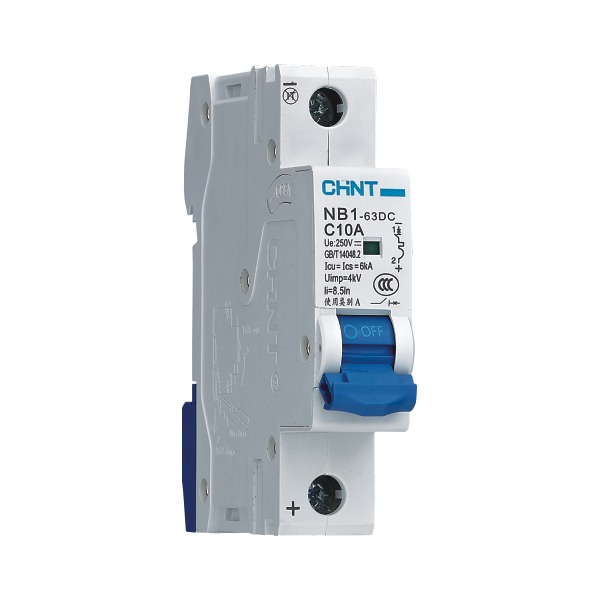

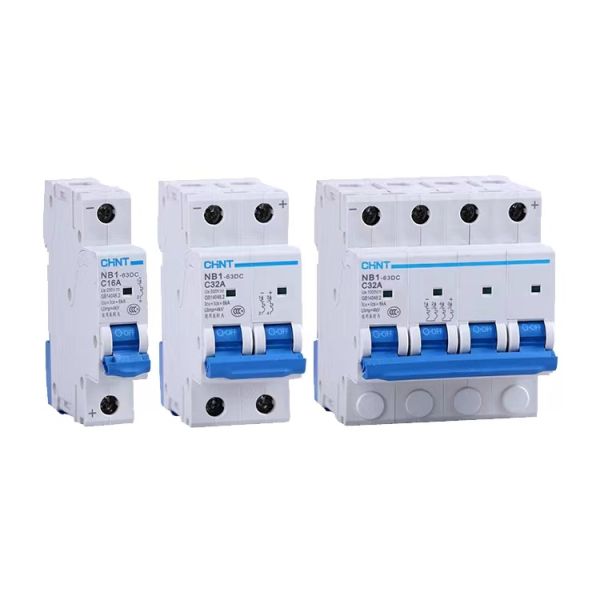

Product Overview

The NB1-63DC Series is a high-performance miniature circuit breaker specifically designed for Solar Photovoltaic (PV) applications. While standard AC breakers fail to extinguish the persistent arcs of direct current, the NB1-63DC features specialized internal magnets and arc-chutes to safely interrupt DC faults.

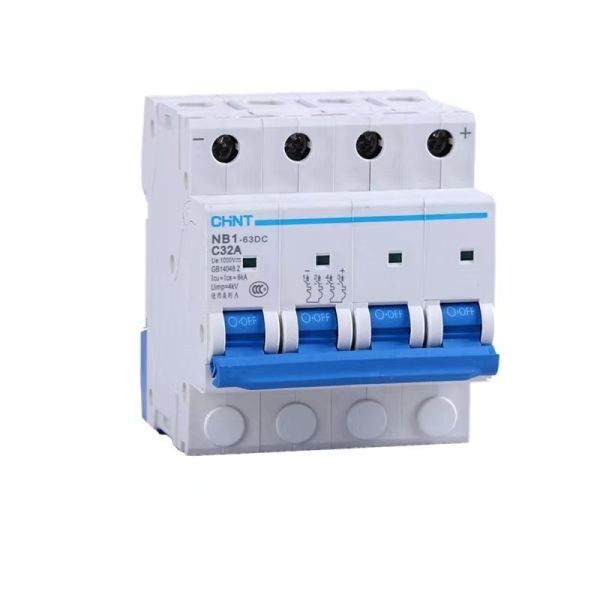

As a critical component in solar combiner boxes and inverter protection circuits, this breaker safeguards your PV modules and wiring against overloads and short circuits. With a rated voltage of up to 500V DC (2-Pole) or 1000V DC (4-Pole), it is the industry standard for commercial and residential solar installations.

Key Technical Advantages

• Specialized DC Arc-Extinguishing: Equipped with powerful permanent magnets that "pull" the DC arc into the extinguishing chamber, ensuring fast and safe fault isolation.

• High-Voltage Rating: Optimized for high-voltage DC strings, providing reliable protection for systems operating at 250V per pole.

• Non-Polarity Sensitivity: Designed for ease of installation—these breakers are non-polar, meaning they can be wired in either direction without compromising protection, reducing the risk of wiring errors.

• Rapid Response Mechanism: Features a high-speed trip mechanism that reacts instantly to short circuits, protecting expensive solar inverters and sensitive PV panels from back-feed currents.

• Durable Industrial Build: Housed in high-grade, flame-retardant material with a clear contact position indicator (Red/Green) for at-a-glance safety checks.

Technical Specifications

Primary Application Scenarios

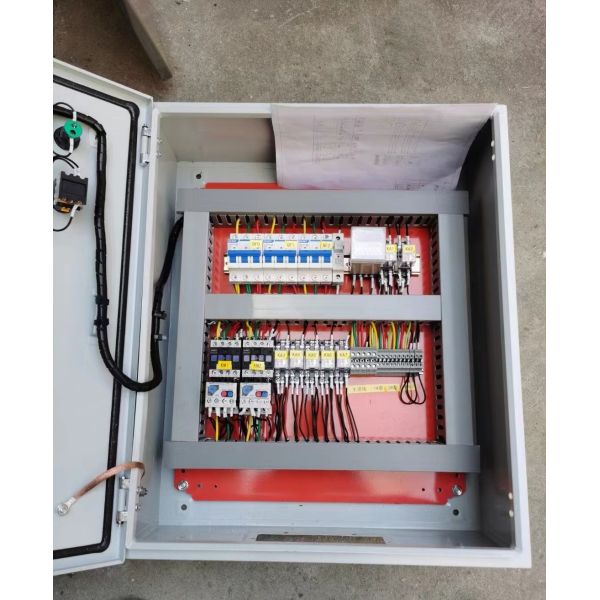

1. Solar Combiner Boxes: Protecting individual PV strings before they are paralleled.

2. Solar Inverters: Serving as the primary DC disconnect and protection on the input side of the inverter.

3. Battery Storage Systems (ESS): Circuit protection for DC battery banks in off-grid and hybrid solar systems.

4. EV Charging Stations: DC-side protection for rapid chargers and specialized DC power distribution.

Why Choose the NB1-63DC for Your Project?

• Certified Reliability: Fully compliant with IEC 60947-2, ensuring the device meets international safety standards for industrial DC applications.

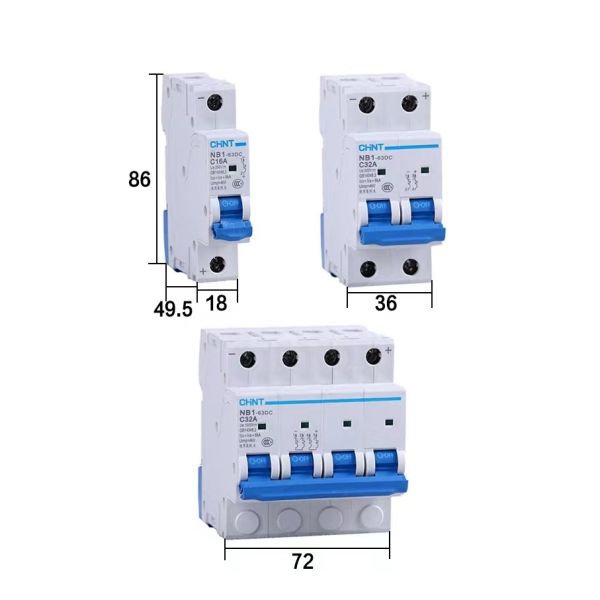

• Compact Din-Rail Design: Standard 18mm width per pole allows for easy integration into standard distribution boards and solar enclosures.

• Proven Performance in Extremes: Tested to operate reliably in the high-temperature environments typical of rooftop combiner boxes and solar farms.

• Clear Safety Labeling: Each unit is laser-marked with detailed technical data and wiring diagrams, ensuring long-term legibility for maintenance crews.

FAQ

Q: Can I use a standard AC breaker for my solar panels?

A: No. Standard AC breakers rely on the "zero-crossing" of the AC cycle to extinguish the arc. DC current stays constant, making the arc much harder to stop. Using an AC breaker on a DC circuit can result in fire or catastrophic failure.

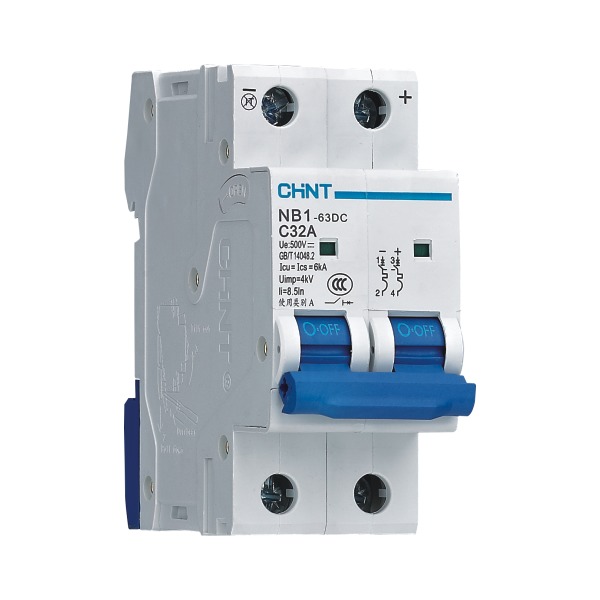

Q: What is the benefit of a 2-Pole (500V) vs. a 1-Pole (250V) breaker?

A: By using a 2-Pole breaker, you split the voltage across two sets of contacts, allowing the device to safely handle higher system voltages (up to 500V DC).

Q: Is this breaker compatible with 48V battery systems?

A: Yes. While it is rated for high-voltage PV (up to 1000V), it performs exceptionally well at lower DC voltages like 12V, 24V, and 48V battery banks.
