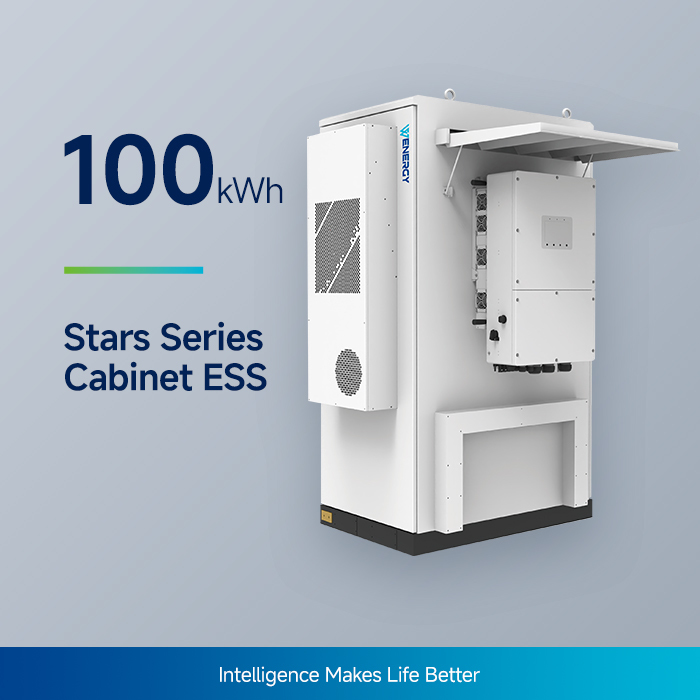

Stars CA100 Series Air-cooled Hybrid Commercial Battery Storage System with 90% Round Trip Efficiency IP55 Ingress Rating and Modular Design
Stars CA100 Series Air-cooled Hybrid Commercial Battery Storage System with 90% Round Trip Efficiency IP55 Ingress Rating and Modular Design
Specifications
Model Number :
Stars CA100 Series
Cycle Life :
≥8,000 cycles
Price :
Negotiable
Fire Suppression System :
Aerosol
Fire Suppression :
Aerosol
Payment Terms :
L/C,T/T
Ingress Rating :
IP55
Certification :
IEC/EN 62619,IEC 62477,IEC 60529,IEC 61000-6-2,IEC 61000-6-4,UN38.3
Max.Round Trip Efficiency :
90%
Brand Name :
Wenergy
Cell Type :
LFP/314Ah
MOQ :
Negotiable
Communication :
Modbus TCP/IP
Description
Stars CA100 Series Air-cooled Hybrid Cabinet (50kW/100kWh; 60kW/120kWh)
Key Highlights
Economical and Efficient
RTE up to 90%, DOD up to 100%
Compact & Convenient
0.96m² footprint, easy to transport and install
Expandable & Modular
Easy modular design supports parallel connection for convenient system expansion
Versatile
Supports multiple brands of hybrid inverter, with higher selectivity
Safe & Reliable
IP55, optimized ventilation design, temperature difference within 6℃
PV Pluggable
Support PV connection, with higher integration
Self-developed
LFP314Ah battery cell system integration, leading cost advantage, 3S fusion
Easy O&M
Support multiple ways of operation and maintenance, including on-site and cloud
Product Parameters
Battery Cabinet Specifications
Parameter Stars CA100 Stars CA120
Cell Type LFP/314Ah LFP/314Ah
Pack Configuration 20.096 kWh/1P20S 20.096 kWh/1P20S
System Configuration 100.48 kWh/1P100S 120.576 kWh/1P120S
Rated DC Voltage 320V 384V
DC Voltage Range 280～360V 336～432V
Max. Charge/Discharge Rate 0.5P 0.5P
Max. Depth of Discharge 100% (25±2℃) 100% (25±2℃)
Cycle Life ≥8,000 cycles ≥8,000 cycles
PV Input Specifications
Parameter Stars CA100 Stars CA120
Max. Input Power 59.8kW, 60kW, 80kW, 98kW, 100kW 59.8kW, 60kW, 80kW, 98kW, 100kW
PV Voltage Range 150～850V 150～850V
MPPT 3, 4 3, 4
Max. Input Current 40A*3, 40A*4 40A*3, 40A*4
AC Side Specifications
Parameter Stars CA100 Stars CA120
Rated Output Power 29.9kW, 30kW, 40kW, 49kW, 50kW 29.9kW, 30kW, 40kW, 49kW, 50kW, 60kW
Rated AC Voltage 400V 400V
AC Voltage Range ±15% ±15%
Grid Type 3W+N+PE 3W+N+PE
Rated Frequency 50Hz/60Hz 50Hz/60Hz
Power Factor 0.991-0.8～+0.8 0.991-0.8～+0.8
THDi ≤3% ≤3%
DC Ratio <0.5%lpn <0.5%lpn
General Specifications
  • Max. Round Trip Efficiency: 90%
  • Communication: Modbus TCP/IP
  • Fire Suppression System: Aerosol
  • Ingress Rating: IP55
  • Cooling: Air Cooling
  • Operating Temperature: -25℃~55℃ (Derating after 45℃)
  • Anticorrosion Rating: C4 (C5 optional)
  • Humidity: 0~95%RH (non-condensing)
  • Altitude: 3000m (Derating above 2000m)
  • Dimensions (W*D*H): 800*1,200*2,100 mm (Foundation) / 1,536*1,377*2,100mm (Entire)
  • Weight: 1200 kg
Safety/EMC Compliance
  • Grid Code: UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4
  • Additional Standards: EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11
