Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
Specifications
Brand Name :
WELLMAN
Model Number :
X6800
Certification :
CE,ISO9001,FDA
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7 work days
Packaging Details :
Wooden case
Supply Ability :
Worldwide supply
X-ray Type :
Closed,microfocus
Max tube voltage :
90kv
Effective area :
130mm*130mm
Pixel size :
85μm
Resolution :
1536*1536
Max tube current :
200μA
Description

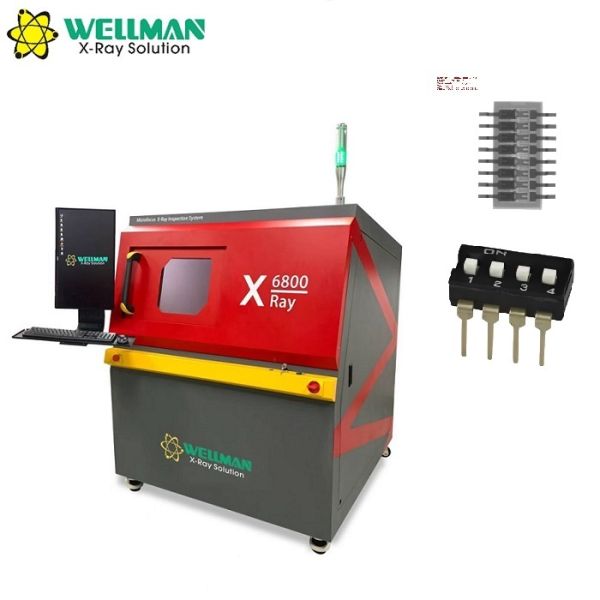

Automotive Electronics X Ray Defect Detector 5 Axis 10KG Load Capacity
Wellman Microfocus X Ray Inspect Machine X6800
Key Advantages
  • Closed-type X-ray tube: 10,000+ hour lifespan and maintenance-free operation
  • Next-gen 5" HD digital flat panel detector (FPD)
  • 60° tiltable FPD - magnification remains uncompromised
  • Auto-navigation window: Table navigates directly to clicked positions
  • 530*530mm table with 10KG load-bearing capacity
  • 5-axis linkage system featuring flexible speed adjustment
  • Programmable inspection protocols supporting automated batch inspection
  • Intuitive operation for rapid defect identification - just 2 hours of training required
Hardware Specifications
X-ray Source
Type Closed, microfocus
Max tube voltage 90kV
Max tube current 200μA
Focal spot size 5μm
Function Auto preheat
Flat Panel Detector
Effective area 130mm*130mm
Pixel size 85μm
Resolution 1536*1536
Frame rate 20fps
Tiltable angle 60°
Table Specifications
Size 530mm*530mm
Detectable area 500mm*500mm
Max load 10kg
Equipment Specifications
Magnification Geometry 200X | System 1500X
Inspection speed Max 3.0s/point
Dimensions 1360mm (L) * 1365mm (W) * 1730mm (H)
Weight 1200kg
Power supply AC110-220V 50/60HZ
Max power 1500W
Industrial PC I5 CPU, 8G RAM, 500GB SSD
Displayer 24" HDMI LCD
Safety Features
  • Window and back door safety interlock system
  • Tube protection prevents leaving software without closing X-ray
  • Radiation leakage: No leakage (≤1μSv/h, international standard)
  • Emergency stop button near operation position
  • Transparent lead glass observation window for safe internal viewing
  • Electromagnetic safety switch locks when X-ray is active
Software Capabilities
Core Functions
  • Presentation of inspection results (void rate distance area etc.)
  • Adjustable axis movement speeds (slow/normal/fast)
  • Product list for saving and recalling inspection parameters
  • X-ray tube operation controlled via mouse/keyboard with real-time voltage and current display
  • Status bar indicating interlock pre-heat and X-ray status
  • Real-time display of motion axis coordinates
  • Navigation window for precise table positioning
  • Adjustable image brightness, contrast and gain
Voids Rate Measurement
  • Manual void addition via polygon/freehand drawing
  • Parameter saving for consistent product inspection
  • Automatic calculation of solder ball voids with NG/OK indication
  • Adjustable grayscale threshold, pixel, contrast, and size filtering
Measurement Functions
  • Distance measurement between points
  • Radius measurement capability for circular components
  • Perimeter measurement function for square components
  • Distance rate calculation for through-hole soldering
  • Angle measurement between points
Automatic Inspection
  • Automatic feature recognition for distinctive inspection points
  • Array inspection for regular patterns
  • Manual inspection point setting
Working Principle
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
X6800 PCB X-ray Inspection Machine working principle
Application Examples
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
BGA Solder Bridge
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
BGA Solder Voids
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
PCB Through-Hole
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
IC Voids and Gold Wire
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
LED Solder Voids
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
LED Gold Wire Crack
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
Capacitor
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
Inductor
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
Sensor
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
Thyristor Surge Suppressors
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
Fiberglass
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
Cable
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
Diode
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
Steel Pipe Welding Gap
Automotive X Ray Inspection Machine 5 Axis 10KG Load Capacity
Automobile Electronics
