PCB x ray inspection machine with 5 HD Digital Flat Panel Detector and 530x530mm Table
PCB x ray inspection machine with 5 HD Digital Flat Panel Detector and 530x530mm Table
Specifications
Brand Name :
WELLMAN
Model Number :
X-Ray X-6800
Certification :
CE,ISO9001,FDA
Place of Origin :
China
Payment Terms :
T/T
Packaging Details :
Wooden case
MOQ :
1
Delivery Time :
7 work days
Supply Ability :
Worldwide supply
Description

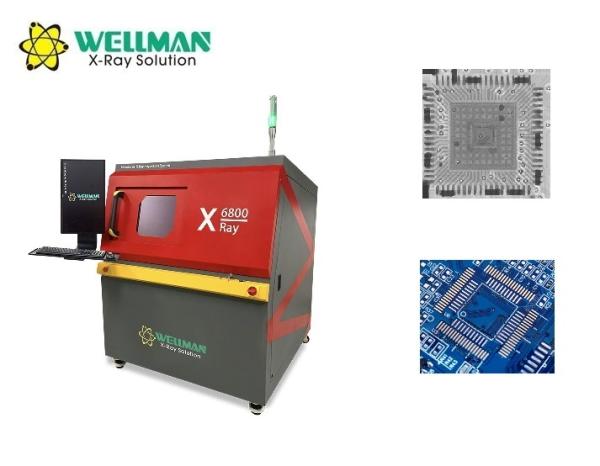

PCB Inspection Machine with 5" HD Digital Flat Panel Detector and 530x530mm Table
Key Advantages
  • Closed type X-ray tube with over 10,000 hours lifetime, maintenance-free operation
  • New generation 5" HD digital flat panel detector (FPD)
  • FPD tilts up to 60° without sacrificing magnification
  • Automatic navigation window - table moves to clicked position
  • 530×530mm table with 10KG load capacity
  • Speed adjustable 5-axis linkage system
  • Programmable inspection procedures for automated batch inspection
  • Easy operation with quick defect detection - only 2 hours training required
Working Principle
PCB x ray inspection machine with 5
Hardware Specifications
X-ray Source
Type Closed, microfocus
Max Tube Voltage 90kV (110kV, 130kV optional)
Max Tube Current 200μA
Focal Spot Size 5μm (4μm, 2μm optional)
Function Auto preheat
Flat Panel Detector
Effective Area 130mm×130mm
Pixel Size 85μm
Resolution 1536×1536
Frame Rate 20fps
Tiltable Angle 60°
Table
Size 530mm×530mm
Detectable Area 500mm×500mm
Max Load 10kg
Equipment
Magnification Geometry 200X | System 1500X
Inspection Speed Max 3.0s/point
Dimensions 1360mm (L) × 1365mm (W) × 1730mm (H)
Weight 1200kg
Power Supply AC110-220V 50/60HZ
Max Power 1500W
Industrial PC I5 CPU, 8G RAM, 500GB SSD
Displayer 24" HDMI LCD
Safety Features
  • Radiation Leakage: No leakage, international standard: ≤1μSv/h
  • Lead Glass Observation Window: Transparent lead glass window shields radiation to observe inner status
  • Window and Back Door Safety Interlock: X-ray tube powers off immediately when window or door is opened
  • Electromagnetic Safety Switch: Locks when X-ray is on, preventing window opening
  • Emergency Stop: Located next to operation position for immediate power cutoff
  • Tube Protection: Software prevents leaving without closing X-ray tube
Software Capabilities
Function Module Description
Operation Complete control via keyboard and mouse
X-ray Tube Control Mouse-click activation with real-time voltage/current display and adjustment
Status Bar Visual indication of interlock, pre-heat, and X-ray status
Image Effect Adjustment Brightness, contrast and gain adjustment for optimal imaging
Product List Save and recall inspection parameters for efficiency
Navigation Window Click-to-move table positioning with camera guidance
Motion Axis Status Real-time coordinate display
Inspection Result Organized display of measurement results (voids rate, distance, area)
Speed Control Adjustable movement speed for each axis
Voids Rate Measurement Automatic calculation of solder ball voids with NG/OK indication
Parameters Adjustment Customizable grayscale threshold, pixel, contrast, and size filtering
Add Voids Manually Manual void designation via polygon or free-form drawing
Save Parameters Store measurement settings for product-specific inspection
Distance Measurement Point-to-baseline distance calculation
Distance Rate Percentage ratio measurement for through-hole soldering rate
Angle Measurement Angle calculation between defined rays
Radius Measurement Circle measurement for round components like solder balls
Perimeter Measurement Square component measurement for length, width and area
Automatic Inspection Programmable inspection points with automatic image capture
Array Inspection Grid-based automatic inspection for regular patterns
Automatic Identification Feature-based position recognition and measurement
Application Examples
PCB x ray inspection machine with 5
BGA Solder Bridge
PCB x ray inspection machine with 5
BGA Solder Voids
PCB x ray inspection machine with 5
PCB Through-Hole
PCB x ray inspection machine with 5
IC Voids and Gold Wire
PCB x ray inspection machine with 5
LED Solder Voids
PCB x ray inspection machine with 5
LED Gold Wire Crack
PCB x ray inspection machine with 5
Capacitor
PCB x ray inspection machine with 5
Inductor
PCB x ray inspection machine with 5
Sensor
PCB x ray inspection machine with 5
Thyristor Surge Suppressors
PCB x ray inspection machine with 5
Fiberglass
PCB x ray inspection machine with 5
Cable
PCB x ray inspection machine with 5
Diode
PCB x ray inspection machine with 5
Steel Pipe Welding Gap
PCB x ray inspection machine with 5
Automotive Electronics
