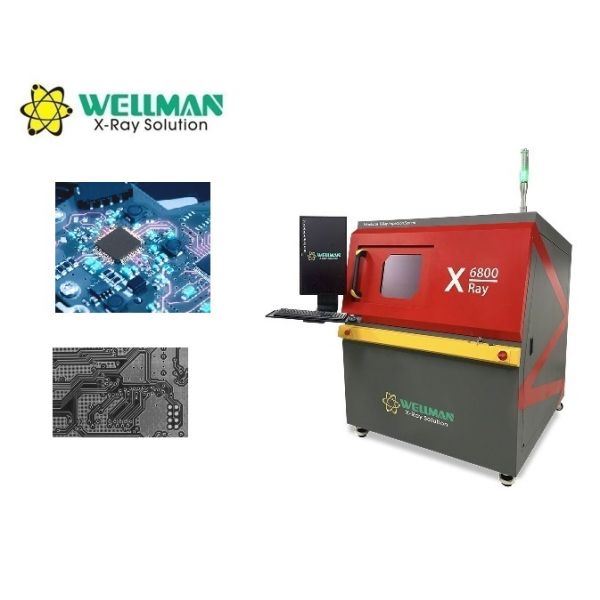

Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Specifications
Brand Name :
WELLMAN
Model Number :
X6800
Certification :
CE,ISO9001,FDA
Place of Origin :
China
Payment Terms :
T/T
Delivery Time :
7 work days
Packaging Details :
Wooden case
MOQ :
1
Supply Ability :
Worldwide supply
Warranty :
12 Months
Application :
SMT PCB PKG LED Electronics Battery Harness Cultural Assets etc
Color :
Red,Green, Yellow,Gray,White
Description
Microfocus X-Ray Inspection System with Oversized Stage and 10KG Capacity Load
Key Advantages
  • Speed adjustable 5-axis linkage system
  • New generation 5" HD digital flat panel detector
  • 530*530mm table with 10KG load capacity
  • FPD tilts up to 60° without sacrificing magnification
  • Automatic navigation window
  • Programmable inspection procedures for automated batch inspection
  • Closed type X-ray tube with over 10,000 hours lifetime
Working Principle
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Working principle diagram of 5-axis semiconductor inspection equipment
Hardware Parameters
X-ray Source
TypeClosed, microfocus
Max Tube Voltage90kV
Max Tube Current200μA
Focal Spot Size5μm
FunctionAuto preheat
Flat Panel Detector
Effective Area130mm*130mm
Pixel Size85μm
Resolution1536*1536
Frame Rate20fps
Tiltable Angle60°
Table
Size530mm*530mm
Detectable Area500mm*500mm
Max Load10kg
Equipment Specifications
MagnificationGeometry 200X | System 1500X
Inspection SpeedMax 3.0s/point
Dimensions1360mm (L) * 1365mm (W) * 1730mm (H)
Weight1200kg
Power SupplyAC110-220V 50/60HZ
Max Power1500W
Industrial PCI5 CPU, 8G RAM, 500GB SSD
Displayer24" HDMI LCD
Safety Features
Radiation LeakageNo leakage
Lead Glass Observation WindowTransparent lead glass window shields radiation to observe inner status
Window and Back Door Safety InterlockAutomatic X-ray power off when opened
Electromagnetic Safety SwitchLocks observation window when X-ray is active
Emergency StopLocated near operation position for immediate power cutoff
Tube ProtectionPrevents software exit without proper X-ray tube shutdown
Core Operations
Function ModuleKeyboard and mouse complete all operations
X-ray Tube ControlMouse-click activation with real-time voltage/current display and adjustable parameters
Status BarVisual indicators for interlock status, pre-heat status, and X-ray status
Image Effect AdjustmentAdjustable brightness, contrast and gain for optimal imaging
Product ListSave and recall inspection parameters for improved efficiency
Navigation WindowClick-to-move table positioning with camera guidance
Motion Axis StatusReal-time coordinate display
Inspection ResultOrganized display of measurement results including voids rate, distance, area
Speed ControlAdjustable movement speed for each axis (slow, normal, fast)
Voids Rate Measurement
Automatic CalculationRectangle-based solder ball analysis with automatic void detection and NG/OK indication
Parameters AdjustmentCustomizable grayscale threshold, pixel, contrast, and size filtering parameters
Add Voids ManuallyPolygon or free-form drawing for manual void inclusion
Save ParametersStore and recall measurement parameters for consistent product inspection
Additional Measurement Functions
DistanceVertical distance measurement from point to baseline
Distance RatePercentage ratio calculation for through-hole soldering rate measurement
AngleAngle measurement between defined rays
RadiusCircle measurement for round components with circumference, area and radius calculation
PerimeterSquare component measurement with length, width and area calculation
Automatic Inspection
Manual SettingCustom inspection point positioning with automatic inspection and image saving
ArrayAutomated inspection of regular patterns using row and column configuration
Automatic IdentificationFeature-based automatic position identification with measurement and image capture
Application Examples
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
BGA Solder Bridge
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
BGA Solder Voids
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
PCB Through-Hole
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
IC Voids and Gold Wire
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
LED Solder Voids
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
LED Gold Wire Crack
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Capacitor
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Inductor
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Sensor
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Thyristor Surge Suppressors
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Fiberglass
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Cable
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Diode
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Steel Pipe Welding Gap
Microfocus x ray inspection system with 530x530mm Oversized Stage and 10KG Load Capacity
Automotive Electronics
