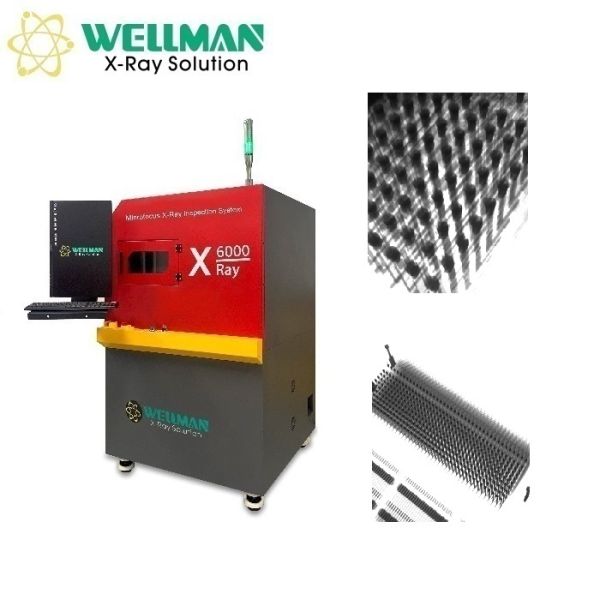

Microfocus X-Ray Inspection System X6000
Advanced electronics X-ray machine featuring a large 420×420mm inspection table for comprehensive component analysis.
Working Principle
Electronics X Ray Machine Designed with Large 420 by 420 Millimeter Table
Key Advantages
  • Closed type X-ray tube with over 10,000 hours lifetime (maintenance-free)
  • New generation 5" HD digital flat panel detector (FPD)
  • Optional 360° rotary jig for multi-angle inspection
  • Automatic navigation window - table moves to clicked position
  • 420×420mm table with 15KG load capacity
  • Speed adjustable 3-axis linkage system
  • Intuitive operation with only 2 hours training required
  • Programmable inspection procedures for automated batch inspection
Hardware Specifications
X-ray Source
Type Closed, microfocus
Max tube voltage 90kV
Max tube current 200μA
Focal spot size 5μm
Function Auto preheat
Flat Panel Detector
Effective area 130mm×130mm
Pixel size 85μm
Resolution 1536×1536
Frame rate 20fps
Table Specifications
Size 420mm×420mm
Detectable area 400mm×400mm
Max load 15kg
Equipment Specifications
Magnification Geometry 150X
System Magnification 1500X
Inspection speed Max 3.0s/point
Dimensions 1100mm (L)×1000mm (W)×1600mm(H)
Weight 1000kg
Power supply AC110-220V 50/60HZ
Max power 1300W
Industrial PC Intel I5 CPU, 8G RAM, 240GB SSD
Displayer 24"HDMI LCD
Software Capabilities
Operation Interface
Keyboard and mouse can complete all operations with intuitive controls.
X-ray Tube Control
Mouse-click X button to toggle X-ray on/off. Real-time display of tube voltage and current with multiple adjustment methods.
Status Monitoring
Visual status bar indicates interlock status, pre-heat status, and X-ray status with red/green flashing indicators.
Image Adjustment
Freely adjust brightness, contrast and gain for optimal image quality and inspection results.
Product List Management
Save inspection parameters (Z-axis position, brightness, contrast, gain) for efficient repeat inspections.
Navigation Window
Camera captures table image - click anywhere to automatically move table to selected position.
Motion Control
Real-time coordinate display with adjustable movement speeds (slow, normal, fast) for each axis.
Voids Rate Measurement
Automatic calculation of voids rate, solder ball area, circumference, and NG/OK status indication.
Parameter Adjustment
Customizable grayscale threshold, pixel, contrast, and size filtering parameters for accurate results.
Manual Void Addition
Draw polygons or free-form shapes to manually add voids to calculations.
Measurement Functions
Comprehensive tools including distance, distance rate, angle, perimeter, and radius measurements.
Automated Inspection
Manual point setting, array-based inspection, and automatic feature recognition for batch processing.
