Specifications
Max tube voltage :
90kV
Focal spot size :
5μm
Brand Name :
WELLMAN
Model Number :
X6000
Certification :
CE FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Description

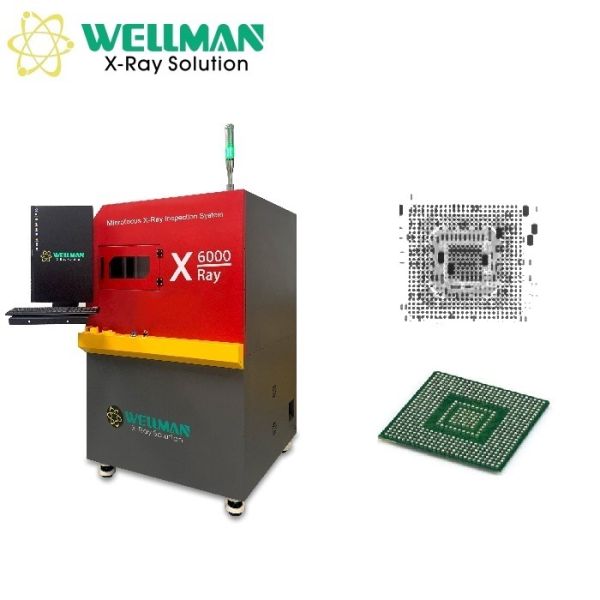

Automated Microfocus Electronics X-Ray Inspection System
Automated X-Ray Inspection System with New Generation 5 HD Digital Flat Panel Detector
Microfocus X-Ray Inspection System X6000
Working Principle
Automated Microfocus Electronics X Ray Inspection System For Pricise Inspection and Time Saving
Hardware Specifications
X-ray Source
TypeClosed, microfocus
Max tube voltage90kV
Max tube current200μA
Focal spot size5μm
FunctionAuto preheat
Flat Panel Detector
Effective area130mm×130mm
Pixel size85μm
Resolution1536×1536
Frame rate20fps
Table Specifications
Size420mm×420mm
Detectable area400mm×400mm
Max load15kg
Equipment Specifications
MagnificationGeometry: 150X
System: 1500X
Inspection speedMax 3.0s/point
Dimensions1100mm (L)×1000mm (W)×1600mm(H)
Weight1000kg
Power supplyAC110-220V 50/60HZ
Max power1300W
Industrial PCIntel I5 CPU, 8G RAM, 240GB SSD
Displayer24"HDMI LCD
Key Advantages
  • Closed type X-ray tube with over 10,000 hours lifetime (maintenance-free)
  • New generation 5" HD digital flat panel detector (FPD)
  • Optional 360° rotary jig for multi-angle inspection
  • Automatic navigation window - table moves to clicked position
  • 420×420mm table with 15KG load capacity
  • Speed adjustable 3-axis linkage system
  • Intuitive operation with only 2 hours training required
  • Programmable inspection procedures for automated batch inspection
Software Capabilities
Operation Module
Keyboard and mouse can finish all operations
X-ray Tube Control
Using mouse to click the X button can turn on or off the X-ray. The real-time tube voltage and current value will display beside, users can click up and down button, or drag the slider, or type to adjust.
Status Bar
Indicates the interlock status, pre-heat status, and X-ray status by flashing alternately red and green.
Image Effect Adjustment
The brightness, contrast and gain of the image can be adjusted freely to achieve a satisfactory result.
Product List
Users can save the inspection parameters such as Z-axis position, brightness, contrast and gain, and can directly call the parameters when inspecting the same product, to improve the inspection efficiency.
Navigation Window
After the camera takes a photo of the table, click anywhere in the photo, the table will move to the place you click and display on the screen.
Motion Axis Status
Display real-time coordinates.
Inspection Result
The measurement results (voids rate, distance, area, etc., set by users) display in order.
Speed Control
The movement speed of each axis can be adjusted to slow, normal and fast.
Voids Rate Measurement
Automatic calculation: Click on two points to determine a rectangle. The software automatically finds and measures the edge of the solder ball in the rectangle, the pad and the internal voids, and can get the data of the voids rate, the area of the solder ball, the circumference, the biggest void's rate, the length and the width, and indicates NG or OK by red and green.
Parameters Adjustment
Users can adjust the grayscale threshold, pixel, contrast, size filtering and other parameters to get accurate results of automatic calculation.
Add Voids Manually
Users can draw a polygon or a free figure and calculate it as a void into the void rate.
Save Parameters
Users can save parameters such as grayscale threshold, pixel, contrast, size filtering and other parameters, and can directly call the parameters when detecting the same product, to improve the detection efficiency.
Measurement Functions
FunctionDescription
DistanceClick the A and B points to set as the baseline, then click the C point to measure the vertical distance from the C point to the baseline.
Distance RateMostly used to measure the soldering rate of the through-hole. Set one more point "D" than the distance. Divide the vertical distance from the D point to baseline by the vertical distance of the C point, to obtain the percentage ratio of the vertical distance of D to C.
AngleClick the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays.
PerimeterMostly used to measure square components, click two points to determine a square, measure the length, width and area.
RadiusMostly used to measure round components such as solder balls. Click three points to determine a circle and measure the circumference, area and radius.
Automatic Inspection
MethodDescription
Manual SettingUsers can set any positions on the table as inspection points, the software will automatically inspect and save the picture.
ArrayFor the regular inspection points, users only need to set two of the inspection points and the number of rows and columns, the software will automatically inspect each point and save pictures.
Automatic IdentificationFor inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image.
Application Examples
Automated Microfocus Electronics X Ray Inspection System For Pricise Inspection and Time SavingAutomated Microfocus Electronics X Ray Inspection System For Pricise Inspection and Time Saving
