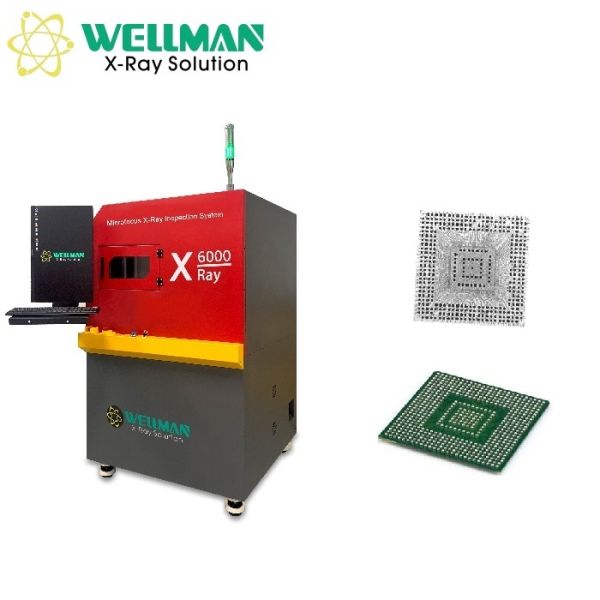

1300W Automated X Ray Inspection System For PCB/ BGA and Other Components Accurate Defect Detection
1300W Automated X Ray Inspection System For PCB/ BGA and Other Components Accurate Defect Detection
1300W Automated X Ray Inspection System For PCB/ BGA and Other Components Accurate Defect Detection
1300W Automated X Ray Inspection System For PCB/ BGA and Other Components Accurate Defect Detection
1300W Automated X Ray Inspection System For PCB/ BGA and Other Components Accurate Defect Detection
1300W Automated X Ray Inspection System For PCB/ BGA and Other Components Accurate Defect Detection
Specifications
Focal spot size :
5μm
Max tube voltage :
90kV
Brand Name :
WELLMAN
Model Number :
X6000
Certification :
CE FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Description
1300W Automated X-Ray Inspection System For PCB/BGA and Other Components
System Overview

Automated X-Ray Inspection System with New Generation 5 HD Digital Flat Panel Detector - Microfocus X-Ray Inspection System X6000

Working Principle
1300W Automated X Ray Inspection System For PCB/ BGA and Other Components Accurate Defect Detection
Software Capabilities
Function Module Operation
X-ray tube control Mouse click to turn X-ray on/off. Real-time display of tube voltage and current. Adjust via buttons, slider, or direct input.
Status bar Displays interlock status, pre-heat status, and X-ray status with red/green flashing indicators.
Image effect adjustment Adjust brightness, contrast and gain for optimal image quality.
Product list Save inspection parameters (Z-axis position, brightness, contrast, gain) for efficient repeat inspections.
Navigation window Click anywhere in table photo to move table to selected position.
Motion axis status Display real-time coordinates.
Inspection result Display measurement results (voids rate, distance, area, etc.) in order.
Speed control Adjust movement speed of each axis to slow, normal, or fast.
Voids rate measurement Automatic calculation of solder ball edges, pads, and internal voids with NG/OK indicators.
Parameters adjustment Adjust grayscale threshold, pixel, contrast, size filtering for accurate results.
Add voids manually Draw polygons or free figures to calculate as voids in void rate.
Save parameters Save measurement parameters for efficient repeat detection.
Other measurement functions Distance, distance rate, angle, radius, perimeter measurements for various component types.
Automatic inspection Manual setting, array, and automatic identification modes for efficient batch inspection.
Key Advantages
  • Closed type X-ray tube with over 10,000 hours lifetime (maintenance-free)
  • New generation 5" HD digital flat panel detector (FPD)
  • Automatic navigation window - table moves to clicked position
  • 420×420mm table with 15KG load capacity
  • Speed adjustable 3-axis linkage system
  • Programmable inspection procedures for automated batch inspection
  • Optional 360° rotary jig for multi-angle inspection
  • Intuitive operation with only 2 hours training required
Application Examples
1300W Automated X Ray Inspection System For PCB/ BGA and Other Components Accurate Defect Detection 1300W Automated X Ray Inspection System For PCB/ BGA and Other Components Accurate Defect Detection
Hardware Specifications
X-ray Source: Closed, microfocus
Max tube voltage: 90kV
Max tube current: 200μA
Focal spot size: 5μm
Function: Auto preheat
Flat Panel Detector:
Effective area: 130mm×130mm
Pixel size: 85μm
Resolution: 1536×1536
Frame rate: 20fps
Table Specifications:
Size: 420mm×420mm
Detectable area: 400mm×400mm
Max load: 15kg
Equipment Specifications:
Magnification: Geometry 150X, System 1500X
Inspection speed: Max 3.0s/point
Dimensions: 1100mm (L)×1000mm (W)×1600mm(H)
Weight: 1000kg
Power supply: AC110-220V 50/60HZ
Max power: 1300W
Industrial PC: Intel I5 CPU, 8G RAM, 240GB SSD
Displayer: 24"HDMI LCD
