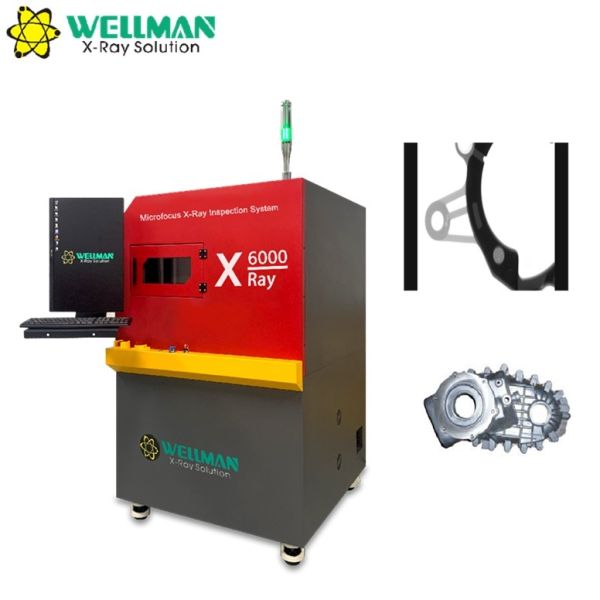

200μA Electronics X Ray Inspection System With 420mm×420mm Work Table
200μA Electronics X Ray Inspection System With 420mm×420mm Work Table
Specifications
Brand Name :
WELLMAN
Model Number :
X6000
Certification :
CE, FDA
Place of Origin :
CHINA
MOQ :
1
Price :
24000-34000 USD
Payment Terms :
T/T
Delivery Time :
10 days
Packaging Details :
Wooden case
Type :
Closed, microfocus
Max tube voltage :
90kV
Max tube current :
200μA
Focal spot size :
5μm
Effective area :
130mm*130mm
Description
X-Ray Inspection System X6000 (5μm) Auto Navigation Accurately Detects Electronic Component Defects
Key Advantages
  • Enclosed X-ray tube boasting over 10,000 hours of service life (no maintenance required)
  • Auto-navigation window – table shifts to the clicked position
  • New-generation 5-inch high-definition digital flat panel detector (FPD)
  • 420×420mm work table with 15KG load capacity
  • Optional 360° rotary jig for multi-angle inspection
  • Intuitive operation with only 2 hours training required
  • Speed adjustable 3-axis linkage system
  • Programmable inspection procedures for automated batch inspection
Working Principle
200μA Electronics X Ray Inspection System With 420mm×420mm Work Table
Technical Specifications
X-ray Source
Type Closed, microfocus
Max tube voltage 90kV
Max tube current 200μA
Focal spot size 5μm
Function Auto preheat
Flat Panel Detector
Effective area 130mm×130mm
Pixel size 85μm
Resolution 1536×1536
Frame rate 20fps
Work Table
Size 420mm×420mm
Detectable area 400mm×400mm
Max load 15kg
Equipment Parameters
Magnification Geometry 150X | System 1500X
Inspection speed Max 3.0s/point
Dimensions 1100mm (L) × 1000mm (W) × 1600mm (H)
Weight 1000kg
Power supply AC110-220V 50/60HZ
Max power 1300W
Industrial PC Intel I5 CPU, 8G RAM, 240GB SSD
Displayer 24" HDMI LCD
Safety Features
Radiation leakage No leakage (≤1μSv/h, international standard)
Lead glass observation window Transparent lead glass shields radiation while allowing internal observation
Window/door safety interlock X-ray automatically powers off when window/door is opened
Electromagnetic safety switch Locks observation window when X-ray is active
Emergency stop Instant power-off button near operation position
Tube protection Software prevents X-ray tube from being left on
Software Capabilities
Basic Operation

Full keyboard and mouse control for all functions, including X-ray tube activation and parameter adjustment.

Image Processing

Adjustable brightness, contrast, and gain to achieve optimal image quality. Save and retrieve inspection parameters for repeated inspections.

Voids Rate Measurement
Automatically calculates solder ball voids rate, area, and circumference, while identifying defects. Supports manual void marking and parameter saving for consistent results.
Measurement Tools
Comprehensive measurement functions including distance, angle, radius, perimeter, and distance rate calculations for through-hole soldering analysis.
Automated Inspection

Three modes available: manual point setting, array pattern for regular points, and automatic feature recognition to enable efficient batch processing.

Application Examples
200μA Electronics X Ray Inspection System With 420mm×420mm Work Table 200μA Electronics X Ray Inspection System With 420mm×420mm Work Table
