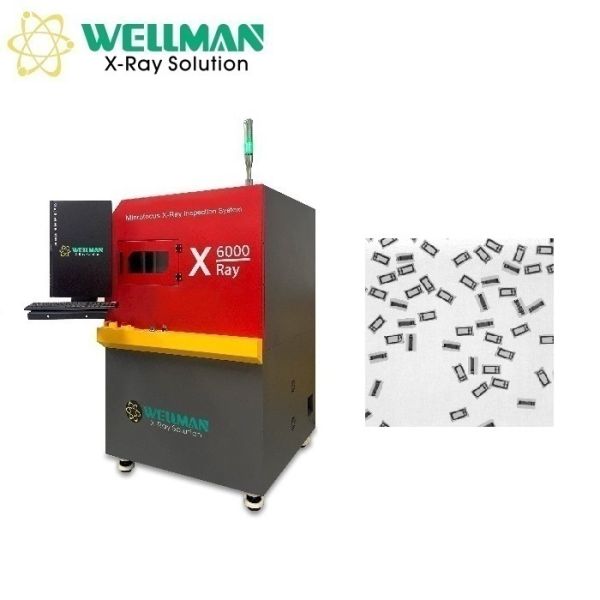

Electronics X Ray Machine with Microfocus Closed Tube for Precise Inspection
Electronics X Ray Machine with Microfocus Closed Tube for Precise Inspection
Specifications
Brand Name :
WELLMAN
Model Number :
X6000
Certification :
CE FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Type :
Closed, microfocus
Max tube voltage :
90kV
Max tube current :
200μA
Focal spot size :
5μm
Effective area :
130mm*130mm
Description
Microfocus X-Ray Inspection System X6000
Advanced electronics X-ray machine with microfocus closed tube technology for precise industrial inspection applications.
Working Principle
Electronics X Ray Machine with Microfocus Closed Tube for Precise Inspection
Key Advantages
  • Closed type X-ray tube with over 10,000 hours lifetime (maintenance-free)
  • New generation 5" HD digital flat panel detector (FPD)
  • Optional 360° rotary jig for multi-angle inspection
  • Automatic navigation window - table moves to clicked position
  • 420×420mm table with 15KG load capacity
  • Speed adjustable 3-axis linkage system
  • Intuitive operation with only 2 hours training required
  • Programmable inspection procedures for automated batch inspection
Hardware Specifications
X-ray Source
TypeClosed, microfocus
Max tube voltage90kV
Max tube current200μA
Focal spot size5μm
FunctionAuto preheat
Flat Panel Detector
Effective area130mm×130mm
Pixel size85μm
Resolution1536×1536
Frame rate20fps
Table Specifications
Size420mm×420mm
Detectable area400mm×400mm
Max load15kg
Equipment Specifications
MagnificationGeometry: 150X | System: 1500X
Inspection speedMax 3.0s/point
Dimensions1100mm (L)×1000mm (W)×1600mm(H)
Weight1000kg
Power supplyAC110-220V 50/60HZ
Max power1300W
Industrial PCIntel I5 CPU, 8G RAM, 240GB SSD
Displayer24"HDMI LCD
Software Capabilities
Operation Interface
Complete system control via keyboard and mouse for all operations.
X-ray Tube Control
Mouse-click activation with real-time display of tube voltage and current values. Adjustable via click buttons, slider drag, or direct input.
Status Monitoring
Visual status bar indicates interlock status, pre-heat status, and X-ray status with alternating red and green flashing.
Image Enhancement
Adjustable brightness, contrast and gain parameters for optimal image quality.
Product Management
Save inspection parameters (Z-axis position, brightness, contrast, gain) for efficient repeat inspections.
Navigation System
Camera-captured table overview allows click-to-move positioning with real-time coordinate display.
Speed Control
Adjustable movement speed for each axis with slow, normal, and fast settings.
Voids Rate Measurement
  • Automatic calculation of voids rate, solder ball area, circumference, and dimensions
  • NG/OK indication with red and green color coding
  • Adjustable grayscale threshold, pixel, contrast, and size filtering parameters
  • Manual void addition via polygon or free-form drawing
  • Parameter saving for consistent product inspection
Measurement Functions
DistanceVertical distance measurement from point to baseline
Distance RatePercentage ratio measurement for through-hole soldering rate
AngleAngle measurement between defined rays
PerimeterSquare component measurement for length, width and area
RadiusRound component measurement for circumference, area and radius
Automated Inspection
  • Manual setting: Set any table positions as inspection points
  • Array inspection: Automatic inspection of regular grid patterns
  • Automatic identification: Feature-based position recognition and measurement
Application Examples
Electronics X Ray Machine with Microfocus Closed Tube for Precise Inspection Electronics X Ray Machine with Microfocus Closed Tube for Precise Inspection
