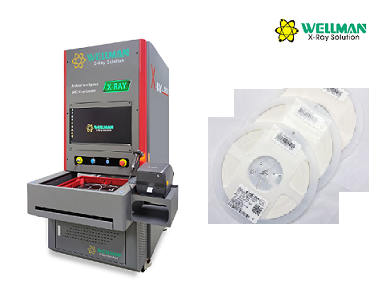

Intelligent x ray parts counter supporting 7'' to 15'' reels or other SMD materials
Intelligent x ray parts counter supporting 7'' to 15'' reels or other SMD materials
Specifications
Brand Name :
WELLMAN
Model Number :
XC - 01
Certification :
CE,ISO9001,FDA
Place of Origin :
China
Payment Terms :
T/T
Packaging Details :
Wooden case
MOQ :
1
Delivery Time :
7 work days
Supply Ability :
Worldwide supply
Description
Cloud Based Intelligent X-Ray Counting System with Real Time Algorithm Update
Advanced cloud-based X-ray counting system featuring real-time algorithm updates for superior component counting accuracy and efficiency.
Working Principle
Intelligent x ray parts counter supporting 7'' to 15'' reels or other SMD materials
Key Advantages
  • Advanced Management: Support for MES, ERP, WMS, and other management systems
  • Ultrafast Counting Speed: Counts four 7" reels or one 15" (380mm) reel in less than 10 seconds
  • Batch Processing: Supports maximum 17" (430mm) reel capacity
  • Automated Workflow: Auto scans codes and printing labels
  • AI Technology: Permanently updated AI deep learning algorithm
Speed and Accuracy Performance
Reel Size Parts Size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s
Equipment Specifications
X-ray Source
Type Closed, microfocus
Max Tube Voltage 80kV
Max Tube Current 700μA
Focal Spot Size 30μm
Flat Panel Detector
Pixel Size 139μm
Resolution 3072 * 3072
Effective Area 430mm * 430mm
Type Super definition digital FPD
Reel/Tray Counting
Max Size 17" (430mm)
Max Thickness 88mm
Min Parts Size 01005
Speed 7-10s
Accuracy 01005 ≥ 99.98%, 0201 & above ≥ 99.99%
Equipment
Dimensions 1000mm (L) * 1300mm (W) * 1820mm (H)
Weight 500kg
Power Supply AC110-220V 50/60HZ
Max Power 800W
Industrial PC I7 CPU, 16G RAM, 256G SSD+4T HDD
Display 24" HDMI LCD
Additional Functions
Auto Code Scanning
Barcode and QR code
Label Printing
Automatic printing when user takes out a reel
Counting Record
Inquiry by time range, work order number
Management System Connection
MES, ERP, WMS etc.
Mode Switching
No need to switch single/multi reel mode
Work Order No.
Yes
Safety Features
Radiation Leakage
No leakage
Back Door Safety Interlock
X-ray tube powers off immediately when back door opens; prevents X-ray activation when open
Anti-pinch
Safety light curtain covers entire drawer; stops immediately when obstruction detected
Emergency Stop
Front-mounted emergency stop button for immediate power cutoff
AI Deep Learning Algorithm
Our counting software uses a powerful artificial intelligence deep learning algorithm. No need to bind components to algorithm, we use AI to automatically identify components and automatically apply algorithm.
The algorithm can learn the counted component data, such as:
  • Aspect ratio
  • The angle of each corner of the component
  • Slope between components from inside to outside
  • Deformation of component images from the inside to the outside
Intelligent x ray parts counter supporting 7'' to 15'' reels or other SMD materials
Cloud Database Integration
All Wellman X-ray counters are compatible with our cloud database system. Machine data and images automatically upload to the cloud, devices seamlessly retrieve the latest database updates.
Our engineers continuously refine algorithms based on collected data from all machines, regular algorithm updates pushed to the database for customer use.
Intelligent x ray parts counter supporting 7'' to 15'' reels or other SMD materials
Sample Images
Intelligent x ray parts counter supporting 7'' to 15'' reels or other SMD materials Intelligent x ray parts counter supporting 7'' to 15'' reels or other SMD materials Intelligent x ray parts counter supporting 7'' to 15'' reels or other SMD materials Intelligent x ray parts counter supporting 7'' to 15'' reels or other SMD materials Intelligent x ray parts counter supporting 7'' to 15'' reels or other SMD materials Intelligent x ray parts counter supporting 7'' to 15'' reels or other SMD materials
