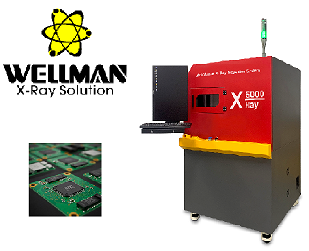

Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Specifications
Brand Name :
WELLMAN
Model Number :
X-Ray X-6000
Certification :
CE,FDA,ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5-8 work days
Packaging Details :
wooden case
Description
Multifunctional Tiltable Inspection Equipment for LED/PCBA/BGA — X-6000
Advanced X-ray inspection system designed for comprehensive quality control of electronic components including LED, PCBA, and BGA assemblies.
Key Advantages
  • Closed type X-ray tube with over 10,000 hours lifetime, maintenance-free operation
  • New generation 5" HD digital flat panel detector (FPD)
  • Automatic navigation window - table moves to clicked positions
  • 420*420mm table with 15KG load capacity
  • Speed adjustable 3-axis linkage system
  • Programmable inspection procedures for automated batch inspection
  • Optional 360° rotary jig for multi-angle inspection
  • User-friendly operation with minimal training requirement (2 hours)
Hardware Specifications
X-ray Source
TypeClosed, microfocus
Max Tube Voltage90kV
Max Tube Current200μA
Focal Spot Size5μm
FunctionAuto preheat
Flat Panel Detector
Effective Area130mm*130mm
Pixel Size85μm
Resolution1536*1536
Frame Rate20fps
Table Specifications
Size420mm*420mm
Detectable Area400mm*400mm
Max Load15kg
Equipment Parameters
MagnificationGeometry 150X | System 1500X
Inspection SpeedMax 3.0s/point
Dimensions1100mm (L) * 1000mm (W) * 1600mm (H)
Weight1000kg
Power SupplyAC110-220V 50/60HZ
Max Power1300W
Industrial PCIntel I5 CPU, 8G RAM, 240GB SSD
Displayer24" HDMI LCD
Safety Features
Radiation LeakageNo leakage, international standard: ≤1μSv/h
Lead Glass Observation WindowTransparent lead glass window shields radiation to observe the inner status
Window and Back Door Safety InterlockX-ray tube powers off immediately when window or back door is opened
Electromagnetic Safety SwitchLocks when X-ray is on, preventing window opening
Emergency StopLocated next to operation position for immediate power cutoff
Tube ProtectionPrevents software exit without proper X-ray tube closure

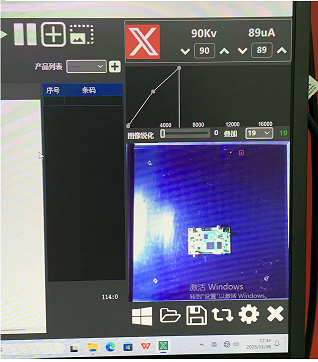

Software Capabilities
Core Functions
Function ModuleOperation
X-ray Tube ControlMouse-click activation with real-time voltage/current display and adjustment
Status BarVisual indication of interlock, pre-heat, and X-ray status
Image Effect AdjustmentAdjustable brightness, contrast and gain for optimal imaging
Product ListSave and recall inspection parameters for efficiency
Navigation WindowClick-to-move table positioning with camera guidance
Motion Axis StatusReal-time coordinate display
Inspection ResultOrganized display of measurement data with pass/fail indicators
Speed ControlAdjustable movement speed for each axis (slow, normal, fast)
Voids Rate Measurement
Automatic CalculationRectangle-based solder ball analysis with void detection and NG/OK status
Parameters AdjustmentCustomizable grayscale threshold, pixel, contrast, and size filtering
Add Voids ManuallyPolygon or free-form void addition for comprehensive analysis
Save ParametersStore and reuse measurement settings for consistent results
Additional Measurement Functions
DistanceVertical distance measurement from point to baseline
Distance RatePercentage ratio calculation for through-hole soldering rate
AngleAngle measurement between defined rays
RadiusCircle measurement for round components with circumference and area
PerimeterSquare component measurement with length, width and area
Automated Inspection Modes
Manual SettingCustom inspection point positioning with automatic image capture
ArrayGrid-based automatic inspection with row/column configuration
Automatic IdentificationFeature-based position recognition with automated measurement
Working Principle
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Application Examples
Comprehensive inspection capabilities for various electronic components and materials:
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
BGA Solder Bridge
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
BGA Solder Voids
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
PCB Through-Hole
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
IC Voids and Gold Wire
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
LED Solder Voids
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
LED Gold Wire Crack
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Capacitor
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Inductor
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Sensor
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Thyristor Surge Suppressors
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Fiberglass
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Cable
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Diode
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Steel Pipe Welding Gap
Multifunctional Tiltable X-ray Inspection Equipment for LED/PCBA/BGA
Automobile Electronics
