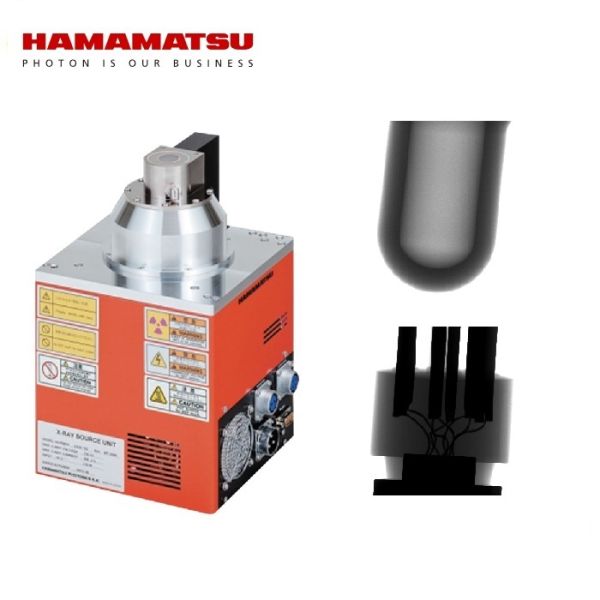

Hamamatsu X Ray Source Designed for X Ray CT and In Line Inspection Applications
Hamamatsu X Ray Source Designed for X Ray CT and In Line Inspection Applications
Specifications
Brand Name :
Hamamatsu
Model Number :
L11831-01
Place of Origin :
JAPAN
MOQ :
1
Payment Terms :
T/T
Packaging Details :
carton
Target Material :
Tungsten
Communication :
Interface: RS-232C(9-pin D-sub connector)
Description
Hamamatsu X-Ray Source for X-Ray CT and In-Line Inspection
90 kV Microfocus X-Ray Source
High-performance X-ray source designed for precision inspection applications requiring exceptional image clarity and resolution.
Applications
  • Non-destructive Inspection
  • X-ray CT
  • In-line X-ray Inspection
Applicable Objects
  • Electronic components
  • Printed circuit boards
  • Plastic components
  • Metal components
Key Features
  • Focal Spot Size: 15 μm (at 90kV)
  • 5 μm focal spot of sealed type X-ray tube enables sharp, clear X-ray images even at high magnification
  • Easy Handling: Fully operable from external PC
  • Serial Port Control (RS-232C): Integrated package includes sealed X-ray tube, high-voltage power supply, and control function
Technical Specifications
X-Ray Control Unit
Function Tube Voltage and Tube Current Preset / Auto Warm-up -
Protection Interlock -
External Control RS-232C -
Applicable OS Windows 2000 Professional, XP Professional -
Computer Operating Conditions CPU: Intel Pentium or Higher, Memory: 64MB or More -
General Specifications
Input Voltage (DC) +24 V
Power Consumption (Max.) 96 W
Operating Ambient Temperature +10 to +40 ℃
Storage Temperature 0 to +50 ℃
Operating and Storage Humidity Below 85% (No Condensation) %
Weight Approx. 10 kg
Conformance Standards CE (EMC: IEC61326-1, Group 1, Class A) -
Operation Continuous -
High Voltage Power Supply Built-in -
X-Ray Tube Specifications
X-ray Tube Sealed Type -
X-ray Tube Cooling Method Convection Cooling -
X-ray Tube Window Material/Thickness Beryllium/150 μm
Target Material Tungsten -
Tube Voltage Operational Range 20 to 90 kV
Tube Current Operational Range 10 to 200 (8 W Max.) μA
Maximum Output 8 W
X-ray Focal Spot Size 7 (5μm at 4W) μm
X-ray Beam Angle (Coned) 39 degrees
Focus to Object Distance (FOD) 9.5 mm
Dimensional Outline
Hamamatsu X Ray Source Designed for X Ray CT and In Line Inspection Applications
Dimensional Outline Diagram
Tube Current Operational Range
Hamamatsu X Ray Source Designed for X Ray CT and In Line Inspection Applications
Tube Current Operational Range Chart
