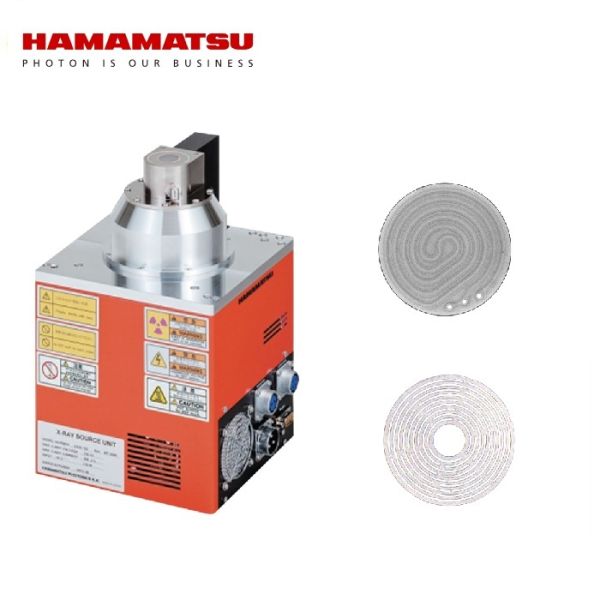

Microfocus X-ray Source with 15μm Focal Spot
Microfocus X-ray Source with 15μm Focal Spot
Specifications
Brand Name :
Hamamatsu
Model Number :
L11831-01
Place of Origin :
JAPAN
MOQ :
1
Payment Terms :
T/T
Place of Origin: :
JAPAN
Packaging Details :
carton
Target Material :
Tungsten
Communication method :
Interface: RS-232C(9-pin D-sub connector)
Description
90 kV Microfocus X-ray Source
Key Features
  • Focal Spot Size: 15 μm (at 90kV)
  • 5 μm focal spot of the sealed type X-ray tube delivers sharp, high-magnification X-ray images
  • Easy Operation: Fully controllable from external PC
  • Integrated Package: Includes sealed X-ray tube, high-voltage power supply, and control functions with RS-232C serial port
Applications
  • Non-destructive inspection
  • X-ray CT imaging
  • In-line X-ray inspection systems
Applicable Objects
  • Electronic components
  • Printed circuit boards
  • Plastic components
  • Metal components
Technical Specifications
Parameter Description/Value Unit
Input Voltage (DC) +24 V
Power Consumption (Max.) 96 W
Operating Ambient Temperature +10 to +40 ℃
Storage Temperature 0 to +50 ℃
Operating and Storage Humidity Below 85% (No Condensation) %
Weight Approx. 10 kg
Conformance Standards CE (EMC: IEC61326-1, Group 1, Class A) -
Operation Continuous -
High Voltage Power Supply Built-in -
X-ray Tube Specifications
Parameter Description/Value Unit
X-ray Tube Type Sealed Type -
Cooling Method Convection Cooling -
Window Material/Thickness Beryllium/150 μm
Target Material Tungsten -
Tube Voltage Range 20 to 90 kV
Tube Current Range 10 to 200 (8 W Max.) μA
Maximum Output 8 W
X-ray Focal Spot Size 7 (5μm at 4W) μm
X-ray Beam Angle (Coned) 39 degrees
Focus to Object Distance (FOD) 9.5 mm
Control Specifications
Parameter Description Unit
Function Tube Voltage and Current Preset / Auto Warm-up -
Protection Interlock -
External Control RS-232C -
Applicable OS Windows 2000 Professional, XP Professional -
Computer Requirements CPU: Intel Pentium or Higher, Memory: 64MB or More -
