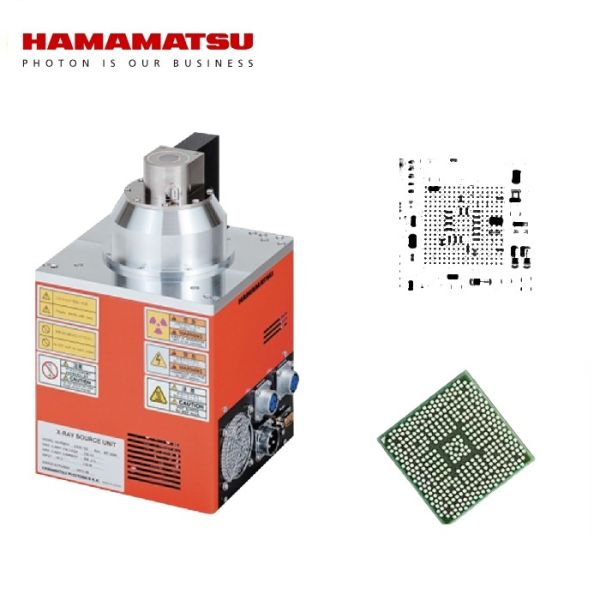

90kV Microfocus X-ray Source with 15μm Focal Spot
90kV Microfocus X-ray Source with 15μm Focal Spot
Specifications
Brand Name :
Hamamatsu
Model Number :
L11831-01
Place of Origin :
JAPAN
MOQ :
1
Payment Terms :
T/T
Place of Origin: :
JAPAN
Packaging Details :
carton
Target Material :
Tungsten
Communication method :
Interface: RS-232C(9-pin D-sub connector)
Description
90 kV MICROFOCUS X-RAY SOURCE
Features
  • Focal Spot Size: 15 μm (at 90kV)
  • The focal spot of 5 μm of the sealed type X-ray tube enables sharp and clear X-ray images even at high magnification
  • Easy Handling: Fully operable from an external PC
  • Serial Port Control (RS-232C): One package of a sealed type X-ray tube, a high-voltage power supply and a control function
Applications
Non-destructive Inspection
X-ray CT
In-line X-ray Inspection
Applicable Objects:
  • Electronic components
  • Printed circuit boards
  • Plastic components
  • Metal components
Specifications
GENERAL
Parameter Description/Value Unit
Input Voltage(DC) +24 V
Power Consumption(Max.) 96 W
Operating Ambient Temperature +10 to+40 ℃
Storage Temperature 0 to +50 ℃
Operating and Storage Humidity Below 85(No Condensation) %
Weight Approx.10 kg
Conformance Standards CE(EMC:IEC61326-1,Group1.Class A) 一
Operation Continuous 一
High Voltage Power Supply Built-in 一
X-RAY TUBE
Parameter Description/Value Unit
X-ray Tube Sealed Type 一
X-ray Tube Cooling Method Convection Cooling __
X-ray Tube Window Matenal/Thickness Berylium/150 μm
Target Material Tungsten 一
Tube Voltage OperationalRange 20 to 90 kV
Tube Current Operational Range① 10 to 200 (8 WMax.) μA
Maximum Output 8 W
X-ray Focal Spot Size 7(5μm at 4W) μm
X-ray Beam Angle (Coned) 39 degrees
Focus to Object Distance (FOD) 9.5 mm
X-RAY CONTROL PART
Parameter Description Unit
Function Tube Voltage and Tube Current Preset /Auto Warm-up 一
Protection Interlock 一
External Control RS-232C 一
Applicable OS Windows2000 Professional,XP Professional __
Computer Operating Conditions CPU:IntelPentium or Higher,Memory:64MB or More 一

Tube Current Operational Range
90kV Microfocus X-ray Source with 15μm Focal Spot
Dimensional Outline
90kV Microfocus X-ray Source with 15μm Focal Spot
