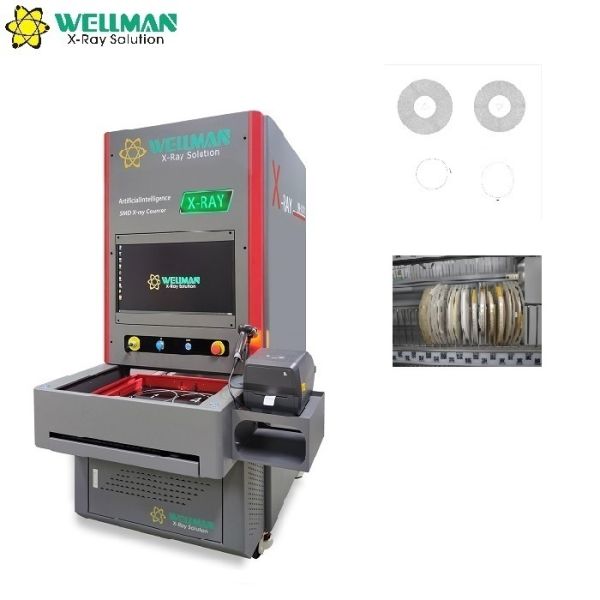

Electronic Component X Ray Counter MES ERP Integration Maintenance Free
Electronic Component X Ray Counter MES ERP Integration Maintenance Free
Specifications
Brand Name :
WELLMAN
Model Number :
XC-01
Certification :
CE,ISO9001,FDA
Place of Origin :
China
MOQ :
1
Price :
20000-30000 USD
Payment Terms :
T/T
Delivery Time :
7 work days
Packaging Details :
Wooden case
Dimensions :
50 x 40 x 30 cm
Resolution :
3072*3072
Screen Size :
15 inches
Connectivity :
USB, Ethernet
Power Source :
Electricity
Warranty :
1 year
Type :
Closed,microfocus
Certifications :
CE, ISO，FDA
Display Type :
Digital
Weight :
10 kg
Technology :
X Ray Imaging
X-ray tube voltage :
80KV
Max tube voltage :
80kv
Effective area :
430mm*430mm
Pixel size :
139μm
Supply Ability :
Worldwide supply
Description
Electronic Component X Ray Counter MES ERP Integration Maintenance Free
Product Overview

Wellman Microfocus X-Ray Component Counter XC-01 featuring 80kV Maintenance-Free Tube with advanced AI counting capabilities.

Key Advantages
  • AI deep learning algorithm with permanently free updates
  • 17" super definition digital flat panel detector (FPD)
  • Ultrafast counting: processes four 7" reels or one 15" (380mm) reel in less than 10 seconds
  • Accommodates reels/trays up to 17" (430mm) with moisture barrier bag compatibility
  • Integrated barcode scanning and label printing capabilities
  • Seamless compatibility with MES ERP WMS and other management systems
  • 80kV closed X-ray tube: Extended lifespan and maintenance-free performance
Technical Specifications
X-ray Source
Type Integrated, microfocus
Max tube voltage 80kV
Max tube current 700μA
Focal spot size 30μm
Flat Panel Detector
Type Super definition digital FPD
Effective area 430mm * 430mm
Pixel size 139μm
Resolution 3072 * 3072
Counting Performance
Max reel size 17" (430mm)
Max thickness 88mm
Min parts size 01005
Counting speed 7-10 seconds
Accuracy 01005 ≥ 99.98% | 0201 & above ≥ 99.99%
Speed and Accuracy Metrics
Reel size Parts size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s
AI Deep Learning Algorithm

Our counting software utilizes a powerful artificial intelligence deep learning algorithm that automatically identifies components without manual binding. The system continuously improves by learning from counted component data including:

  • Aspect ratio analysis
  • Measurement of component corner angles
  • Analysis of the slope between components
  • Tracking of component image deformation
Electronic Component X Ray Counter MES ERP Integration Maintenance Free
AI Algorithm Visualization
Working Principle
Electronic Component X Ray Counter MES ERP Integration Maintenance Free
System Working Principle
Cloud Database Integration

Each Wellman X-ray counter connects to our cloud database, automatically uploading machine data and images while downloading the latest database updates. Our engineering team continuously optimizes algorithms using collected data, delivering regular updates to enhance counting accuracy and expand component coverage.

Electronic Component X Ray Counter MES ERP Integration Maintenance Free
Cloud Integration System
Sample Images
Electronic Component X Ray Counter MES ERP Integration Maintenance Free
X-Ray Parts Counter in Operation
Electronic Component X Ray Counter MES ERP Integration Maintenance Free
Counted Components Detail
Electronic Component X Ray Counter MES ERP Integration Maintenance Free
Counting Results Interface
