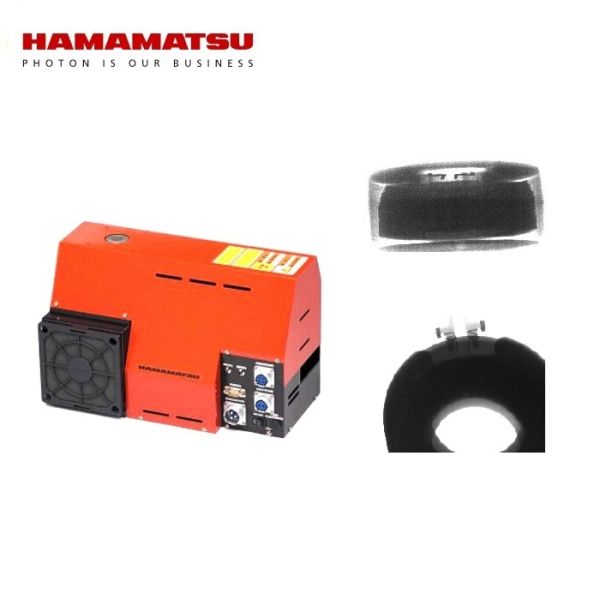

Hamamatsu X Ray Tube L9631 High Stability In Non Destructive Testing
Hamamatsu X Ray Tube L9631 High Stability In Non Destructive Testing
Specifications
Brand Name :
Hamamatsu
Model Number :
L9631
Place of Origin :
JAPAN
MOQ :
1
Payment Terms :
T/T
Packaging Details :
carton
Target Material :
Tungsten
Communication method :
Interface: RS-232C(9-pin D-sub connector)
Description

110 kV MICROFOCUS X-RAY SOURCEL9631


FEATURES

High Output:800μA(50 W)
It allows continuous maximum output.
High Stability
Serial Port Control(RS-232C)
One package of a sealed type X-ray tube,a high-voltage powersupply and a control function.
Easy Handling
Fully operable from an external PC.


APPLICATIONS
Non-destructive Inspection
In-line X-ray Inspection
X-ray CT


[Applicable Objects]
Electronic component

Printed circuit board

Plastic component

Metal component
Food

Beverage

Medicine
Bioproduct


GENERAL

Parameter Description/Value Unit
Input Voltage (AC) 100 to 240(100V/200V Automatic Selection),
50 Hz/60 Hz		 V
Power Consumption(Max.) 240 W
Operating Ambient Temperature +10 to+40 ℃
Storage Temperature 0 to +50 ℃
Operating and Storage Humidity Below 85(No Condensation) %
Weight Approx.10 kg
Conformance Standards CE EMC:IEC61326-1,Group1,Class A]
Safety:IEC61010-1		 一
Operation Continuous 一
High Voltage Power Supply Built-in 一


X-RAY TUBE

Parameter Description/Value Unit
X-ray Tube Sealed Type 一
X-ray Tube Cooling Method Convection Cooling 一
X-ray Tube Window Material/Thickness Beryllium/200 μm
Target Material Tungsten 一
Tube Voltage Operational Range 40 to 110 kV
Tube Current Operational Range① 10 to 800 (50 W Max.) μA
Maximum Output 50 W
X-ray Focal Spot Size 15 to 80 μm
X-ray Beam Angle(Max.) 62 degrees
Focus to Object Distance(FOD) 16.8 mm


X-RAY CONTROL PART

Parameter Description Unit
Function Tube Voltage and Tube Current Preset/Auto Warm-up 一
Protection Interlock 一
External Control RS-232C 一
Applicable OS Windows⑧2000 Professional,XP Professional 一
Computer Operating Conditions CPU:Intel Pentium or Higher,Memory:64 MB or More 一
