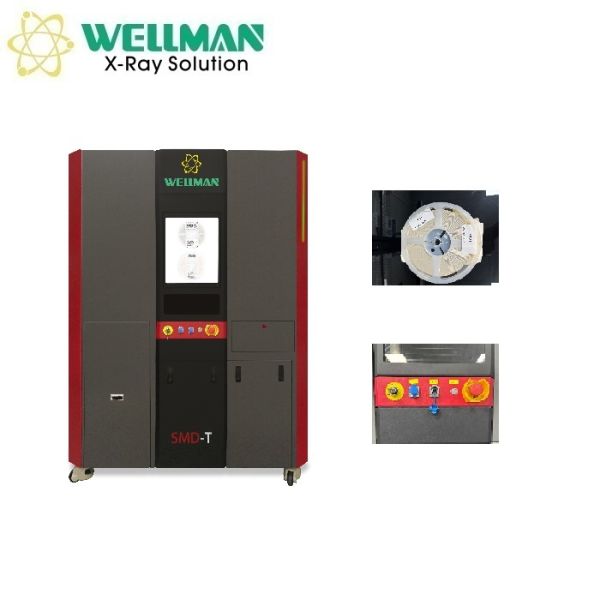

1120 Reels Smart SMD Tower SMD-T With Barcode / QR Code Compatibility
1120 Reels Smart SMD Tower SMD-T With Barcode / QR Code Compatibility
Specifications
Brand Name :
WELLMAN
Model Number :
Smart SMD Tower SMD-T
Certification :
CE FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Code scanning :
Barcode and QR code
Material type :
SMD reel
Power supply :
220VAC, 16A
Power :
3000W
Displayer :
17” touch screen
Description

Smart SMD Tower SMD-T

Workflow

1120 Reels Smart SMD Tower SMD-T With Barcode / QR Code Compatibility

Hardware Specifications

Feature Specification
Storage Operation Automatic in/out with barcode/QR code scanning
Material Type SMD reel
Batch Loading Supported
Standard Capacity 750 reels (7" & 10mm reel)
Expanded Capacity 1120 reels (7" & 10mm reel)
Cycle Time 12-15s (standard), 12-16s (expanded)
Reel Dimensions 5mm min height, 25mm max height (customizable)
Max Weight 3KG (customizable)
System Features Multi-tower connection, WMS management, temperature/humidity monitoring
Physical Dimensions 1450mm (L) * 1900mm (W) * 2050mm (H), expandable to 2700mm height
Weight 1500KG (standard), 2000KG (expanded)
Power Requirements 220VAC, 16A, 3000W

Software Capabilities

Function Category Features
Inventory Control
Intelligent inventory management with location freezing
Inventory verification and automatic updates
Scan-and-load functionality for reel placement
Warehouse Management
Material Management
Transform unique codes for new materials and update master inventory
Tower Configuration
Setup new SMD towers and location mapping
Supplier/Customer Info
Comprehensive management of supplier and customer data
Material Handling
System initialization on power-up
Single reel in/out operations with scanning
Batch loading and production order processing
Expired reel locking to prevent production use
Database Functions
Location parameter recording and status tracking
Complete in/out records for full traceability
Operation logging for all system activities
Key Advantages
  • Ultra-high space utilization with standard capacity of approximately 750 reels (expandable to 1120 reels)
  • Batch automatic scanning and loading (12 seconds per reel) with barcode/QR code compatibility
  • Customizable configurations with full software technical support
  • Comprehensive inventory monitoring to ensure accuracy and prevent production interruptions
  • Fully automated storage system supporting 7" to 15" reels
  • Automated data backup and traceability through scanning
  • Controlled environment with reel life monitoring capabilities
  • Seamless integration with MES, ERP, WMS and other management systems
