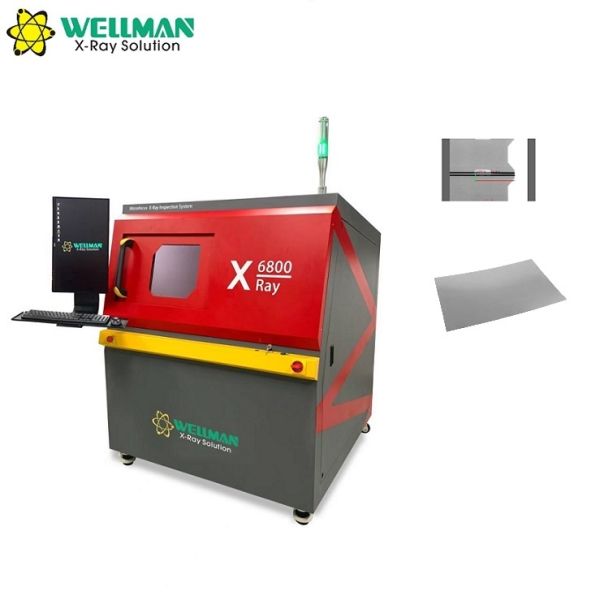

The Wellman X-ray Inspection System X6800 delivers advanced PCB/SMT defect detection, featuring a maintenance-free X-ray tube with over 10,000 hours of operation.

• 5-axis linkage system with adjustable speed
• Closed-type X-ray tube featuring over 10,000 hours of lifetime and maintenance-free operation
• New-generation 5" HD digital flat panel detector (FPD)
• Inspection procedures that can be programmed to enable automated batch inspection
• Intuitive operation with quick defect identification (2-hour training required)
• Tiltable FPD (60° range) maintains magnification without compromise
• Automatic navigation window - table moves to clicked locations
• 530*530mm table with 10KG load capacity

• Electromagnetic safety switch locks when X-ray is active
• Emergency stop button near operation position
• Tube protection prevents leaving software without closing X-ray
• Radiation leakage: No leakage (≤1μSv/h, international standard)
• Transparent lead glass observation window for safe internal viewing
• Window and back door safety interlock system

• Real-time motion axis coordinate display
• Inspection results display (voids rate, distance, area, etc.)
• Adjustable axis movement speeds (slow/normal/fast)
• Mouse/keyboard controlled X-ray tube operation with real-time voltage/current display
• Status bar showing interlock, pre-heat, and X-ray status
• Adjustable image brightness, contrast and gain
• Product list for saving and recalling inspection parameters
• Navigation window for precise table positioning

• Automatic calculation of solder ball voids with NG/OK indication
• Adjustable grayscale threshold, pixel, contrast, and size filtering
• Manual void addition via polygon/freehand drawing
• Parameter saving for consistent product inspection

• Radius measurement for circular components
• Perimeter measurement for square components
• Distance measurement between points
• Distance rate calculation for through-hole soldering
• Angle measurement between points

• Manual inspection point setting
• Array inspection for regular patterns
• Automatic feature recognition for distinctive inspection points
