High-Output Stable X-Ray Source for X-Ray Inspection & X-Ray CT
High-Output Stable X-Ray Source for X-Ray Inspection & X-Ray CT
Specifications
Brand Name :
Hamamatsu
Model Number :
L9631
Place of Origin :
JAPAN
MOQ :
1
Payment Terms :
T/T
Packaging Details :
carton
Target Material :
Tungsten
Communication method :
Interface: RS-232C(9-pin D-sub connector)
Description
High-Output Stable X-Ray Source for X-Ray Inspection & X-Ray CT
110 kV MICROFOCUS X-RAY SOURCE L9631
FEATURES
  • High Output: 800μA (50 W) - It allows continuous maximum output
  • High Stability
  • Serial Port Control (RS-232C)
  • One package of a sealed type X-ray tube, a high-voltage power supply and a control function
  • Easy Handling
  • Fully operable from an external PC
APPLICATIONS
  • Non-destructive Inspection
  • In-line X-ray Inspection
  • X-ray CT
Applicable Objects
  • Electronic component
  • Printed circuit board
  • Plastic component
  • Metal component
  • Food
  • Beverage
  • Medicine
  • Bioproduct
X-RAY TUBE
Parameter Description/Value Unit
X-ray Tube Sealed Type —
X-ray Tube Cooling Method Convection Cooling —
X-ray Tube Window Material/Thickness Beryllium/200 μm
Target Material Tungsten —
Tube Voltage Operational Range 40 to 110 kV
Tube Current Operational Range 10 to 800 (50 W Max.) μA
Maximum Output 50 W

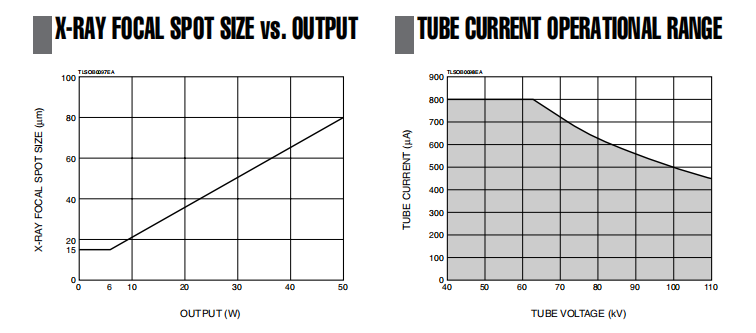

X-ray Focal Spot Size 15 to 80 μm
X-ray Beam Angle (Max.) 62 degrees

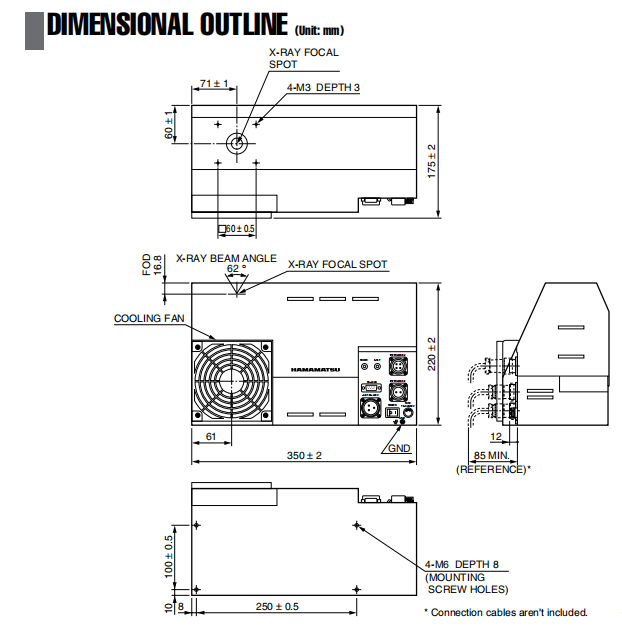

Focus to Object Distance (FOD) 16.8 mm
X-RAY CONTROL PART
Parameter Description Unit
Function Tube Voltage and Tube Current Preset/Auto Warm-up —
Protection Interlock —
External Control RS-232C —
Applicable OS Windows® 2000 Professional, XP Professional —
Computer Operating Conditions CPU: Intel Pentium or Higher, Memory: 64 MB or More —
GENERAL
Parameter Description/Value Unit
Input Voltage (AC) 100 to 240 (100V/200V Automatic Selection), 50 Hz/60 Hz V
Power Consumption (Max.) 240 W
Operating Ambient Temperature +10 to +40 ℃
Storage Temperature 0 to +50 ℃
Operating and Storage Humidity Below 85 (No Condensation) %
Weight Approx. 10 kg
Conformance Standards CE | EMC: IEC61326-1, Group1, Class A
Safety: IEC61010-1		 —
Operation Continuous —
High Voltage Power Supply Built-in —
High-Output Stable X-Ray Source for X-Ray Inspection & X-Ray CT High-Output Stable X-Ray Source for X-Ray Inspection & X-Ray CT High-Output Stable X-Ray Source for X-Ray Inspection & X-Ray CT High-Output Stable X-Ray Source for X-Ray Inspection & X-Ray CT
