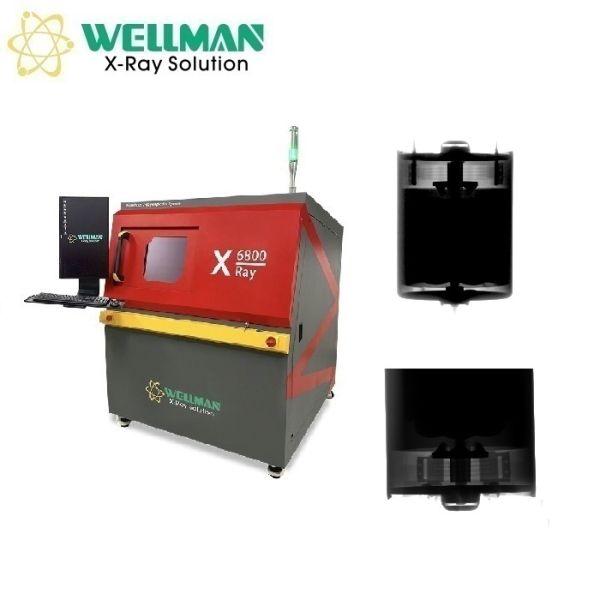

Microfocus X-Ray Inspection System X6800
Advanced PCB X-Ray machine featuring large table size and high load capacity for comprehensive electronic component inspection.
Working Principle
PCB X Ray Machine Providing Large Table Size and Load Capacity Suitable
Key Advantages
  • Closed type X-ray tube with over 10,000 hours lifetime, maintenance-free operation
  • New generation 5" HD digital flat panel detector (FPD) for superior image quality
  • FPD tilts 60° without sacrificing magnification capabilities
  • Automatic navigation window - table moves to clicked position for efficient inspection
  • 530×530mm table with 10KG load capacity for handling various PCB sizes
  • Speed adjustable 5-axis linkage system for precise positioning
  • Programmable inspection procedures for automated high-volume inspection
  • User-friendly operation with comprehensive training completed in just 2 hours
Hardware Specifications
X-ray Source
Type Closed, microfocus
Maximum Tube Voltage 90kV
Maximum Tube Current 200μA
Focal Spot Size 5μm
Function Auto preheat
Flat Panel Detector
Effective Area 130mm × 130mm
Pixel Size 85μm
Resolution 1536 × 1536
Frame Rate 20fps
Tiltable Angle 60°
Inspection Table
Size 530mm × 530mm
Detectable Area 500mm × 500mm
Maximum Load 10kg
Equipment Specifications
Magnification Geometry 200X | System 1500X
Inspection Speed Maximum 3.0s/point
Dimensions 1360mm (L) × 1365mm (W) × 1730mm (H)
Weight 1200kg
Power Supply AC110-220V 50/60HZ
Maximum Power 1500W
Industrial PC I5 CPU, 8G RAM, 500GB SSD
Display 24" HDMI LCD
Safety Features
  • Radiation leakage: No leakage, meets international standard ≤1μSv/h
  • Transparent lead glass observation window for safe internal status monitoring
  • Window and back door safety interlock - X-ray tube powers off immediately when opened
  • Electromagnetic safety switch locks when X-ray is active, preventing window access
  • Emergency stop button located near operation position for immediate power cutoff
  • Tube protection prevents software exit without proper X-ray tube closure
Software Capabilities
Complete operation via keyboard and mouse interface
Function Module Operation
X-ray Tube Control Mouse-click activation, real-time voltage/current display, adjustable via slider or direct input
Status Bar Visual indication of interlock status, pre-heat status, and X-ray status with red/green flashing
Image Effect Adjustment Adjustable brightness, contrast and gain for optimal image quality
Product List Save and recall inspection parameters for improved efficiency with repeat products
Navigation Window Click-to-move functionality - table automatically positions to clicked location
Motion Axis Status Real-time coordinate display for precise positioning
Inspection Results Organized display of measurement results including voids rate, distance, area
Speed Control Adjustable movement speed for each axis (slow, normal, fast)
Voids Rate Measurement Automatic calculation of solder ball voids, area, circumference with NG/OK indication
Additional Measurements Distance, distance rate, angle, radius, perimeter measurements for comprehensive analysis
