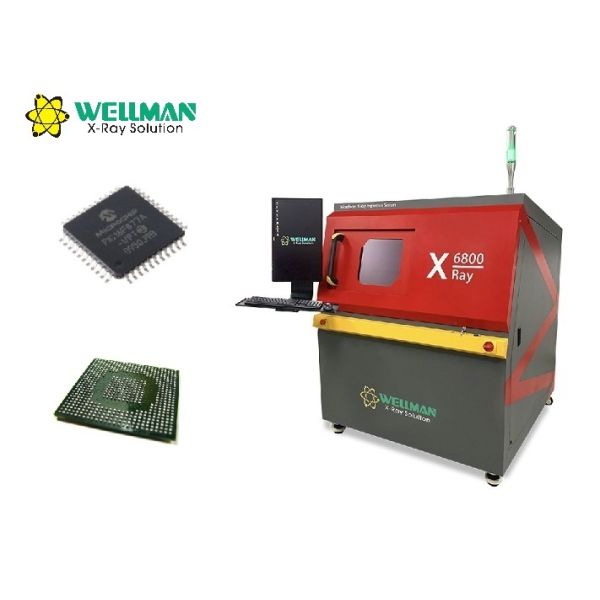

automatic x ray inspection system for electronics defect inspection with oversized table
automatic x ray inspection system for electronics defect inspection with oversized table
Specifications
Brand Name :
WELLMAN
Model Number :
X-Ray X-6800
Certification :
CE,FDA,ISO9001
Place of Origin :
China
Payment Terms :
T/T
Packaging Details :
Wooden case
Max Tube Voltage :
90kV (110kV, 130kV optional)
Focal Spot Size :
5μm (10μm, 4μm, 2μm optional)
Detector Resolution :
1536 × 1536
Table Size :
530mm × 530mm
Max Load :
10kg
Inspection Speed :
Max 3.0 s/point
Description
Automatic X-Ray Inspection System for Electronics Defect Inspection with Oversized Table
Working Principle
automatic x ray inspection system for electronics defect inspection with oversized table
Key Advantages
  • Programmable inspection process for high-volume automatic detection
  • Closed microfocus X-ray tube with over 10,000 hours long service life
  • New 5-inch high-definition digital flat panel detector (FPD) and can tilt 60°
  • Automatic navigation windows: Table moves to the clicked position
  • Oversized 530×530 mm platform with 10 kg load capacity
  • 5-axis linkage system with adjustable speed
  • User-friendly operation: only 2 hours training
Hardware Specifications
Component Parameter Specification
X-ray Source Type Closed, microfocus
Max Tube Voltage 90kV (optional)
Max Tube Current 200μA
Focal Spot Size 5μm (optional)
Flat Panel Detector Effective Area 130mm × 130mm
Pixel Size 85μm
Resolution 1536 × 1536
Frame Rate 20fps
Tiltable Angle 60° (optional)
Table Size 530mm × 530mm
Detectable Area 500mm × 500mm
Max Load 10kg
Equipment Magnification Geometry 200X | System 1500X
Inspection Speed Max 3.0 s/point
Dimensions 1360mm (L) × 1365mm (W) × 1730mm (H)
Weight 1200kg
Power Supply AC110-220V 50/60HZ
Max Power 1500W
Industrial PC I5 CPU, 8G RAM, 500GB SSD
Safety Features
  • Radiation leakage: ≤1 μSv/h
  • Lead glass observation window for safe monitoring
  • Door/window safety interlock: X-ray cuts off when opened
  • Electromagnetic safety lock during operation
  • Emergency stop button near operation area
  • X-ray tube must be turned off before exiting software
Software Capabilities
Function Module Description
X-ray Tube Control Mouse-click activation with real-time voltage/current display and adjustable settings
Image Effect Adjustment Customizable brightness, contrast and gain for optimal imaging results
Product List Management Save and recall inspection parameters for consistent, efficient repeat inspections
Navigation Window Click-to-move functionality for precise table positioning
Voids Rate Measurement Automatic calculation of solder ball voids, area, circumference with NG/OK indicators
Precision Measurement Tools Distance, angle, radius, perimeter and area measurements with customizable parameters
Automated Inspection Manual point setting, array pattern generation, and automatic feature recognition
Application Examples
automatic x ray inspection system for electronics defect inspection with oversized table
BGA Solder Bridge
automatic x ray inspection system for electronics defect inspection with oversized table
BGA Solder Voids
automatic x ray inspection system for electronics defect inspection with oversized table
PCB Through-Hole
automatic x ray inspection system for electronics defect inspection with oversized table
IC Voids and Gold Wire
automatic x ray inspection system for electronics defect inspection with oversized table
LED Solder Voids
automatic x ray inspection system for electronics defect inspection with oversized table
LED Gold Wire Crack
automatic x ray inspection system for electronics defect inspection with oversized table
Capacitor
automatic x ray inspection system for electronics defect inspection with oversized table
Inductor
automatic x ray inspection system for electronics defect inspection with oversized table
Sensor
automatic x ray inspection system for electronics defect inspection with oversized table
Thyristor Surge Suppressors
automatic x ray inspection system for electronics defect inspection with oversized table
Fiberglass
automatic x ray inspection system for electronics defect inspection with oversized table
Cable
automatic x ray inspection system for electronics defect inspection with oversized table
Diode
automatic x ray inspection system for electronics defect inspection with oversized table
Steel Pipe Welding Gap
automatic x ray inspection system for electronics defect inspection with oversized table
Automotive Electronics
