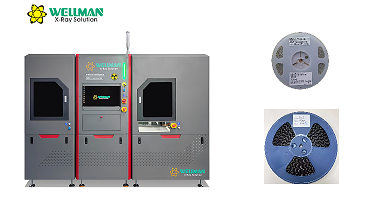

Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system
Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system
Specifications
Brand Name :
WELLMAN
Model Number :
IL-1000
Certification :
CE,ISO9001,FDA
Place of Origin :
China
Payment Terms :
T/T
Delivery Time :
7 work days
Packaging Details :
Wooden case
MOQ :
1
Supply Ability :
Worldwide supply
Description
Inline X-ray Electronic Parts Counter with AI Algorithm and Connected MES/ERP/WMS System
Working Principle
Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system
Workflow Process
  • Loading: Automatic manipulator loading after reel vehicle insertion, supporting 7 to 15 inch reels
  • Max Loading Quantity: 200 reels (7" with 8mm thickness)
  • Barcode Scanning: Comprehensive barcode and QR code scanning capabilities
  • Reel Transfer: Automatic belt transfer system
  • Labelling: Automatic printing and pasting of labels after counting with automatic data upload
  • Unloading: Automatic manipulator placement into reel vehicle
Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system
Key Advantages
X-ray Technology

80kV microfocus X-ray tube with long service life and maintenance-free operation

High-Definition Imaging

17-inch high-definition digital flat panel detector for clear imaging

Ultra-Fast Counting

12 seconds per reel at maximum speed

Versatile Compatibility

Supports 17-inch maximum reel/tray with moisture-proof bag compatibility

AI & System Integration

Free lifelong AI algorithm updates with MES/ERP/WMS compatibility

Operation Modes

Manual/auto dual mode operation with AGV docking and unmanned operation support

Data Management

Comprehensive work order management with counting data statistics and query capabilities

Hardware Specifications
Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system
Safety Features
Radiation Leakage

No leakage (international standard: ≤1μSv/h)

Back Door Safety Interlock

Immediate X-ray tube power cutoff when back door opens, prevents X-ray activation when door is open

Emergency Stop

Front operation position emergency stop button for immediate power cutoff

Performance Specifications
Reel Size Parts Size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 14-15s
7" (180mm) 0201 10000 99.99% 13-15s
7" (180mm) 0402 10000 99.99% 13-15s
10" (254mm) 1206 5000 99.99% 12-15s
15" (380mm) 1206 10000 99.99% 12-15s
AI Deep Learning Algorithm

Our counting software utilizes powerful artificial intelligence deep learning algorithms that automatically identify components without manual algorithm binding. The AI system learns from counted component data including:

  • Aspect ratio analysis
  • Corner angle measurements
  • Slope analysis between components from inside to outside
  • Component image deformation patterns from inside to outside

As counting operations increase, accuracy continuously improves. The system easily handles similar components or larger trays with enhanced precision over time.

Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system
Cloud Database Integration
Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system
Sample Images
Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system
