High precision industrial Xray counter enables fast and accurate SMD component counting
High precision industrial Xray counter enables fast and accurate SMD component counting
Specifications
Brand Name :
WELLMAN
Model Number :
XC - 01
Certification :
CE,ISO9001,FDA
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Wooden case
Delivery Time :
7 work days
Supply Ability :
Worldwide supply
Description
High Precision X‑Ray Counting Machine
Working Principle

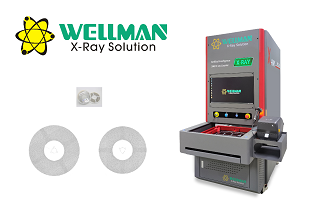

High precision industrial Xray counter enables fast and accurate SMD component counting
Product Advantages
  • 80kV closed type X-ray tube with the longest lifetime (over 10000 hours)
  • Counting four 7" reels or one 15" reel in less than 10 seconds
  • Supports maximum 17" (430mm) reel or tray
  • Simultaneously scans codes and printing labels after counting
  • Permanently free updated AI deep learning algorithm
  • Supports MES, ERP, WMS and other management systems
Equipment Specifications
Flat Panel Detector
Type Super definition digital FPD
Effective Area 430mm × 430mm
Pixel Size 139μm
Resolution 3072 × 3072
X-ray Source
Type Integrated, microfocus
Max Tube Voltage 80kV
Max Tube Current 700μA
Focal Spot Size 30μm
Reel Counting
Max Size 17" (430mm)
Max Thickness 88mm
Min Parts Size 01005
Speed 7-10s
Accuracy 99.99%
Equipment
Dimensions 1000mm (L) × 1300mm (W) × 1820mm (H)
Weight 520kg
Power Supply AC110-220V 50/60HZ
Max Power 800W
Industrial PC I7 CPU, 16G RAM, 256G SSD+4T HDD
Display 24" HDMI LCD
Safety Features
Radiation Leakage No leakage
Back Door Safety Interlock X-ray tube powers off immediately when back door opens
Anti-pinch Safety light curtain covers entire drawer; stops immediately when obstruction detected
Emergency Stop Front-mounted emergency stop button for immediate power cutoff
AI Deep Learning Algorithm

The counting system uses an advanced deep learning algorithm that automatically identifies components without manual binding. It learns component features including aspect ratio, corner angles, internal-external slope, and image deformation to improve accuracy with more usage.

High precision industrial Xray counter enables fast and accurate SMD component counting
Speed and Accuracy Performance
Reel Size Parts Size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s
Cloud Database Integration

All machines connect to a cloud database for data and image upload. The system automatically downloads the latest algorithm updates. Engineers optimize the algorithm using real-world data, continuously improving accuracy and component coverage.

High precision industrial Xray counter enables fast and accurate SMD component counting
Sample Images
High precision industrial Xray counter enables fast and accurate SMD component counting High precision industrial Xray counter enables fast and accurate SMD component counting High precision industrial Xray counter enables fast and accurate SMD component counting High precision industrial Xray counter enables fast and accurate SMD component counting High precision industrial Xray counter enables fast and accurate SMD component counting High precision industrial Xray counter enables fast and accurate SMD component counting

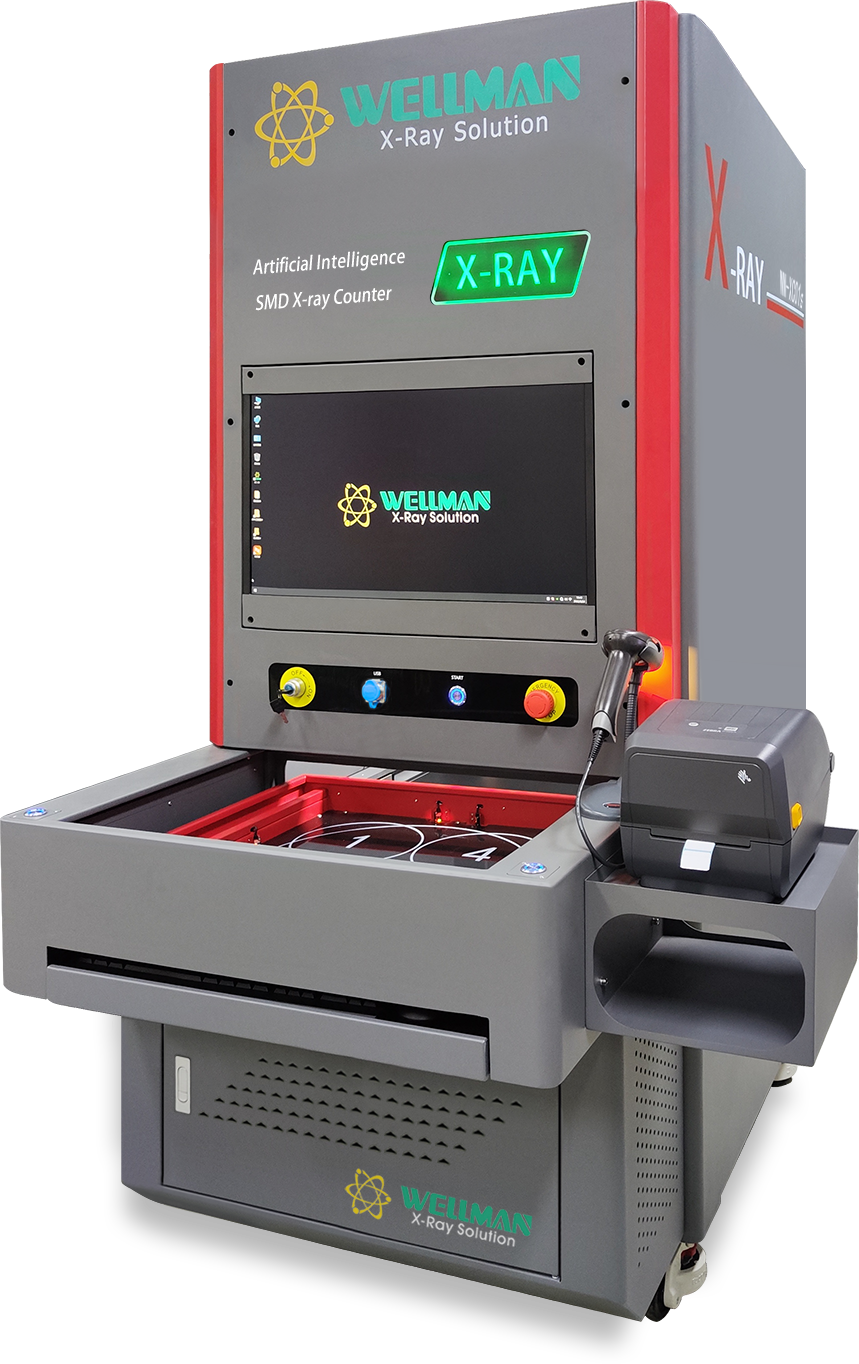

Product Photo
High precision industrial Xray counter enables fast and accurate SMD component counting
