XRay Reel Counter 9999 Accuracy MES ERP WMS Compatible for SMT Line
XRay Reel Counter 9999 Accuracy MES ERP WMS Compatible for SMT Line
Specifications
Brand Name :
WELLMAN
Model Number :
XC-01
Certification :
CE,ISO9001,FDA
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Wooden case
X-ray tube voltage :
80KV
Type :
Closed,microfocus
Max tube voltage :
80kv
Effective area :
430mm*430mm
Pixel size :
139μm
Resolution :
3072*3072
Delivery Time :
7 work days
Supply Ability :
Worldwide supply
Description

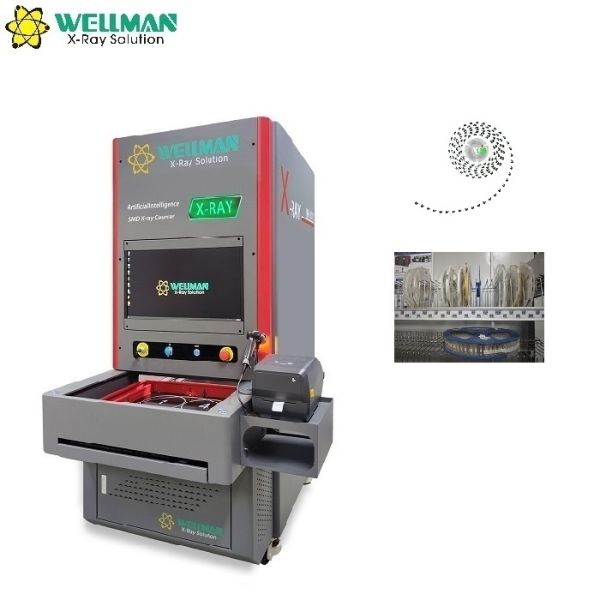

Wellman X-Ray SMD Counter XC-01
High Speed Automatic Component Counting System with MES/ERP/WMS Integration
Product Overview
Wellman X-Ray Reel Counter XC-01 with 17" Super Definition FPD supporting MES/ERP/WMS integration for industrial automation.
Key Advantages
  • 80kV Sealed X-ray Tube: Extended service life with maintenance-free operation
  • 17" Super Definition Digital FPD: High-resolution imaging for accurate component counting
  • Ultrafast Counting Speed: Counts four 7" reels or one 15" (380mm) reel in under 10 seconds
  • Automated Operations: Integrates simultaneous code scanning, counting and label printing
  • Smart Mode: Enables automatic single and multi reel operation with no manual switching required
  • Advanced Tracking: Supports work order management, counting record inquiry and data statistics
  • Large Compatibility: Accommodates reels and trays up to 17 inch (430mm) including moisture barrier bags
  • AI Deep Learning Algorithm: Offers free lifelong updates and seamless integration with MES ERP WMS
Technical Specifications
X-ray Source
Type Integrated, microfocus
Max tube voltage 80kV
Max tube current 700μA
Focal spot size 30μm
Flat Panel Detector
Type Super definition digital FPD
Effective area 430mm × 430mm
Pixel size 139μm
Resolution 3072 × 3072
Reel/Tray Counting
Max size 17" (430mm)
Max thickness 88mm
Min parts size 01005
Speed 7-10s
Accuracy 01005 ≥ 99.98%, 0201 & above ≥ 99.99%
Equipment
Dimensions 1000mm (L) × 1300mm (W) × 1820mm (H)
Weight 580kg
Power supply AC110-220V 50/60HZ
Max power 800W
Industrial PC I7 CPU, 16G RAM, 256G SSD+4T HDD
Displayer 24" HDMI LCD
Safety Features
Radiation leakage No leakage, international standard: ≤1μSv/h
Back door safety interlock Automatic X-ray power off when door opens
Anti-pinch protection Safety light curtain covers entire drawer
Emergency stop Front-mounted emergency power off button
Performance Metrics
Reel Size Parts Size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s
AI Deep Learning Technology
Our counting software utilizes powerful artificial intelligence that automatically identifies components without manual algorithm binding. The system learns from counted component data including:
  • Image deformation tracking
  • Component corner angle measurement
  • Aspect ratio analysis
  • Slope analysis between components
As the system processes an increasing number of components, counting accuracy continues to improve, and the technology can easily adapt to similar components or larger trays.
XRay Reel Counter 9999 Accuracy MES ERP WMS Compatible for SMT Line
Working Principle
XRay Reel Counter 9999 Accuracy MES ERP WMS Compatible for SMT Line
Cloud Database Integration
Every X-ray counter connects to our cloud database for automatic data and image uploads, with continuous algorithm optimization by engineers.
The system's counting accuracy approaches 100% over time, with expanding component type coverage. When encountering new components, the system leverages existing database knowledge for immediate high-efficiency processing.
XRay Reel Counter 9999 Accuracy MES ERP WMS Compatible for SMT Line
Sample Images
XRay Reel Counter 9999 Accuracy MES ERP WMS Compatible for SMT Line XRay Reel Counter 9999 Accuracy MES ERP WMS Compatible for SMT Line XRay Reel Counter 9999 Accuracy MES ERP WMS Compatible for SMT Line
