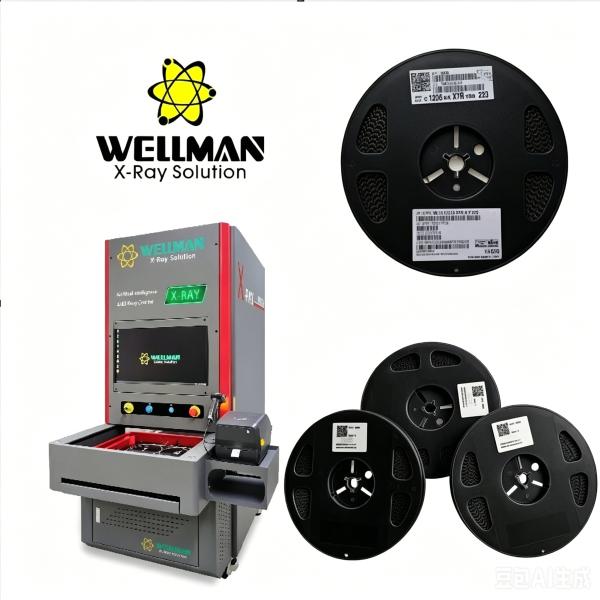

High Precision AI X-Ray Parts Counter for SMT
High Precision AI X-Ray Parts Counter for SMT
Specifications
Brand Name :
WELLMAN
Model Number :
XC-01
Certification :
CE,ISO9001,FDA
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
Worldwide supply
Delivery Time :
7 work days
Packaging Details :
Wooden case
Dimensions :
1000mm (L) * 1300mm (W) * 1820mm (H)
Weight :
580 KG
Power supply :
AC110-220V 50/60HZ
Max power :
800 W
Description
High Precision AI X-Ray Parts Counter for SMT
Advanced X-Ray Counting System for High-Precision SMT Component Inventory Management

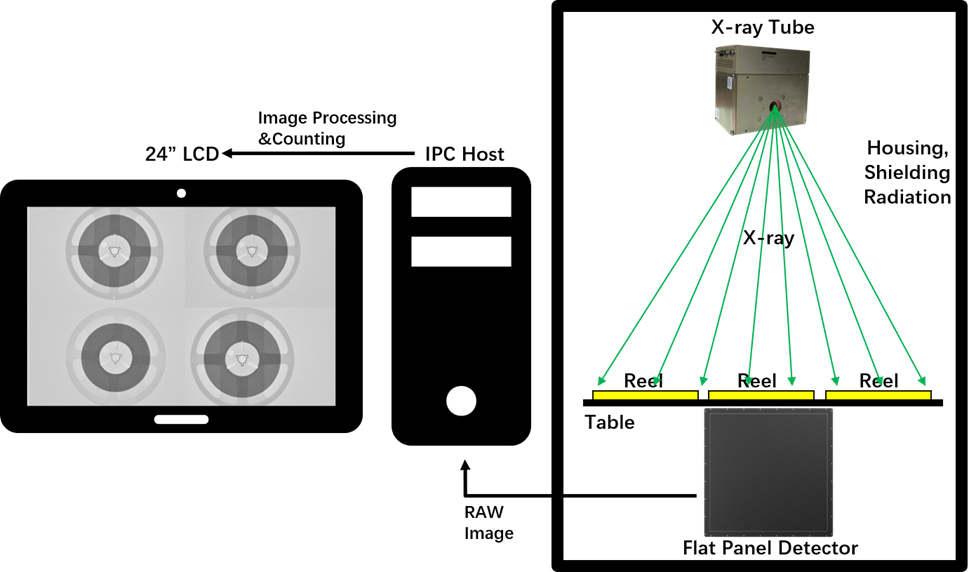

Working Principle
High Precision AI X-Ray Parts Counter for SMT
Key Advantages
  • 80kV closed microfocus X-ray tube: maintenance-free and long service life
  • 17" high-resolution flat-panel detector: clear imaging for accurate counting
  • Fast counting: complete 4×7" reels or 1×15" reel within 10 seconds
  • Wide compatibility: supports reels up to 17", including moisture-barrier packages
  • AI-powered algorithm: free lifelong upgrades, compatible with MES/ERP/WMS integration
  • Automated workflow: simultaneous scanning, counting, and label printing
  • Intelligent recognition: auto-detects single/multi-reel modes without manual switching
  • Traceable data: supports work order binding, with full counting records and reports
Equipment Specifications
X-ray Source
TypeIntegrated, microfocus
Max tube voltage80kV
Max tube current700μA
Focal spot size30μm
Flat Panel Detector
TypeSuper definition digital FPD
Effective area430mm*430mm
Pixel size139μm
Resolution3072*3072
Reel/Tray Counting
Max size17" (430mm)
Max thickness88mm
Min parts size01005
Speed7-10s
Accuracy01005 ≥ 99.98%, 0201 & above ≥ 99.99%
Equipment
Dimensions1000mm (L) * 1300mm (W) * 1820mm (H)
Weight580kg
Power supplyAC110-220V 50/60HZ
Max power800W
Industrial PCI7 CPU, 16G RAM, 256G SSD+4T HDD
Displayer24" HDMI LCD
Additional Functions
Auto code scanningBarcode and QR code
Label printingAutomatic printing when reel is removed
Counting recordInquiry by time range, work order number
Management system connectionMES, ERP, WMS etc.
Mode switchingNo need to switch single/multi reel mode
Work order no.Support work order number recording
Safety Features
Radiation leakageNo leakage, international standard: ≤1μSv/h
Back door safety interlockX-ray tube powers off immediately when door opens
Anti-pinchSafety light curtain stops drawer when obstruction detected
Emergency stopFront-mounted button for immediate power cutoff
Counting Speed and Accuracy
Reel size Parts size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s

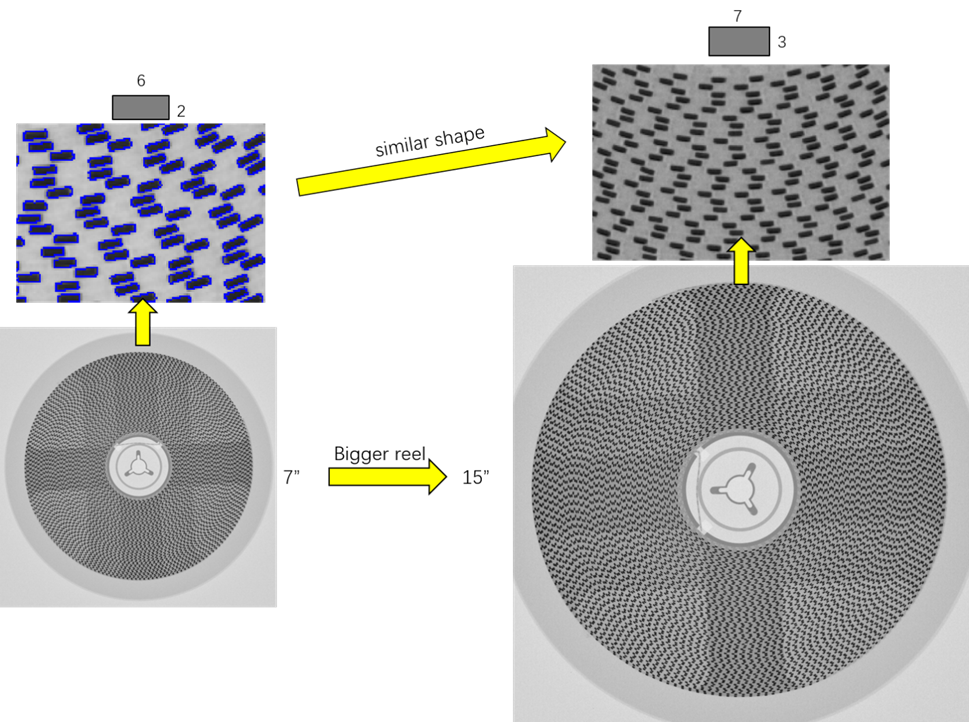

Artificial Intelligence Deep Learning Algorithm
Our counting software utilizes a powerful AI deep learning algorithm that automatically identifies components without manual binding. The system learns from counted component data including:
  • Aspect ratio
  • Corner angles
  • Component slope from inside to outside
  • Image deformation patterns
Accuracy improves with increased counting volume, enabling efficient handling of similar components or larger trays.
High Precision AI X-Ray Parts Counter for SMT

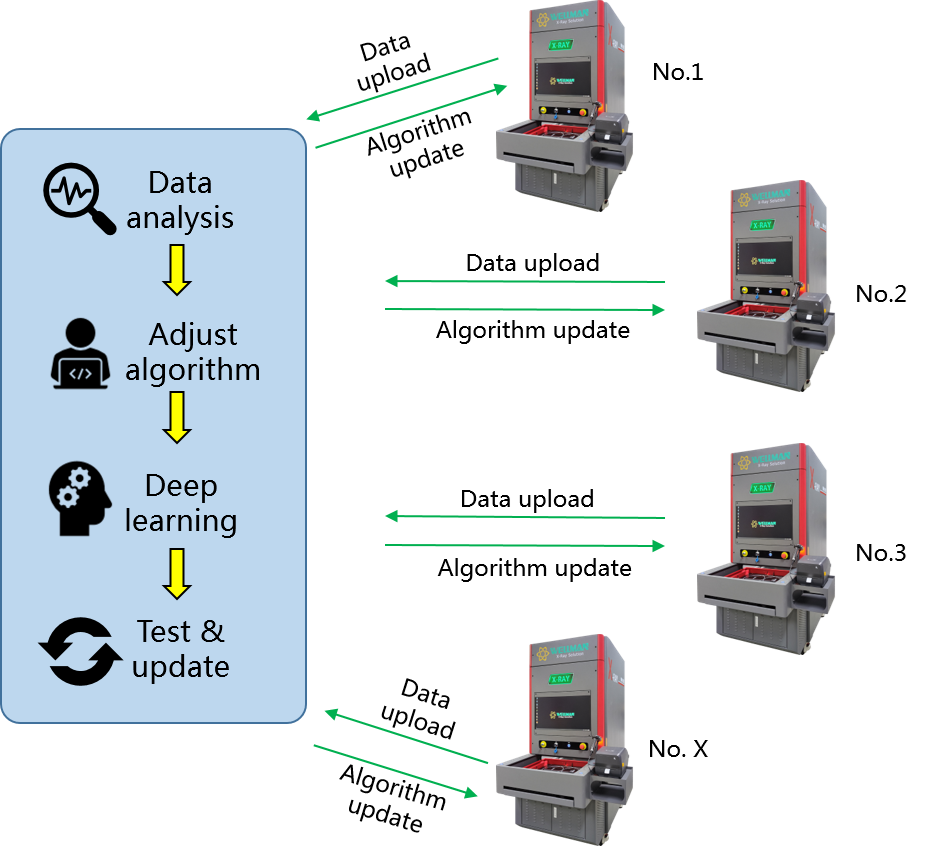

Cloud Database Integration
Every Wellman X-ray counter connects to our cloud database for:
  • Automatic data and image uploads
  • Continuous algorithm optimization by engineers
  • Regular database updates for all customers
This system ensures progressive accuracy improvements and broader component type coverage. When encountering new components, the system leverages existing database matches for immediate high-efficiency counting.
High Precision AI X-Ray Parts Counter for SMT

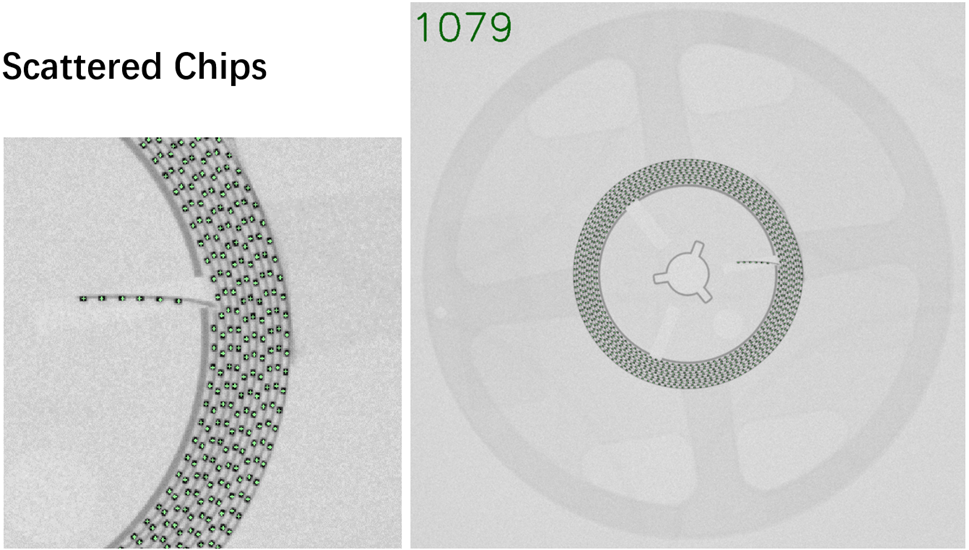

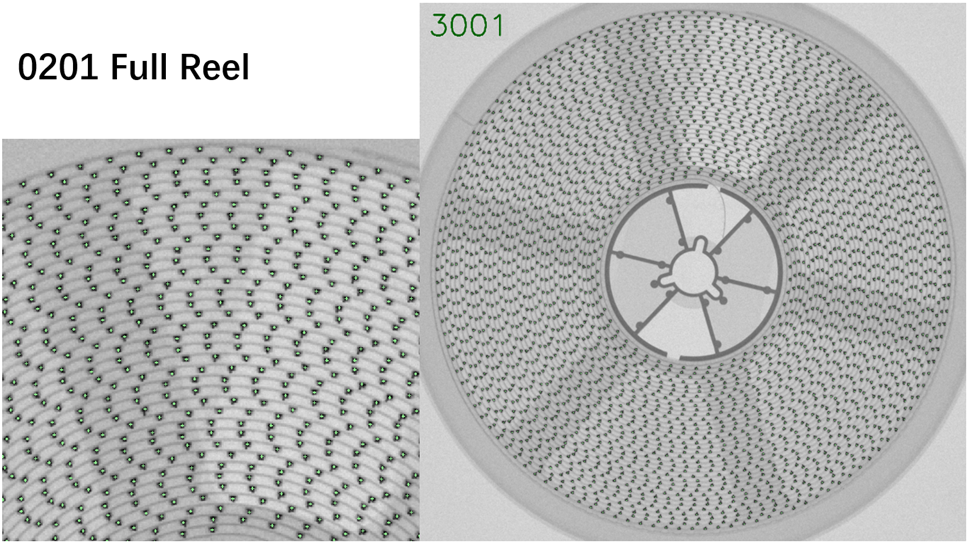

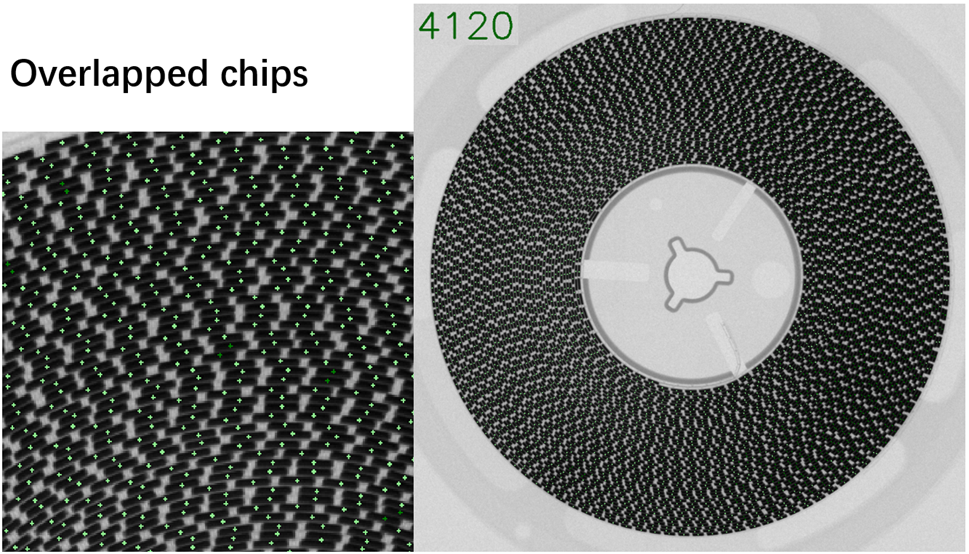

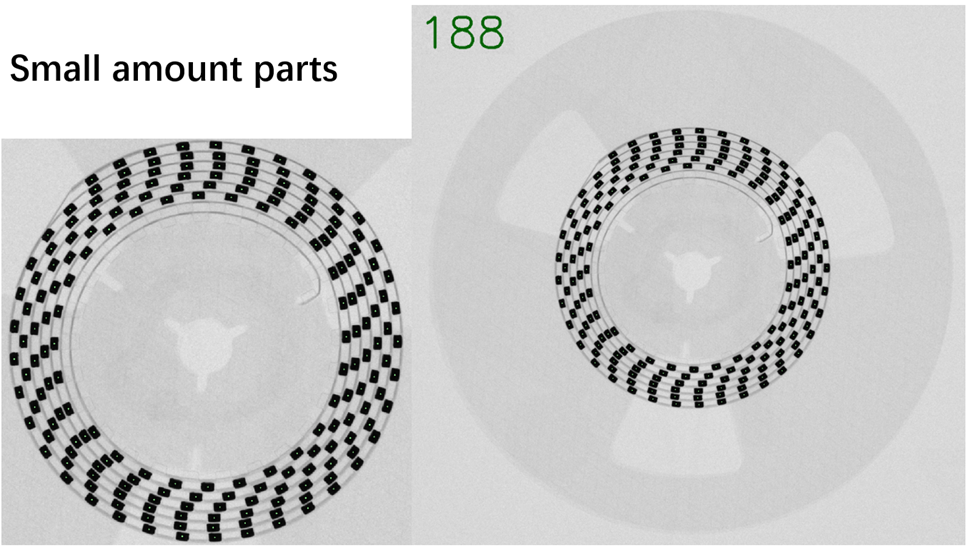

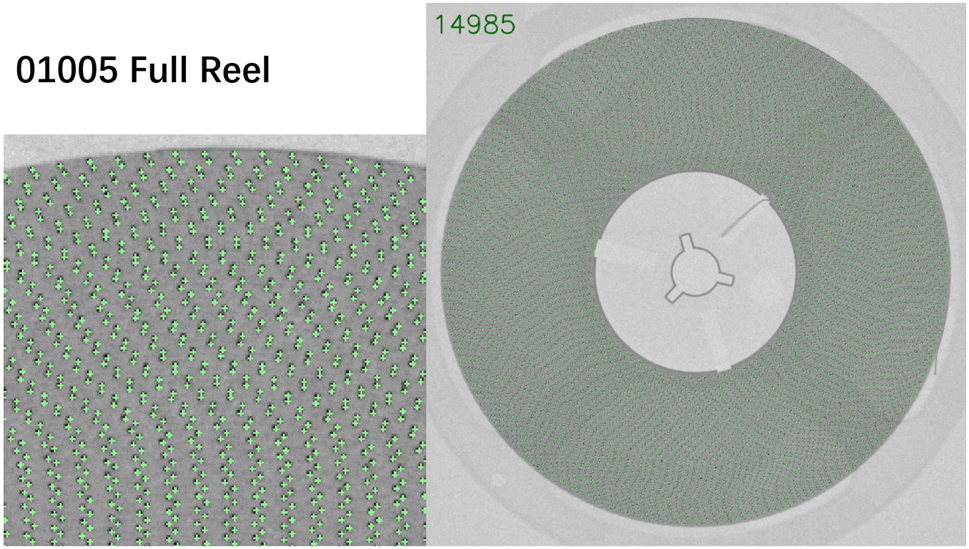

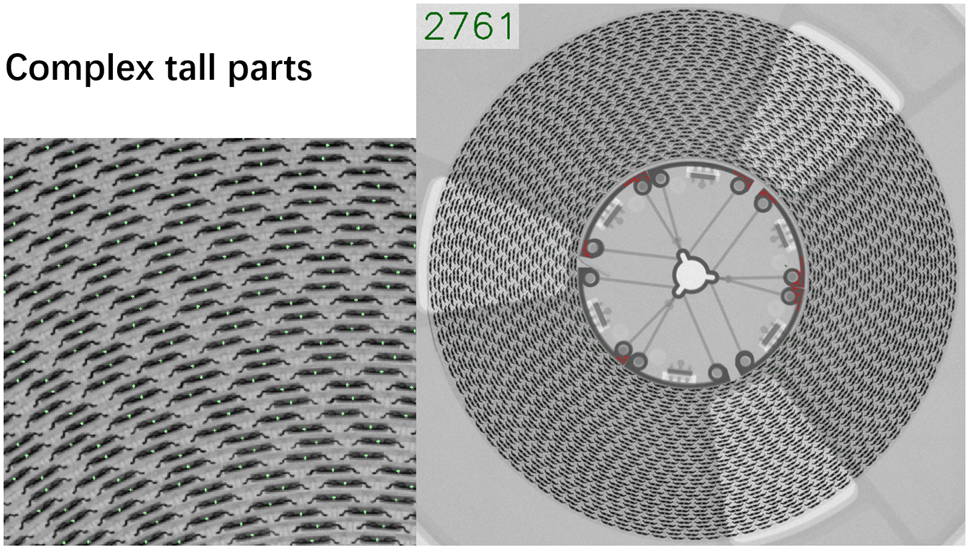

Sample Images
High Precision AI X-Ray Parts Counter for SMT High Precision AI X-Ray Parts Counter for SMT High Precision AI X-Ray Parts Counter for SMT High Precision AI X-Ray Parts Counter for SMT High Precision AI X-Ray Parts Counter for SMT High Precision AI X-Ray Parts Counter for SMT
