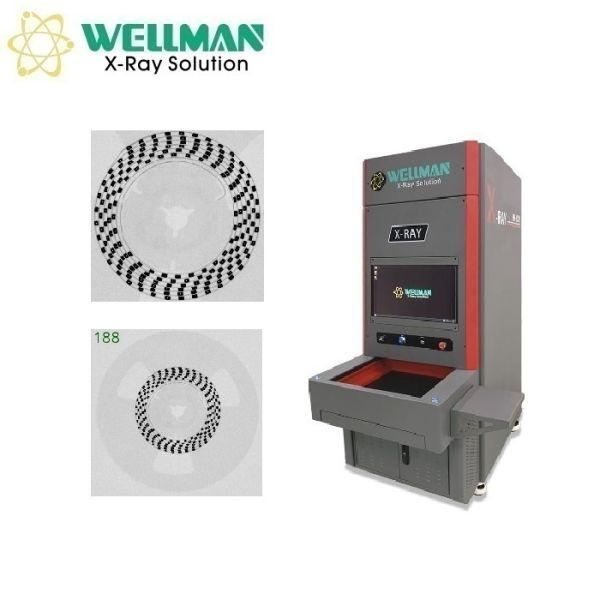

X Ray Counter with Maintenance Free 80kV Closed Type X Ray Tube
X Ray Counter with Maintenance Free 80kV Closed Type X Ray Tube
Specifications
Brand Name :
WELLMAN
Model Number :
XC-01
Certification :
CE,FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Type :
Closed,microfocus
Max tube voltage :
80kv
Effective area :
430mm*430mm
Pixel size :
139μm
Resolution :
3072*3072
Description
Microfocus X-Ray Parts Counter XC-01
Working Principle
X Ray Counter with Maintenance Free 80kV Closed Type X Ray Tube
Key Advantages
  • 80kV closed type X-ray tube with extended lifetime and maintenance-free operation
  • 17" Super definition digital flat panel detector (FPD)
  • Ultrafast counting: four 7" reels or one 15" (380mm) reel in under 10 seconds
  • Supports maximum 17" (430mm) reel or tray with moisture barrier bag
  • Permanently updated AI deep learning algorithm with free updates
  • Integration with MES, ERP, WMS, and other management systems
  • Automatic code scanning and counting with label printing
  • Automatic single/multi reel mode detection
  • Work order number function with counting record query & statistics
Equipment Specifications
X-ray SourceTypeIntegrated, microfocus
Max Tube Voltage80kV
Max Tube Current700μA
Focal Spot Size30μm
Flat Panel DetectorTypeSuper definition digital FPD
Effective Area430mm*430mm
Pixel Size139μm
Resolution3072*3072
Reel/Tray CountingMax Size17"(430mm)
Max Thickness88mm
Min Parts Size01005
Speed7-10s
Accuracy01005≥99.98%, 0201 & above≥99.99%
EquipmentDimensions1000mm (L)*1300mm (W)*1820mm (H)
Weight580kg
Power SupplyAC110-220V 50/60HZ
Max Power800W
Industrial PCI7 CPU, 16G RAM, 256G SSD+4T HDD
Displayer24"HDMI LCD
Additional Functions
Auto Code ScanningBarcode and QR code
Label PrintingAutomatic label printing when reel is removed
Counting RecordInquiry by time range and work order number
Management System ConnectionMES, ERP, WMS etc.
Mode SwitchingAutomatic single/multi reel mode detection
Work Order NumberSupport work order number recording
Safety Features
Radiation LeakageNo leakage, international standard: ≤1μSv/h
Back Door Safety InterlockAutomatic X-ray power off when back door opens
Anti-pinchSafety light curtain covers entire drawer
Emergency StopFront operation position emergency power off
Performance Specifications
Reel SizeParts SizeQuantityAccuracySpeed
7"(180mm)010054000099.98%9-10s
7"(180mm)02012000099.99%8-9s
7"(180mm)04021000099.99%7-8s
7"(180mm)0603500099.99%7-8s
10"(254mm)1206500099.99%7-8s
15"(380mm)12061000099.99%7-8s
AI Deep Learning Algorithm
Our counting software utilizes powerful artificial intelligence deep learning algorithms that automatically identify components without manual binding. The AI system learns from counted component data including:
  • Aspect ratio analysis
  • Corner angle measurements
  • Component slope from inside to outside
  • Image deformation patterns from center to edge
As counting operations increase, accuracy improves continuously. The system easily handles similar components or larger trays with enhanced precision over time.
Cloud Database Integration
Every Wellman X-ray counter connects to our cloud database. Machine data and images upload to the cloud while automatically downloading the latest database updates. Our engineers optimize algorithms based on collected data and regularly update customer systems.
X Ray Counter with Maintenance Free 80kV Closed Type X Ray Tube
Over time, counting accuracy approaches 100% with expanding component type coverage. When encountering new components, our software accesses stored database data for higher efficiency, accuracy, and coverage.
Sample Images
X Ray Counter with Maintenance Free 80kV Closed Type X Ray Tube X Ray Counter with Maintenance Free 80kV Closed Type X Ray Tube X Ray Counter with Maintenance Free 80kV Closed Type X Ray Tube X Ray Counter with Maintenance Free 80kV Closed Type X Ray Tube X Ray Counter with Maintenance Free 80kV Closed Type X Ray Tube X Ray Counter with Maintenance Free 80kV Closed Type X Ray Tube
