X ray counter with auto label printing for SMD components counting
X ray counter with auto label printing for SMD components counting
X ray counter with auto label printing for SMD components counting
X ray counter with auto label printing for SMD components counting
X ray counter with auto label printing for SMD components counting
X ray counter with auto label printing for SMD components counting
Specifications
Warranty :
12 months
Model Number :
XC01
Counting accuracy :
99.99%,99.98%
Brand Name :
WELLMAN
X-ray leakage :
≤1 u Sv/h
MOQ :
1
Packaging Details :
Wooden case
Supply Ability :
Worldwide supply
Delivery Time :
7 work days
Payment Terms :
T/T
Counting speed :
2s per reel
Place of Origin :
China
X-ray leakage amount :
≤1 u Sv/h
Certification :
CE,ISO9001,FDA
Description
X-ray Counter with Auto Label Printing for SMD Components Counting
Working Principle
X ray counter with auto label printing for SMD components counting

The XC-01 utilizes advanced X-ray imaging technology to accurately count SMD components on reels through non-destructive inspection methods.

Key Advantages
  • Closed type X-ray tube for the longest lifetime and maintenance-free operation
  • Integration with MES, ERP, WMS, and other management systems

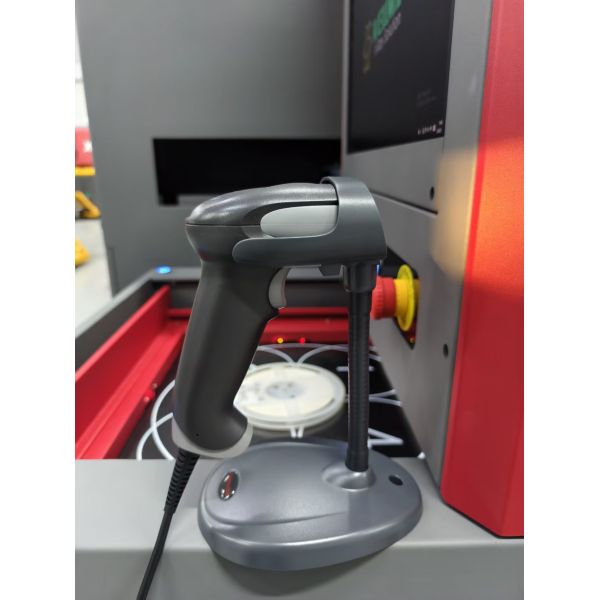

  • Simultaneous automatic code scanning and label printing
  • 17" Super definition digital flat panel detector (FPD)
  • Counting four 7" reels or one 15" reel in 7-10 seconds
  • No need to switch single/multi reel counting mode
Equipment Specifications
X-ray Source
80kV (optional), 700μA, 30μm focal spot
Detector
430*430mm, 3072*3072, 139μm pixel
Counting
Min: 01005 | Speed: 7-10s | Accuracy: ≥99.98%
Mechanical
1000*1300*1820mm | 520kg | 800W max
Safety
Radiation ≤1μSv/h | safety interlock | anti-pinch | emergency stop
Speed & Accuracy Performance
Reel Size Parts Size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s
AI Deep Learning Algorithm

As counting operations increase, the system becomes progressively more accurate. The algorithm efficiently handles similar components and larger trays with improved performance over time.

X ray counter with auto label printing for SMD components counting
Cloud Database Integration

This continuous improvement process ensures counting accuracy approaches 100% over time, with expanding component type coverage. When encountering new components, the system can directly access stored data for enhanced efficiency, accuracy, and coverage.

X ray counter with auto label printing for SMD components counting
Sample Images
X ray counter with auto label printing for SMD components counting X ray counter with auto label printing for SMD components counting X ray counter with auto label printing for SMD components counting X ray counter with auto label printing for SMD components counting X ray counter with auto label printing for SMD components counting X ray counter with auto label printing for SMD components counting
