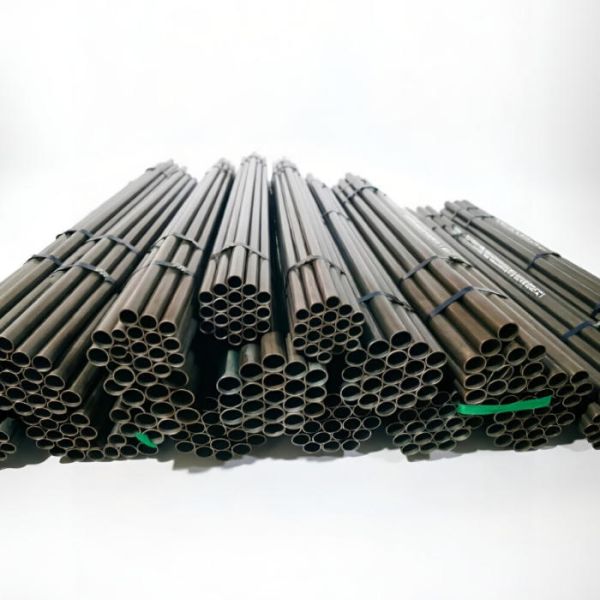

73mm / 89mm Forged One Piece Cold Drawn 4140 HDD Drill Pipe For Trechless Drilling
73mm / 89mm Forged One Piece Cold Drawn 4140 HDD Drill Pipe For Trechless Drilling
73mm / 89mm Forged One Piece Cold Drawn 4140 HDD Drill Pipe For Trechless Drilling
73mm / 89mm Forged One Piece Cold Drawn 4140 HDD Drill Pipe For Trechless Drilling
73mm / 89mm Forged One Piece Cold Drawn 4140 HDD Drill Pipe For Trechless Drilling
73mm / 89mm Forged One Piece Cold Drawn 4140 HDD Drill Pipe For Trechless Drilling
Specifications
Brand Name :
HONGBAO
Model Number :
HG-OP
Certification :
PED, ISO9001,DNV
Place of Origin :
China
MOQ :
1MT
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
3000MT/Month
Delivery Time :
Negotiable
Packaging Details :
As required
Steel Grade :
42CrMo
Execution Standard :
ASTM A519, DIN2391, EN10305-1
OD Range :
30-139.7mm
WT Range :
3-19mm
Description
73mm / 89mm Forged One-Piece Cold-Drawn HDD Drill Pipe for Trenchless Drilling​
Designed for the rigors of modern trenchless technology, our 73mm/89mm Forged One-Piece Cold-Drawn HDD Drill Pipes​ deliver uncompromising strength, precision, and durability for horizontal directional drilling (HDD) applications. Engineered to excel in complex underground environments—from urban utility installation to long-distance pipeline routing—these pipes are the backbone of efficient, low-disruption drilling operations.
Crafted from high-strength alloy steel​ (e.g., 42CrMo or equivalent), the drill pipes undergo a forged one-piece manufacturing process​ to eliminate weld seams, a critical weakness in multi-piece designs. This seamless structure, combined with cold-drawing technology, ensures exceptional dimensional accuracy (outer diameter tolerance ±0.1mm, straightness ≤0.3mm/m) and a smooth inner surface (Ra ≤1.6μm), reducing friction and torque loss during drilling. The cold-drawing process also refines the steel’s grain structure, enhancing tensile strength (≥1100 MPa) and yield strength (≥950 MPa) to withstand extreme axial loads, torsional stress, and abrasive geological conditions (e.g., hard rock, gravel, or clay).
Key Features & Benefits:
1.Forged One-Piece Construction: No welds = no weak points. Resists fatigue cracking and torsional failure in long-reach or high-torque drilling (max torque capacity: 25,000 N·m for 89mm, 15,000 N·m for 73mm).
2.Cold-Drawn Precision: Tight tolerances and smooth bores minimize fluid resistance, improve mud flow efficiency, and extend tool joint life.
3.Corrosion & Wear Resistance: Optional surface treatments (e.g., nitriding, phosphate coating) protect against mud chemicals and abrasive wear, ideal for high-salinity or rocky formations.
4.Size Versatility: Available in 73mm (2-7/8") and 89mm (3-1/2") outer diameters, with lengths from 3m to 6m (customizable), fitting most HDD rigs and drill string configurations.

Chemical Composition

Steel Grade C Si Mn P S Cr Mo B

4130

 0.28-0.33 0.15-0.35 0.40-0.60 ≤0.040 ≤0.040 0.80-1.10 0.15-0.25
4140 0.38-0.43 0.15-0.35 0.75-1.00 ≤0.040 ≤0.040 0.80-1.10 0.15-0.25
45MnMoB 0.43-0.48 0.17-0.37 1.05-1.35 ≤0.020 ≤0.015 0.20-0.25 0.001-0.005

1541

 0.36-0.44 - 1.35-1.65 ≤0.040 ≤0.050

30CrMnSiA

 0.28-0.34 0.90-1.20 0.80-1.10 ≤0.020 ≤0.015 0.80-1.10

Mechanical Properties

Steel Grade

 Deliver Condition Tensile Strength(Mpa) Yield Strength(Mpa) Elongation(%) Hardness(HRC)
4130 + SR ≥813 ≥690 ≥15% ≥24
4140 QT ≥950 ≥850 ≥14% 28 - 33
45MnMoB + N ≥790 ≥600 ≥14% -
1541 + SR ≥813 ≥690 ≥15% ≥24
30CrMnSiA QT ≥850 ≥750 ≥14% 26 - 31

Delivery Condition:

1. Stress Relief Annealing after Cold Working (+SR) (BKS)

2. Normalizing (+N) (NBK)

3. Quenching & Tempering (QT)

73mm / 89mm Forged One Piece Cold Drawn 4140 HDD Drill Pipe For Trechless Drilling

FAQ:

1. Can you provide a sample to check the quality?
We can provide free sample with same or similar sizes for you to check tube quality.
You need to in charge of Express costs.

2. How about your production capacity?
3000 tons/Month.

3. What are your terms of payment?
30%TT in advance, Balance to be paid before shipment.

4. Where is your factory?
Zhangjiagang city, 1.5 hours away from Shanghai.

5. How can I get the quotation A.S.A.P?
Please send us an inquiry with full details as following,quotation will sent to you A.S.A.P:
1). Tube Standard
2). Steel Grade
3). Tube Size and Size Tolerance
4). Tube length
5). Quantity
6). If any special requirements

6. How about the minimum order quantity?
Normally for one size above 1 ton.

Welcome to contact us! Thanks.
