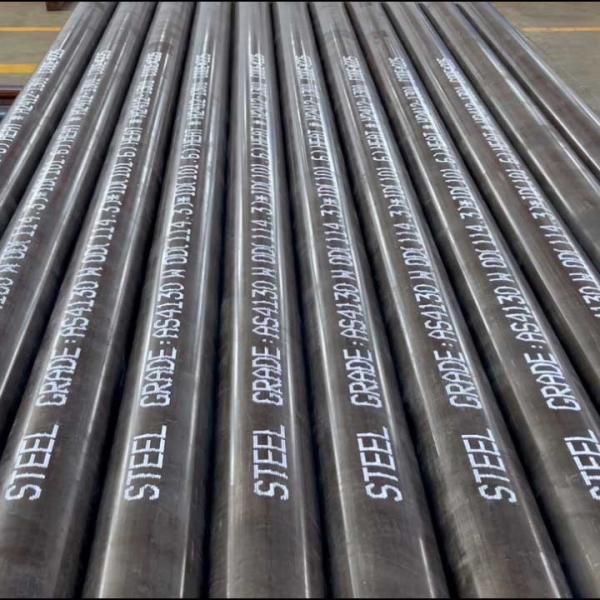

ASTM A513 A519 Tight Tolerances Drill Rod 45MnMoB Low Eccentricity Seamless Steel Oil Drilling Pipe
ASTM A513 A519 Tight Tolerances Drill Rod 45MnMoB Low Eccentricity Seamless Steel Oil Drilling Pipe
ASTM A513 A519 Tight Tolerances Drill Rod 45MnMoB Low Eccentricity Seamless Steel Oil Drilling Pipe
ASTM A513 A519 Tight Tolerances Drill Rod 45MnMoB Low Eccentricity Seamless Steel Oil Drilling Pipe
ASTM A513 A519 Tight Tolerances Drill Rod 45MnMoB Low Eccentricity Seamless Steel Oil Drilling Pipe
ASTM A513 A519 Tight Tolerances Drill Rod 45MnMoB Low Eccentricity Seamless Steel Oil Drilling Pipe
ASTM A513 A519 Tight Tolerances Drill Rod 45MnMoB Low Eccentricity Seamless Steel Oil Drilling Pipe
ASTM A513 A519 Tight Tolerances Drill Rod 45MnMoB Low Eccentricity Seamless Steel Oil Drilling Pipe
Specifications
Brand Name :
HONGBAO
Model Number :
HG-OP
Certification :
PED, ISO9001, DNV
Place of Origin :
China
MOQ :
1MT
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000MT/Month
Delivery Time :
Negotiable
Packaging Details :
As required
Material :
30CrMo（4130/34CrMo4）, 42CrMo（4140/42CrMo4）, 40Mn2, 45MnMoB, 30CrMnSiA, 4135, 1541
Standard :
GB/T 9808, ASTM A519, DIN2391, EN10305-1,
OD Range :
30-139.7mm
WT Range :
3-19mm
Processing :
Cold Rolling
Color :
Black
Description

​​45MnMoB Drilling Pipe – Built for Extreme Wells​​
​​Toughness meets strength for the harshest drilling conditions.​​ The 45MnMoB-grade pipe delivers ​​unmatched load capacity, superior wear resistance, and rugged durability​​ where standard pipes fail.

​​Why It’s Different​​
1. ​​Extreme Strength​​ – Handles ​​ultra-deep wells (>3,000m) & high-pressure reservoirs (≥50 MPa)​​ with tensile strength ≥790 MPa.

2. ​​Rock-Hard Wear Resistance​​ – Manganese & molybdenum boost hardness (QT-treated up to 28–32 HRC) to fight abrasion.

3. ​​Impact-Ready​​ – Absorbs shocks (stuck pipe, vibrations) with ≥14% elongation.

4. ​​Corrosion & Heat Resistant​​ – Low sulfur/phosphorus + molybdenum for tough fluids & high temps.

5. ​​Weldable & Tough​​ – Field-ready welding & machining for demanding jobs.

​​Perfect For:​​ Ultra-deep, high-wear, or HPHT wells.

​​Upgrade when 1541/4130 can’t keep up.​

Applications include fore poling (advance support), mine blasting, water well drilling, geothermal well drilling, and coal/nonferrous metal mining.​​

Chemical Composition

Steel Grade C Si Mn P S Cr Mo B

4130

 0.28-0.33 0.15-0.35 0.40-0.60 ≤0.040 ≤0.040 0.80-1.10 0.15-0.25
4140 0.38-0.43 0.15-0.35 0.75-1.00 ≤0.040 ≤0.040 0.80-1.10 0.15-0.25
45MnMoB 0.43-0.48 0.17-0.37 1.05-1.35 ≤0.020 ≤0.015 0.20-0.25 0.001-0.005

1541

 0.36-0.44 - 1.35-1.65 ≤0.040 ≤0.050

30CrMnSiA

 0.28-0.34 0.90-1.20 0.80-1.10 ≤0.020 ≤0.015 0.80-1.10

Mechanical Properties

Steel Grade

 Deliver Condition

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

 Hardness(HRC)
4130 + SR ≥813 ≥690 ≥15% ≥24
4140 QT ≥950 ≥850 ≥14% 28 - 33
45MnMoB + N ≥790 ≥600 ≥14% -
1541 + SR ≥813 ≥690 ≥15% ≥24
30CrMnSiA QT ≥850 ≥750 ≥14% 26 - 31

Delivery Condition:

1. Stress Relief Annealing after Cold Working (+SR) (BKS)

2. Normalizing (+N) (NBK)

3. Quenching & Tempering (QT)

ASTM A513 A519 Tight Tolerances Drill Rod 45MnMoB Low Eccentricity Seamless Steel Oil Drilling Pipe

FAQ:

1. Can you provide a sample to check the quality?
We can provide free sample with same or similar sizes for you to check tube quality.
You need to in charge of Express costs.

2. How about your production capacity?
3000 tons/Month.

3. What are your terms of payment?
30%TT in advance, Balance to be paid before shipment.

4. Where is your factory?
Zhangjiagang city, 1.5 hours away from Shanghai.

5. How can I get the quotation A.S.A.P?
Please send us an inquiry with full details as following,quotation will sent to you A.S.A.P:
1). Tube Standard
2). Steel Grade
3). Tube Size and Size Tolerance
4). Tube length
5). Quantity
6). If any special requirements

6. How about the minimum order quantity?
Normally for one size above 1 ton.

Welcome to contact us! Thanks.
