Specifications
Brand Name :
Hongbao
Model Number :
HBWS-001
Certification :
TS16949, ISo9001
Place of Origin :
Jiangsu
MOQ :
2MT
Price :
Negotiable
Supply Ability :
800MT/Month
Delivery Time :
Negotiable
Packaging Details :
Packaging: Wooden cases
Material :
26MnB5
Length :
Random or fixed length
Shape :
Round
Technical :
Seamless or welded
Delivery Condition :
+C, +N, +SR,+NBK
Standard :
EN10305-1, EN10305-2 etc
Process :
Cold drawn, cold rolled
Description

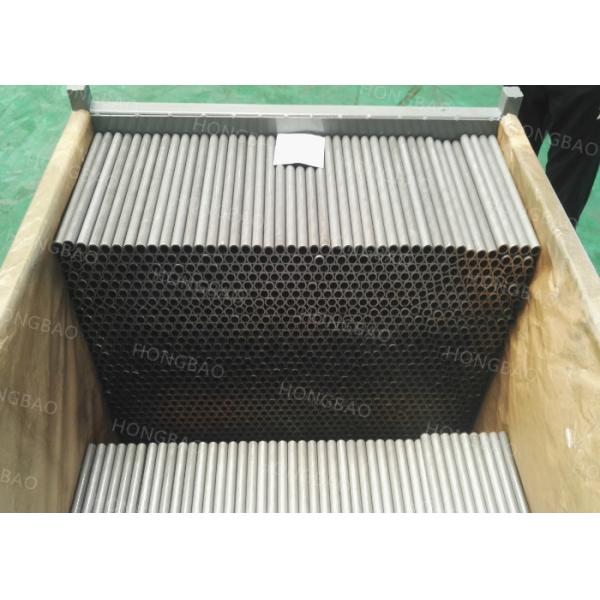

EN10305-2 E235 E355 Welded Cold Drawn Carbon Steel Tube
With high dimension accuracy and fine surface quality, cold drawn precision steel tubing is suitable for hydraulic and pneumatic systems. Besides seamless cold drawn tubes, welded cold drawn tubes are also used for cylinders with smooth surfaces. BS EN 10305, a series of steel tube specifications for precision applications, includes 10305-2 grade E235 which is an ideal material for barrels and cylinders.
Product Specifications
Corresponding Standards: DIN 2393 St 37-2
Size Range: O.D. 50 - 380 mm; W.T. 1 - 25 mm
Length: 5 - 7 m
Application: Vehicle construction, furniture industry and general engineering
E235 Chemical Composition
Steel grade Steel number C max Si max Mn max P max S max Al min
E235 1.0308 0,17 0,35 1,20 0,025 0,025 0,015
E235 Mechanical Properties (+C Delivery Condition, Room Temperature)
Steel grade Tensile strength Rm MPa Yield strength ReH MPa Elongation %
E235 520 470 10
BS EN 10305-2 E235 Surface Condition
A roughness value of Ra < 0,8 μm applies to the inside surface, in compliance with ISO 4287 and ISO 4288. For the outside surface, EN 10305-2 is applicable.
BS EN 10305-2 E235 Straightness
Tubes for hydraulic and pneumatic applications are specially straightened with regard to the intended application. For tubes with an outside diameter D > 15 mm supplied in lengths greater than 1,000 mm, the deviation from straightness of any tube length L shall not exceed:
  • 0,0015 L for ReH ≤ 500 MPa
  • 0,002 L for ReH > 500 MPa
Manufacturing Capabilities
SHEW-E STEEL manufactures a wide range of cold drawn welded pipe products with excellent quality and services for tube-related solutions. We offer specially precision steel tubes with outside diameters from 50 to 380 mm and wall thicknesses up to 25 mm to suit a wide range of applications.
Production Method
The cold drawn welded tube is produced by drawing ERW (electric resistance welded tube). During this process, the sizing (wall thickness, inside and outside diameter), as well as weld integrity and surface finish, is closely controlled to produce tube of the required size and mechanical property characteristics.
Main Data
Material: E355
Other Available Materials: E155, E195, E235, E275
Outer Diameter Range: 10-50mm
Wall Thickness Range: 1.5-8mm
t/D Ratio: ≥ 0.2 (Normal: t/D=0.1)
Standard: EN10305-2
Process: Cold Drawn, Cold Rolling
Typical Specification
Grade Welding Typical Specification Yield Strength
E355 Φ38×4.5 355~450 MPa
Chemical Component
Steel Number Quality Level Thickness/mm Deoxidize Method C(%)≤ Si(%)≤ Mn(%)≤ P(%)≤ S(%)≤
E235(Fe360) A ≤16 N 0.22 - - 0.050 0.050
B >16-25 - 0.17 0.40 1.40 0.045 0.045
C ≤40 - 0.20 0.40 1.40 0.045 0.045
D >40 E 0.17 0.40 1.40 0.045 0.045
NE 0.20 0.40 1.40 0.040 0.040
NE 0.17 0.40 1.40 0.035 0.035
GF 0.17 0.40 1.40 0.035 0.035
Delivery Conditions
  • +C: No heat treatment after the final cold drawing process
  • +LC: After the final heat treatment there is a suitable drawing pass
  • +SR: After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
  • +A: After the final cold drawing process the tubes are annealed in a controlled atmosphere
  • +N: After the final cold drawing operation the tubes are normalized in a controlled atmosphere
Advantages (Compared with Seamless Cold Drawn Tube)
  • Better shape
  • Improved quality surface
  • Tight eccentricity and wall thickness tolerances
  • Tube more safety
  • Good toughness at low temperature
  • USA Market: 90% of the cylinders in the USA market are produced with welded tubes
  • Cost: Fixed lengths more cheaper
Company Advantages
Top class of welding line: SG/76 Enhanced High-precise High Frequency Welding Tube Production Line. The tube is of small outer diameter (D) and thick wall thickness (t): t/D≥0.2, and high size precision.
