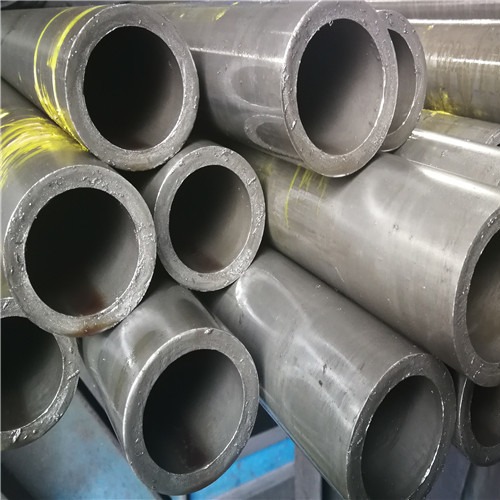

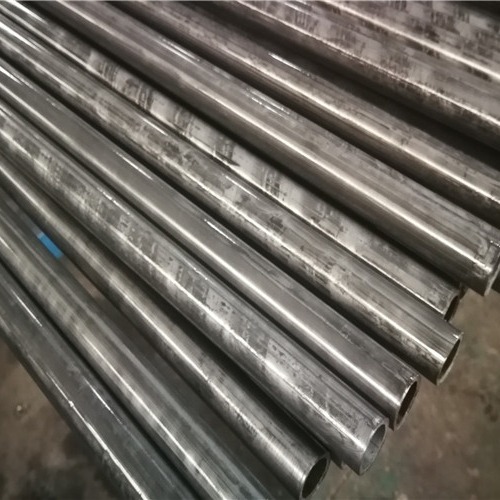

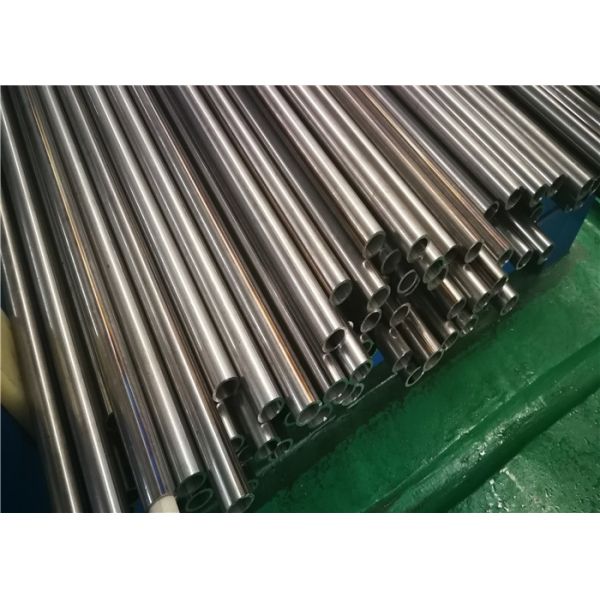

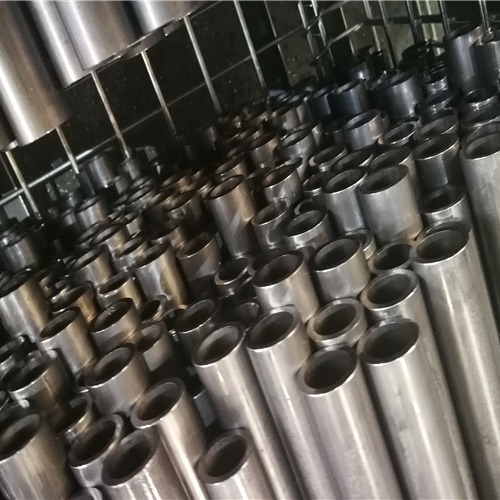

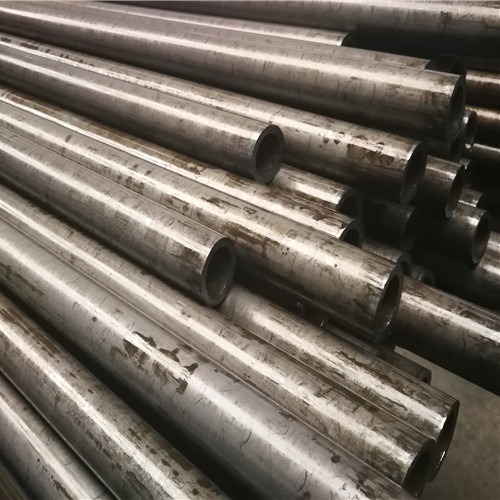

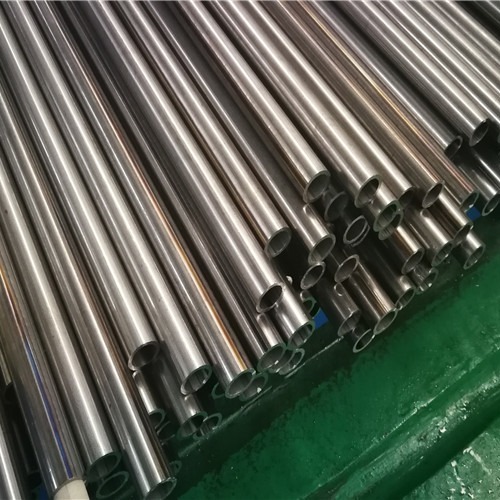

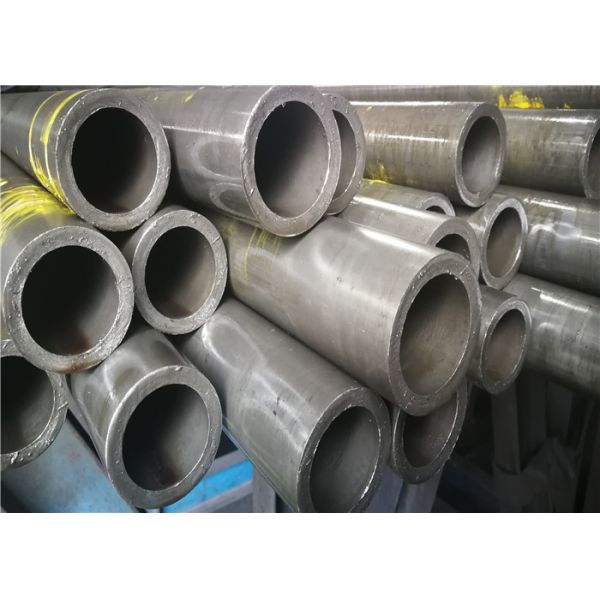

EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
Specifications
Brand Name :
HONGBAO
Certification :
TS16949, ISO9001, OHSAS18001 etc.
Place of Origin :
Jiangsu, China
MOQ :
1 ton
Price :
Negotiable
Supply Ability :
60000 MT per Year
Delivery Time :
30-45 Days
Packaging Details :
Seaworthy Wooden box, customized Packing
Model Number :
HBPST-1
Payment Terms :
L/C,T/T
Material :
E235 E355
Technique :
Cold Drawn
OD :
10-50mm
Type :
Welded or Seamless
Description
EN10305-2 E235 OD10 Cold Drawn Welded Steel Tube, Carbon Steel Pipe
Product Overview

High-quality steel alloys form the foundation of our cold drawn welded steel tube DOM pipes. A precise cold drawing process ensures tight tolerances and smooth seams, eliminating burrs. Ideal for automotive, industrial and construction applications, these pipes offer exceptional strength, corrosion resistance and durability. The result is a reliable, leak-free solution for demanding industries.

DOM Technology Explained

DOM (Drawn Over Mandrel) is a specialized tubing production process that uses a drawbench to pull tubing, allowing excellent control of the inside diameter and wall thickness. While often mistaken for seamless steel pipe, DOM tubing actually has a seam that becomes nearly invisible through the cold drawing process, which provides better dimensional tolerances, improved surface finish, and superior welding strength.

Technical Specifications
Material E235
Other Material Available E355
Standard EN10305-2
Technique Cold Drawn
OD (mm) 6-80
WT (mm) 0.5-10
If you require other materials, please contact us.
Advantages vs Seamless Cold Drawn Tube
  • Better shape and dimensional consistency
  • Improved quality surface finish
  • Tight eccentricity and wall thickness tolerances
  • Enhanced safety characteristics
  • Good toughness at low temperatures
  • 90% of cylinders in the USA market are produced with welded tubes
  • Cost-effective fixed lengths
Primary Application

Producing camshafts

Delivery Conditions
  • +C: No heat treatment after the final cold drawing process
  • +LC: After the final heat treatment there is a suitable drawing pass
  • +SR: After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
  • +A: After the final cold drawing process the tubes are annealed in a controlled atmosphere
  • +N: After the final cold drawing operation the tubes are normalized in a controlled atmosphere
Manufacturing Equipment
EN10305-2 E235 Cold Drawn Welded Steel Tube for High Precision Applications
