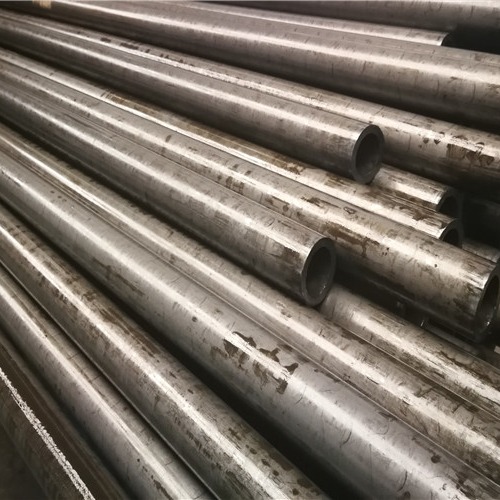

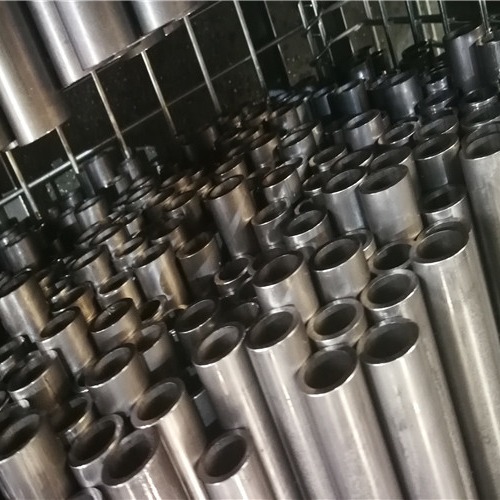

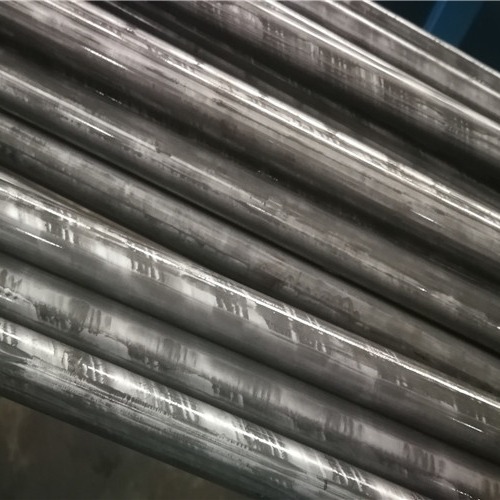

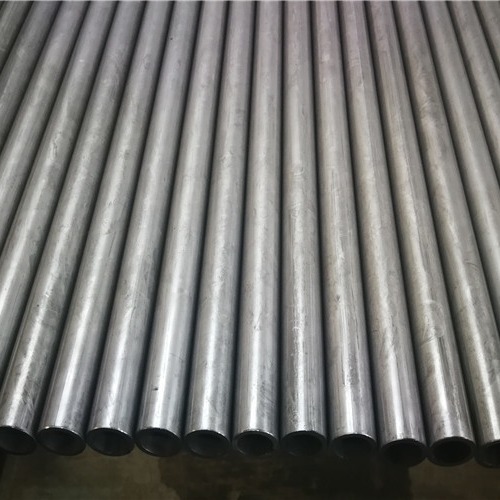

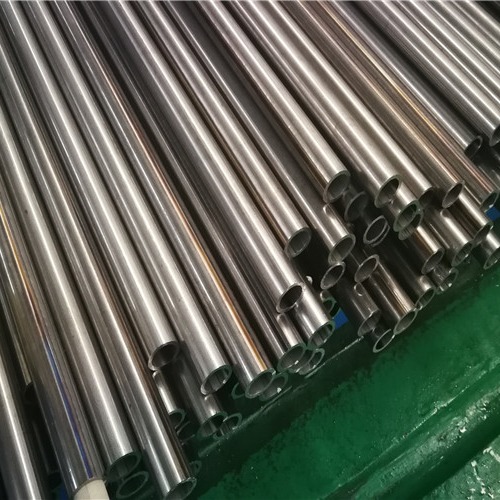

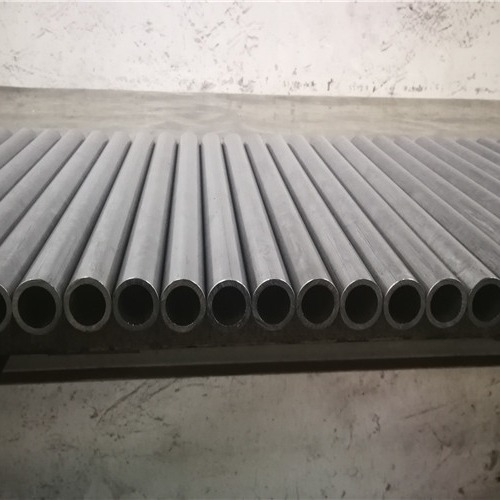

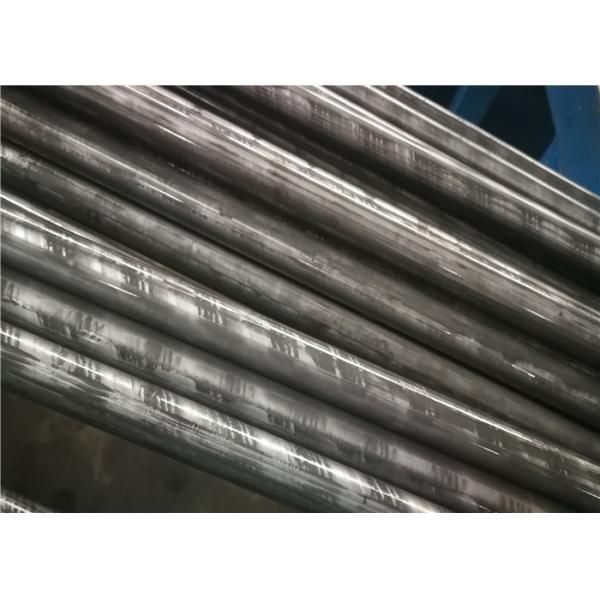

E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
E235 EN10305-2 WT15 Cold Drawn Welded Tubes with Good Mechanical Properties and High Precision for Hydraulic Systems
Specifications
Brand Name :
Hongbao
Model Number :
HB-WT-001
Certification :
TS16949, ISO9001, OHSAS18001 etc.
Place of Origin :
China
MOQ :
1 ton
Supply Ability :
60000 MT per Year
Delivery Time :
30-45 Days
Packaging Details :
Seaworthy Wooden box, customized Packing
Price :
Negotiable
Payment Terms :
L/C,T/T
Material :
E235
Shape :
Round
Delivery Condition :
+C,+LC，+SR，+N，+A
Standard :
EN10305-2
Type: :
Welded or Seamless
Thickness: :
0.5-15mm
Description
E235 EN10305-2 WT15 Straight Mild Cold Drawn Welded Tubes
High precision cold drawn welded tubes with excellent mechanical properties, ideal for hydraulic systems and precision machining applications.
Product Overview
Cold drawn welded pipe represents an optimal choice for multistage hydraulic cylinder tubes. The manufacturing process combines precision resistance welding (ERW) with cold drawing techniques, producing steel tubes that meet EN 10305-2 European mechanical standards for cold drawn welded steel tubes.
Following resistance welding, the entire pipe undergoes normalizing heat treatment to ensure uniform metallographic structure and mechanical properties throughout the weld, heat-affected zones, and base material. Subsequent cold drawing and stress-relief heat treatment provide excellent dimensional accuracy and mechanical characteristics.
Technical Specifications
Material E235
Alternative Materials E355
Standard EN10305-2
Delivery Conditions +C, +LC, +SR, +N, +A
Size Range Outer Diameter: φ6-φ80 mm
Wall Thickness: 0.5-10 mm
Applications Automotive components, hydraulic systems, high-precision machining
Key Advantages
  • Superior dimensional accuracy and shape consistency
  • Enhanced surface quality
  • Tight eccentricity and wall thickness tolerances
  • Excellent low-temperature toughness
  • 90% of hydraulic cylinders in the US market utilize welded tubes
  • Cost-effective fixed length options
Chemical Composition
Steel Number Quality Level Thickness (mm) Deoxidize Method C (%) ≤ Si (%) ≤ Mn (%) ≤ P (%) ≤ S (%) ≤
E185 (Fe310) 0 - - - - - - -
E235 (Fe360) A ≤16 N 0.22 - - 0.050 0.050
B ＞16-25 - 0.17 0.40 1.40 0.045 0.045
C ≤40 - 0.20 0.40 1.40 0.045 0.045
D ＞40 E 0.17 0.40 1.40 0.045 0.045
D ＞40 NE 0.20 0.40 1.40 0.045 0.045
D ＞40 NE 0.17 0.40 1.40 0.040 0.040
D ＞40 GF 0.17 0.40 1.40 0.035 0.035
