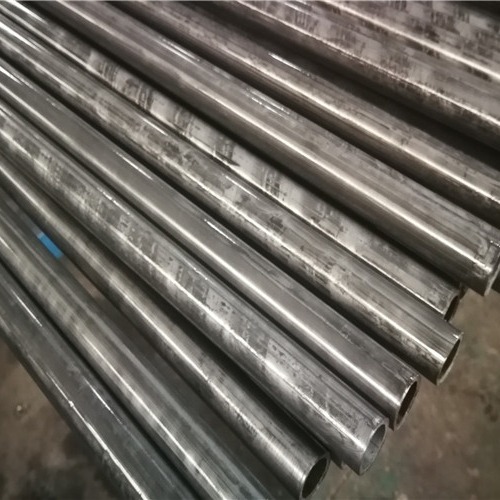

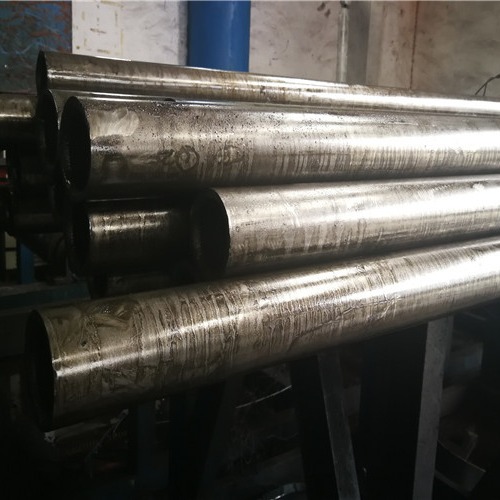

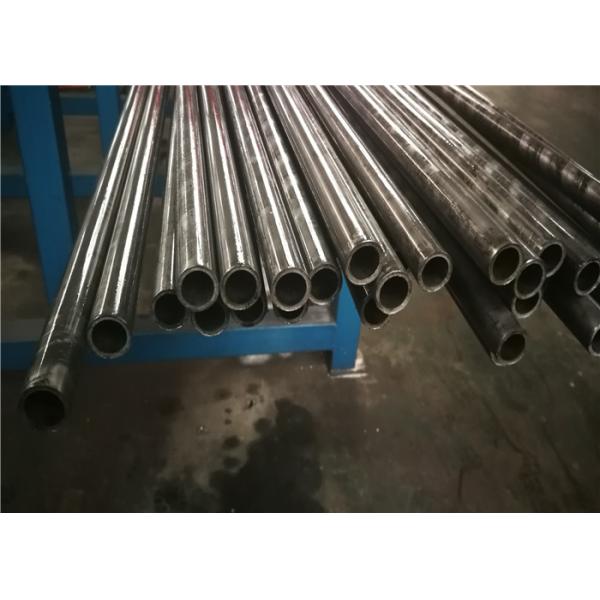

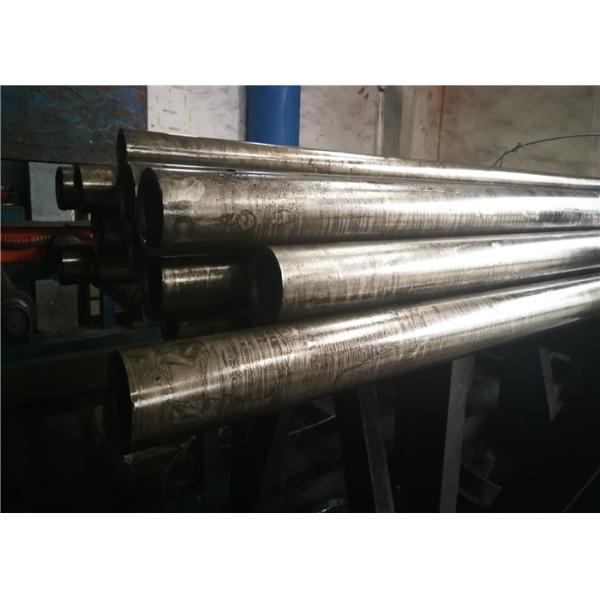

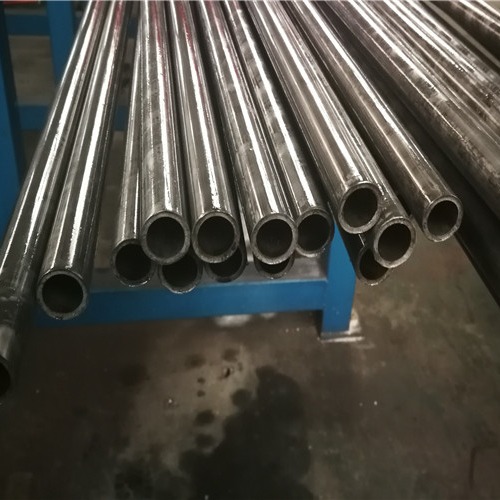

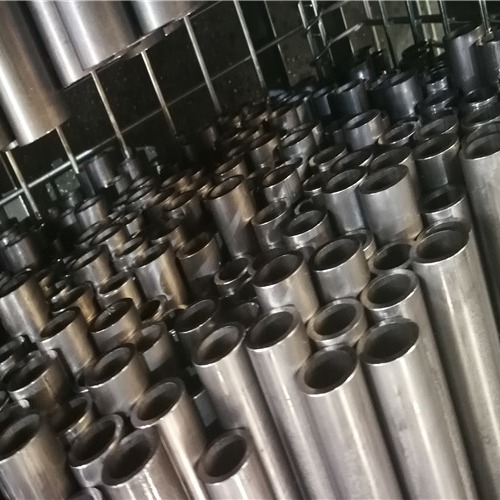

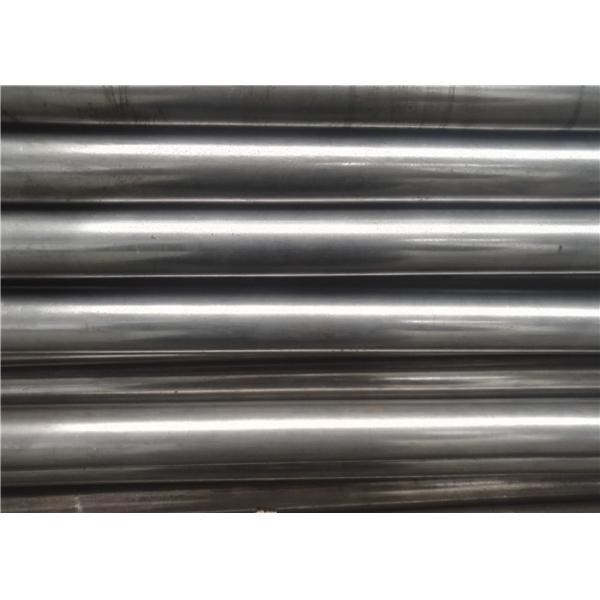

E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
E235 EN10305-2 WT0.5 Cold Drawn Welded Steel Tube for Precision Welding Round Tubing
Specifications
Brand Name :
Hongbao
Certification :
TS16949, ISO9001, OHSAS18001 etc.
Place of Origin :
China
MOQ :
1 ton
Price :
Negotiable
Supply Ability :
60000 MT per Year
Delivery Time :
30-45 Days
Packaging Details :
Seaworthy Wooden box, customized Packing
Model Number :
HBPST-1
Payment Terms :
L/C,T/T
Material :
E235, E355
Delivery Condition :
+C,+N
Technique :
Cold Drawn
Test :
Eddy Current Detector, Ultrasonic Flaw Detector.
Certificate: :
TS16949, DNV, PED, ISO, TUV, LR
Shape: :
Round
Description
E235 EN10305-2 WT0.5 Welded Steel Tube, Cold Drawn Welding Round Tube
Product Overview

Discover precision and durability with our Cold Drawn Welding Round Tubing. Crafted using advanced Welded Steel Tube Technique, our tubing ensures strength and reliability. As a trusted manufacturer, we pride ourselves on quality and precision in every product. Experience excellence in welding technology with our superior round tubing solutions.

Chemical Composition (%)
Steel Grade Steel Number C max Si max Mn P max S max Al min
E235 1.0308 0.17 0.35 1.20 0.025 0.025 -
E355 1.0580 0.22 0.55 1.60 0.025 0.025 -
Cold Drawn Technique

Produced by cold drawing over mandrel and die on the ERW welded steel tube, to achieve better tolerance and good concentricity. Both outside and inside weld seam is completely removed during the cold drawing process.

Technical Specifications
  • Material: E235, E355
  • OD (Outside Diameter): 6-80mm
  • WT (Wall Thickness): 0.5-10mm
  • Delivery Condition: +C, +N
Trade Information
Parameter Details
Trade Term FOB, EXW, CIF
MOQ 1000KG
Payment 30% TT in advance, balance before shipment or B/L at sight
Sample Free sample but postage is required
Delivery Time 30-45 days
Package Standard export package
Other Service As customer requirement
