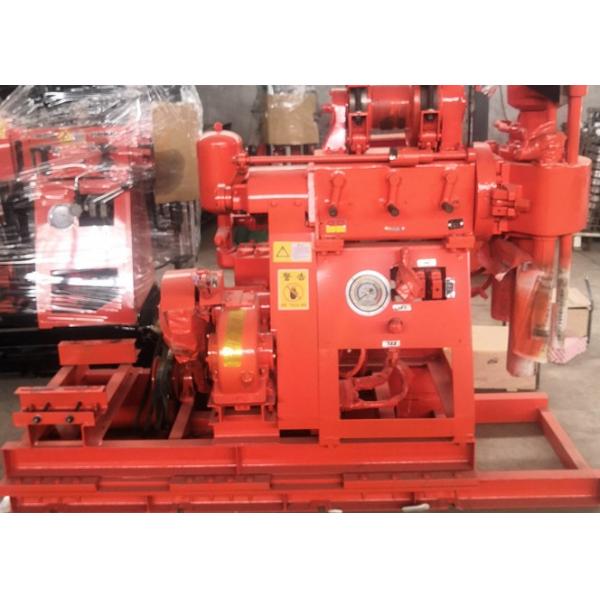

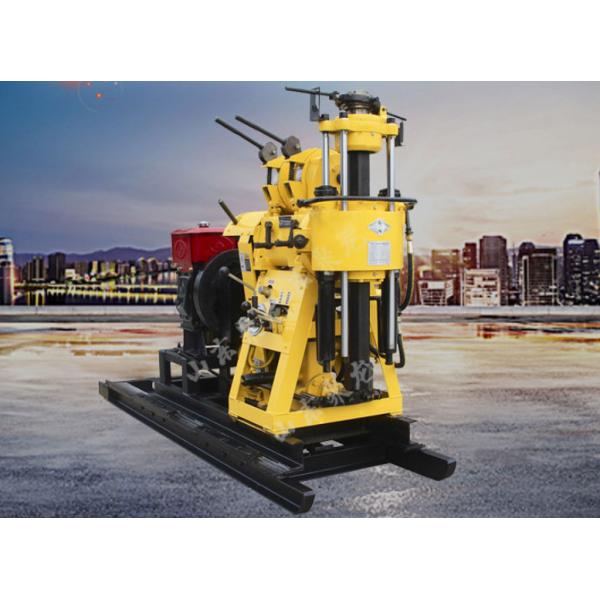

GK200 Exploration Drilling Rig Hydraulic Core Sampling Diesel
GK200 Exploration Drilling Rig Hydraulic Core Sampling Diesel
GK200 Exploration Drilling Rig Hydraulic Core Sampling Diesel
GK200 Exploration Drilling Rig Hydraulic Core Sampling Diesel
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
GK200
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
name :
Geological Drilling Rig Machine
Power Type :
Diesel
Usage :
Water Well
Voltage :
380V
Power(W) :
15KW
Weight :
626KGS
Condition :
New
Equipment size(L * B * H) :
1730 * 860 * 1360 (mm)
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Description

GK200 Hydraulic Core Sampling Exploration Drilingl Rig/Diesel Hydraulic Drilling Rig​

Brief introduction of drilling rig

GK200 this core drilling rig is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.drilling bits can be chosen according to the different soil condition, such as alloy, diamond and composite.

GK200 Hydraulic Portable 200m Water Well Drilling Machine

Drilling depth 200m
Open hole diameter 75-300mm
End hole diameter 75mm
Active drill rod 53/59*4200mm
Rod diameter 50,60mm
Drill angle 90°-75°
Matched power(diesel power) 15kw/2200r/min
Dimension 2800*950*1700mm

PRODUCT DESCRIPTION

General geological survey exploration, road and high-rise building foundation exploration, various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells and ground temperature central air conditioning, etc.

PRODUCT FEATURE

1. The hoist is equipped with a cage to form a double-sided supporting star wheel structure, which can withstand strong impacts;

2. The four sets of bearings in the vertical axle box are positioned to ensure that the gyrator has sufficient rigidity to deal with complex geological conditions such as gravel and pebble layers;

3. This machine adopts the taper clutch of national patent technology, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free;

4. It adopts 53×59 hexagonal active drill pipe, which has strong rigidity and large transmission torque.

GK200 Exploration Drilling Rig Hydraulic Core Sampling DieselGK200 Exploration Drilling Rig Hydraulic Core Sampling DieselGK200 Exploration Drilling Rig Hydraulic Core Sampling Diesel

GK200 Exploration Drilling Rig Hydraulic Core Sampling DieselGK200 Exploration Drilling Rig Hydraulic Core Sampling DieselGK200 Exploration Drilling Rig Hydraulic Core Sampling DieselGK200 Exploration Drilling Rig Hydraulic Core Sampling Diesel
