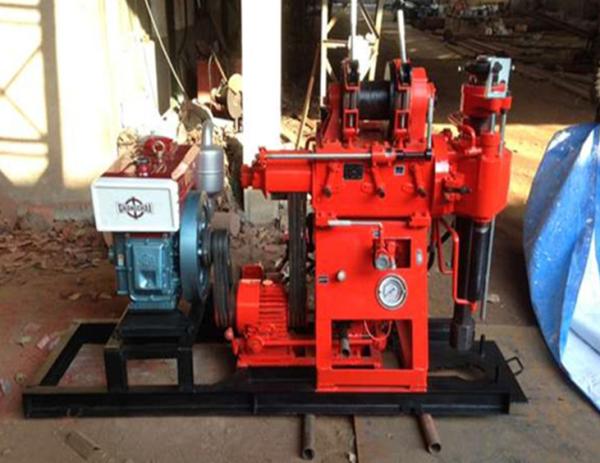

Small XY-1A Rotary Drilling Machine In Mining Diesel Engine Power
Small XY-1A Rotary Drilling Machine In Mining Diesel Engine Power
Small XY-1A Rotary Drilling Machine In Mining Diesel Engine Power
Small XY-1A Rotary Drilling Machine In Mining Diesel Engine Power
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
XY-1A
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
name :
Engineering Drilling Rig
Type :
Rotary Drilling Rig
Power Type :
Diesel
Usage :
Water Well
Voltage :
380V
Power(W) :
15KW
Weight :
1200KGS
Other name :
drill rig
Drill rod diameter :
42, 50mm
After-sales service provided :
Engineers available to service machinery overseas
Description
Small XY-1A Rotary Drilling Machine In Mining Diesel Engine Power
Product Specifications
Attribute Value
Name Engineering Drilling Rig
Type Rotary Drilling Rig
Power Type Diesel
Usage Water Well
Voltage 380V
Power 15KW
Weight 1200KGS
Other Name Drill Rig
Drill Rod Diameter 42, 50mm
After-sales Service Engineers available to service machinery overseas
Product Description

The XY-1A Engineering Drilling Rig is a hydraulic feeding, high-speed torque belt drilling machine with pump, designed for exploration of solid mineral deposits, geological surveys, and inspection holes in concrete structures. It supports diamond, alloy, and steel bits for different strata conditions.

Technical Parameters
Component Specification
Drilling Depth Max. 150m
Hole Diameter Max. 150m
Drill Rod Diameter 42, 50mm
Angle Range 90-75°
Spindle Speed 1010, 790, 470, 295, 140 (r/min)
Spindle Stroke 450mm
Spindle Pull-down Max. 15KN
Spindle Lifting Capacity Max. 25KN
Weight Approx. 600KG
Dimensions 1620×970×1560mm
Primary Applications
  • Drilling for general survey and exploration of solid mineral deposits
  • Engineering geological surveys and inspection holes in concrete structures
  • Supports diamond, alloy, and steel bits for different formations
  • Rated drilling depth of 100m (75mm hole) or 180m (46mm hole)
  • Maximum opening diameter of 150mm
Key Features
  • Hydraulic feed mechanism improves efficiency and reduces labor intensity
  • Upper ball clamping mechanism and hexagonal active drill rod allow reverse operation without stopping
  • Pressure gauge at the bottom indicates hole conditions
  • Centralized handle operation for convenience
  • Compact, lightweight design with strong decomposability for easy transport
  • Double wheel support structure for stability during operation
  • Vertical box with four bearing positions for rigidity in complex geological conditions
  • Patented taper clutch technology with strong transmission torque
  • High rigidity 46×51 active drill rods for strong torque delivery

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
