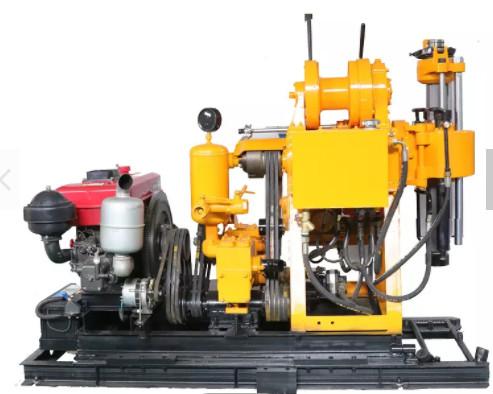

Diamond Core Tractor Mounted Borewell Machine 150 Meters
Diamond Core Tractor Mounted Borewell Machine 150 Meters
Diamond Core Tractor Mounted Borewell Machine 150 Meters
Diamond Core Tractor Mounted Borewell Machine 150 Meters
Specifications
Brand Name :
ShiTan
Model Number :
XY-1A
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
100 sets /month
Delivery Time :
Within 7 days
Packaging Details :
Wooden box
Product Name :
Diamond Core Investigation 150 Meters Engineering Drilling Rig Equipment
Power Type :
Diesel / 13.3kw
Drill depth :
150m
Usage :
Water Well
Color :
Yellow,Yellow or as your rquest
Application :
Geological Exploration
Drilling angle :
90 ~75°
Drilling Diameter :
Customized
Dimensions :
1100*600*500mm, 600*650*2330mm,
Warranty :
12 months
After-sales service provided :
video technical support
Description
Diamond Core Tractor Mounted Borewell Machine 150 Meters
Product Specifications
Attribute Value
Product Name Diamond Core Investigation 150 Meters Engineering Drilling Rig Equipment
Power Type Diesel / 13.3kw
Model Number XY-1A
Drill depth 150m
Usage Water Well
Color Yellow or as per request
Application Geological Exploration
Drilling angle 90° ~75°
Drilling Diameter Customized
Dimensions 1100*600*500mm, 600*650*2330mm
Warranty 12 months
After-sales service Video technical support
XY-1A Engineering Drilling Rig Introduction
The XY-1A Core Drilling Rig is a lightweight, high-speed machine with hydraulic feeding. Designed based on the XY-1A model, it features hydraulic feeding, high-speed torque belt, and portability with pump.
Technical Specifications
Parameter Unit Value
Engine Drilling depth m 150
Drilling hole diameter soil/rock mm 150
Power kw 13.2
Single lifting speed m/s 0.41-1.64
Single lifting force kg 2000
Rope capacity m 27
Mud pump flow L/min 95
Max. Pressure Mpa 1.2
Reciprocate times times/min 93
Key Advantages
  • Oil pressure feeding mechanism improves drilling efficiency and reduces worker fatigue
  • Equipped with ball clamping mechanism and hexagonal active drill pipe
  • Pressure gauge at bottom of hole indicates pressure for better control
  • Centralized handle for easy operation
  • Compact, lightweight design suitable for plains and mountainous areas
Core Tube - Coring Tool
The single pipe drilling tool features a simple structure and convenient processing. It's a common coring tool for hard alloy and steel particle drilling. The flushing liquid is sent into the core pipe by the drill pipe, directly impacting the top of the core. This design is best suited for relatively complete and stable formations.
Why Choose Our Drilling Rigs?
  • Double wheel support structure with keeping bracket can withstand strong blows
  • Vertical box with four bearings ensures rigidity for complex geological conditions
  • National patent technology taper clutch provides strong transmission torque
  • 46x51 active drill rods offer high rigidity and strong delivery torque
Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
