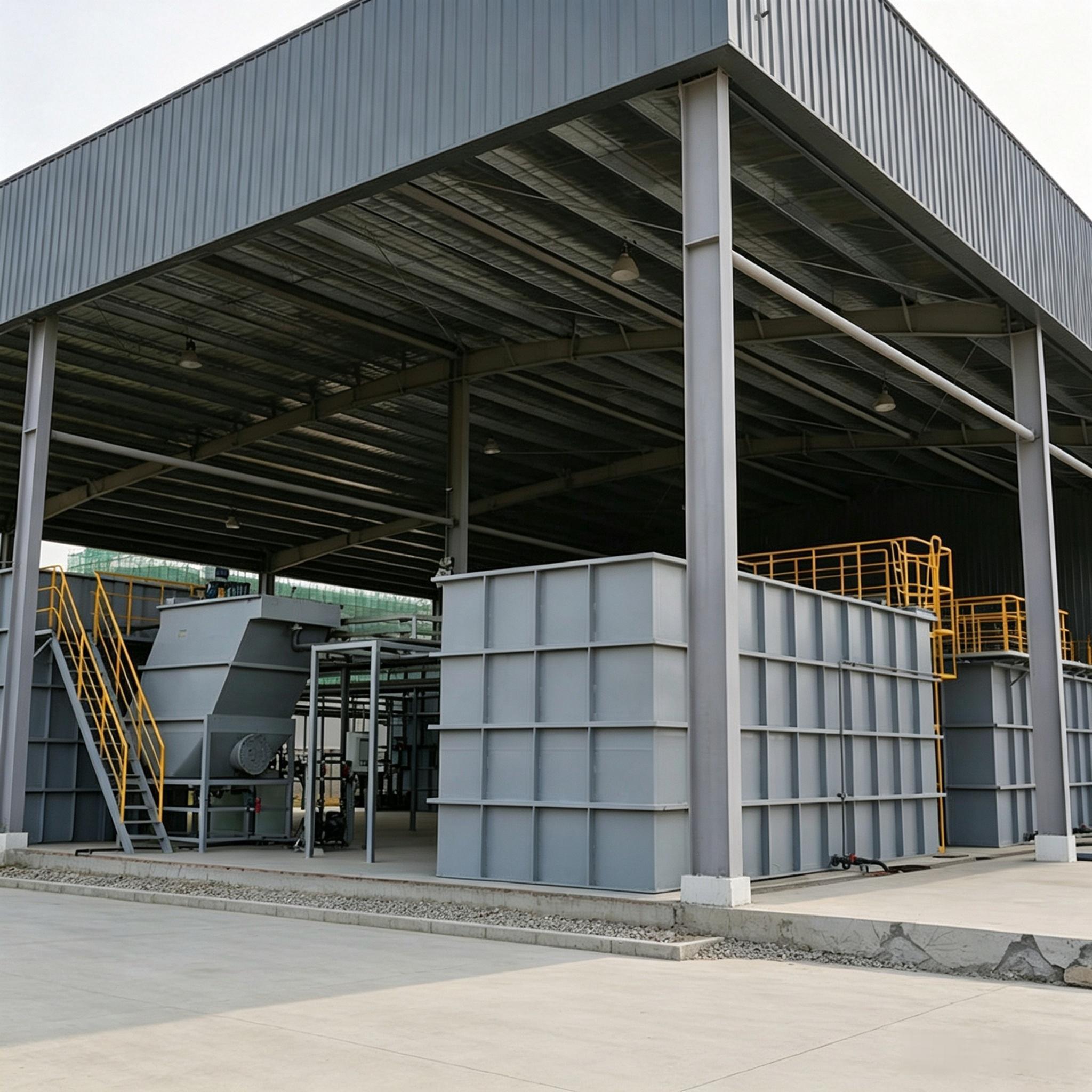

Compact Lamella Settler Solid Liquid Separator Machine for ETP Industrial Effluent Treatment Plants
Compact Lamella Settler Solid Liquid Separator Machine for ETP Industrial Effluent Treatment Plants
Specifications
Price :
USD 8,000-25,000 / Set
Supply Ability :
20 Sets per Month
Application :
Food processing/meat processing/dairy/municipal wastewater
DAF Compatibility :
Full integration with upstream DAF system
Plate Material :
SS304/SS316L/PVC/PP
Certification :
ISO 9001:2015
Delivery Time :
30-50 working days
Capacity :
5-180 m³/hr
Model Number :
LST-DAF-1
Brand Name :
DUBHE
Packaging Details :
Export-grade plywood crate with anti-corrosion wrapping, reinforced steel frame for ocean freight
Inclined Plate Angle :
55°-60°
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T,L/C
Sludge Scraper Power :
0.25 kW
Description
Lamella Settler Solid Liquid Separator Machine for ETP
Key Advantages & Features

  • Precision Solid-Liquid Separation

    Inclined plate lamella technology separates suspended solids with up to 10 times higher surface loading rate than conventional clarifiers, making it the ideal solid liquid separator machine for ETP systems.

  • Compact ETP Design

    Ultra-compact lamella settler reduces ETP footprint by up to 80%, cutting civil works and installation costs for South American industrial plants.

  • DAF-Compatible Operation

    Engineered for direct compatibility with dissolved air flotation systems, creating a complete DAF-lamella ETP treatment line for fats, oils, grease, and heavy solids.

  • Low Maintenance Operation

    Anti-clogging plate spacing and automated sludge discharge minimize operator intervention and keep maintenance costs low.

  • High-Strength Construction

    SS304/SS316L stainless steel or PVC/PP plates deliver reliable long-term service in aggressive industrial effluent.

  • Stable Effluent Quality

    Uniform hydraulic distribution eliminates short-circuiting, ensuring consistent discharge compliance for Peruvian, Chilean, and Colombian ETP regulations.

Target Industries in South America

  • Mining & Mineral Processing

    Solid liquid separation for tailings water and process effluent in Chile, Peru, and Bolivia mining operations.

  • Food & Beverage

    High-strength organic effluent treatment for meat, dairy, fruit, and brewery plants across South America.

  • Textile & Dyeing

    Color and suspended solids removal from textile ETP effluent streams.

  • Chemical & Petrochemical

    Primary clarification of chemical process wastewater before biological treatment stages.

Technical Specification
Model Capacity Dimension (m) Sludge scraper Nozzle list (DN) GB/JIS/ANSI
LST 2 m³/h L W H₁/H₂ kW Inlet
(a)		 Outlet
(b)		 Sludge outlet
(c)		 Backwash
(d)
005-7 5 2.2 1.7 3.2/2.4 0.25 80 50 50 50
010-11 10 2.9 1.7 3.2/2.4 0.25 100 80 50 50
015-21 15 2.8 2.2 3.8/3.0 0.25 100 80 80 50
020-30 20 3.5 2.2 3.8/3.0 0.25 150 150 100 50
035-43 35 3.9 2.2 4.3/3.5 0.25 200 150 100 50
040-52 40 3.8 2.8 4.3/3.5 0.25 200 200 100 50
055-72 55 4.4 2.8 4.3/3.5 0.25 250 250 100 50
065-82 65 4.2 3.3 4.3/3.5 0.25 250 250 100 50
080-105 80 4.9 3.3 4.3/3.5 0.25 250 250 100 50
※070-95 70 6.6 2.2 4.3/3.5 0.25*2 250 250 100 50
※120-150 120 7.7 2.8 4.4/3.6 0.25*2 300 300 100 50
※180-215 180 8.5 3.3 4.4/3.6 0.25*2 350 350 100 50
Why Choose DUBHE for South American ETP


DUBHE LST-DAF series lamella settlers serve as high-performance solid liquid separator machines for ETP plants across South America, meeting local discharge standards including Chilean DS 90, Peruvian DS-003, and Colombian Resolution 631.



Regional Support: Spanish and Portuguese documentation, local service network, and spare parts stocked in regional warehouses for fast delivery.



Cost Efficiency: Achieves 95%+ TSS removal with up to 30% lower chemical consumption in combined DAF-lamella ETP configurations.
