Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5180ZYSDFBEVM
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
USD3800-9060
Payment Terms :
T/T,L/C
Supply Ability :
5000unit/year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Dimension(L x W x H) :
9120,8650,8895,8975,8745×2520×3215(mm)
Chassis :
DFH1180EEV2
Engine :
TZ370XS-LKM1103
Weight :
18000(Kg)
Load Capacity :
5235,5505,5085,5035 ,5300,5570,5150,5100(Kg)
Chassis Total Capacity :
12570,12300,12720,12770(Kg)
Maximum Speed :
89(km/h)
Approaching/Departure Angle :
16/14(°)
Front/Rear/Rear Extension :
1400/2900,1400/2750,1400/2600(mm)
Axle Load :
6500/11500
Bin Lifting equipment :
Various Bin lifting solutions avaliable
Tyre number :
6
Tyre Type :
10.00R20 18PR,295/80R22.5 16PR,295/80R22.5 18PR
Description

ZBJ5180XXEV 18Tons pure electric mobile trash compressed garbage compactor truck

18-Ton Pure Electric Sanitation Truck


(Garbage Compression & Transfer Vehicle)

This 18-ton pure electric sanitation truck is designed for efficient waste collection, compression, and transport. It features a permanent magnet synchronous motor (Model: TZ370XS-LKM1103) with a rated power of 80 kW and peak power of 160 kW, powered by a lithium iron phosphate battery system.

Payload Capacity: 5035–5570 kg (varies by configuration A–E)

Configurations: Flip bucket, tipping hopper, barrel lift, flatbed tipper, or no rear device

Dimensions (L): 8650–9120 mm

Safety:

EBS with ABS function (Model: EBS 5)

Side and rear protection replaced by dedicated structural components (clearance: 490 mm)

Additional Features:

Optional ETC, GPS recorder

Rear work lights, camera systems, decorative trim

Hydraulic system and self-compressing garbage container

Optional sewage tank and rear signage board

A clean-energy solution tailored for urban waste management.

Parameters:

Item ZBJ5180ZYSDFBEVM
Energy type Pure electric
Dimension(L x W x H) 9120,8650,8895,8975,8745×2520×3215(mm)
Chassis DFH1180EEV2
Engine TZ370XS-LKM1103
Weight 18000(Kg)
Rated Loading 5235,5505,5085,5035 ,5300,5570,5150,5100(Kg)
Axle Load 6500/11500
Front/Rear Overhang 1400/2900,1400/2750,1400/2600(mm)
Tyre size 10.00R20 18PR,295/80R22.5 16PR,295/80R22.5 18PR

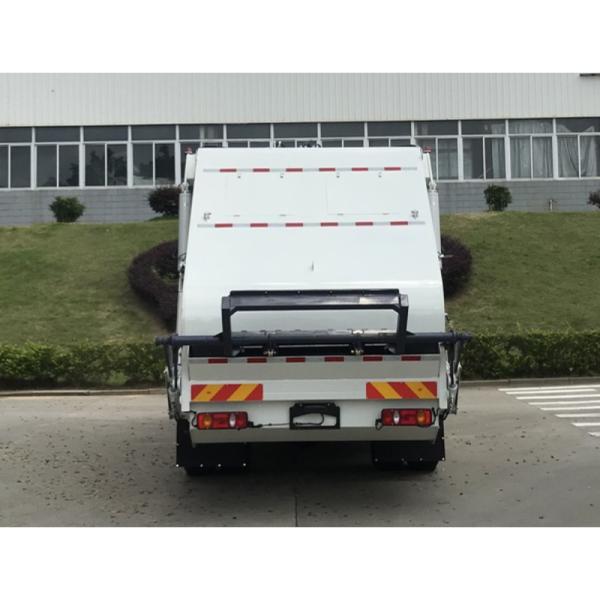

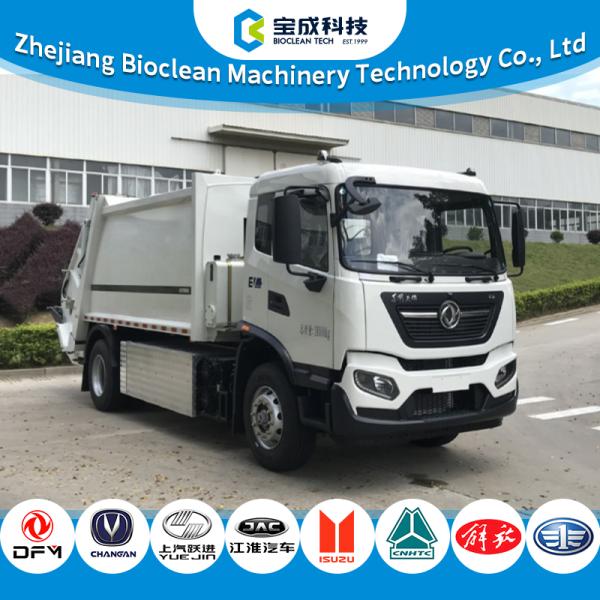

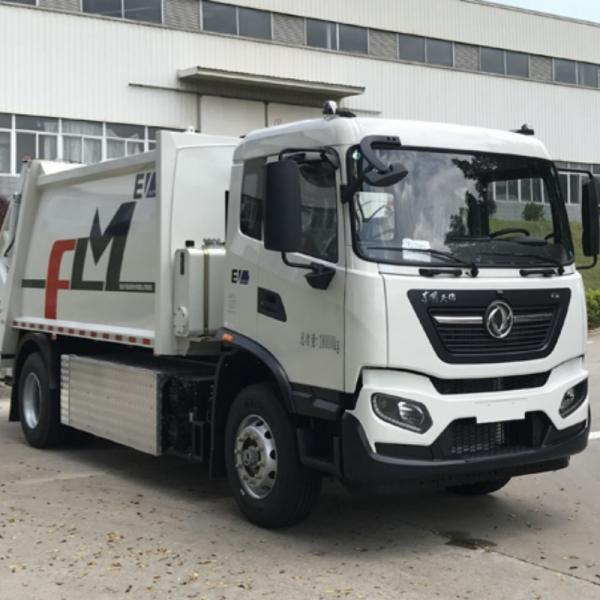

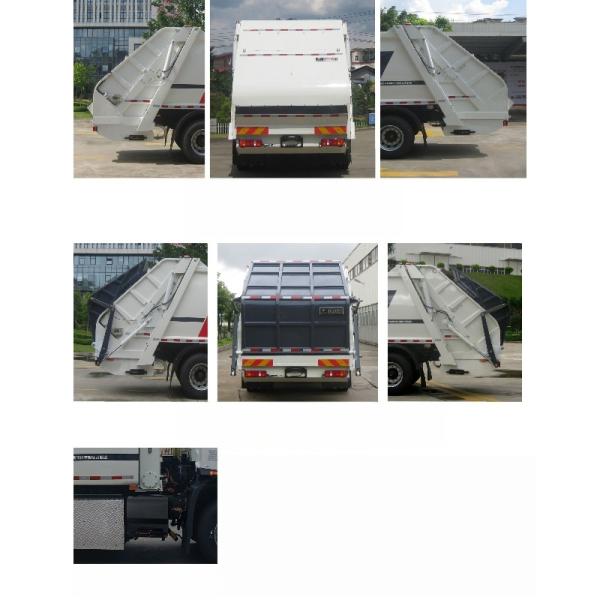

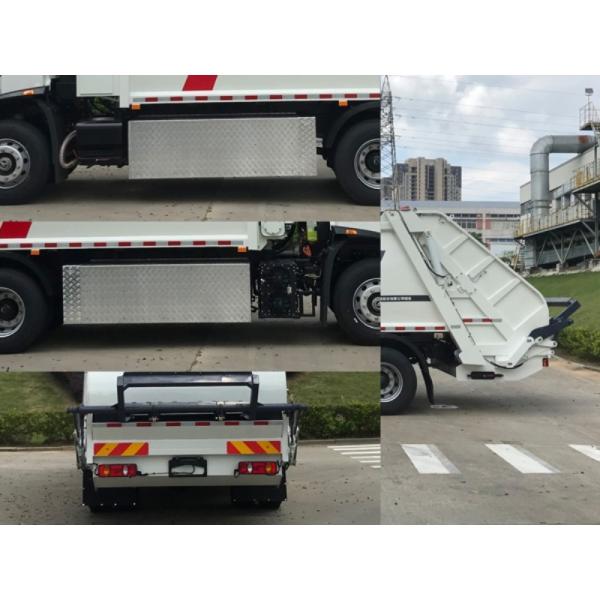

Actual photos:

18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine 18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine

18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine

18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine

18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine

18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine

18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine

18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine

18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine

18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine
