8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine
8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine
8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine
8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine
8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine
8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine
8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine
8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5081ZYSBJBE6F
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
3685-7655USD
Payment Terms :
T/T,L/C
Supply Ability :
5000unit/year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Dimension(L x W x H) :
6915,6550×2150×2510,2540(mm)
Chassis :
BJ1088VEJEA-FK
Engine :
F2.8NS6B156
Weight :
8275(Kg)
Load Capacity :
2680,2610,2560(Kg)
Chassis Total Capacity :
5400,5470,5520(Kg)
Maximum Speed :
105,80(km/h)
Approaching/Departure Angle :
20/14(°)
Front/Rear/Rear Extension :
1110/2050,1110/1970(mm)
Axle Load :
3000/5275
Bin Lifting equipment :
Various Bin lifting solutions avaliable
Tyre number :
6
Tyre Type :
7.50R16LT 14PR,8.25R16LT 14PR,7.50R16 16PR
Description

ZBJ5081XX 8200KG diesel mobile trash compressed garbage compactor truck

Product Overview – 8.3 Ton Diesel Water Sprinkler Truck (Export Model)

Gross Vehicle Weight (GVW): 8,300 kg

Wheelbase: 3360 mm

Body Function: Waste collection and unloading via garbage box & compactor

Configurations:

A (Standard): Flip bin loader

Curb weight: 5400 / 5520 kg

Payload: 2680 / 2560 kg

Length: 6915 mm; Rear overhang: 2050 mm; Rear extension: 395 mm

B (Optional): Tipping bucket

Curb weight: 5470 / 5520 kg

Payload: 2610 / 2560 kg

Length: 6550 mm; Rear overhang: 1970 mm; Rear extension: 110 mm

Optional Features: Rear covers, arms, loading mechanisms, side boxes, electrical control boxes, water trays, decorative panels, drainage heads, valves, etc.

Side Protection: Q235A, bolted

Rear Protection: Integrated into chassis (clearance 360 mm or 400 mm)

Engine Options & Fuel Consumption (L/100km):

D25TCIF1 – 14.01

D30TCIF1 – 16.19

F2.8NS6B156 – 13.90

F3.8NS6B156 – 16.20

Other Equipment: ABS, optional ETC, 80 km/h speed limiter

Applications: Ideal for compact urban sanitation and waste handling tasks

Parameters:

Item ZBJ5081ZYSBJBE6F
Energy type Diesel
Dimension(L x W x H) 6915,6550×2150×2510,2540(mm)
Chassis BJ1088VEJEA-FK
Engine F2.8NS6B156
Weight 8275(Kg)
Rated Loading 2680,2610,2560(Kg)
Axle Load 3000/5275
Front/Rear Overhang 1110/2050,1110/1970(mm)
Tyre size 7.50R16LT 14PR,8.25R16LT 14PR,7.50R16 16PR

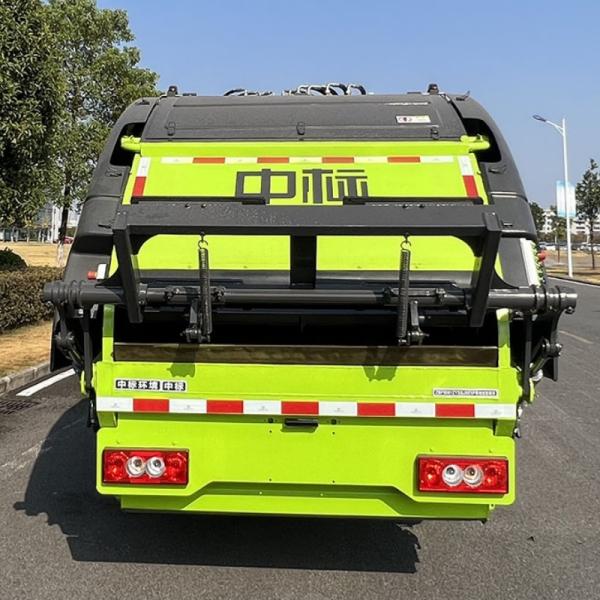

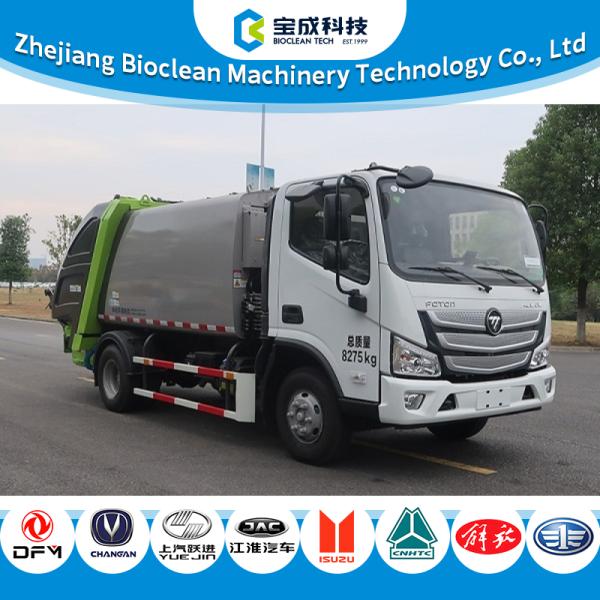

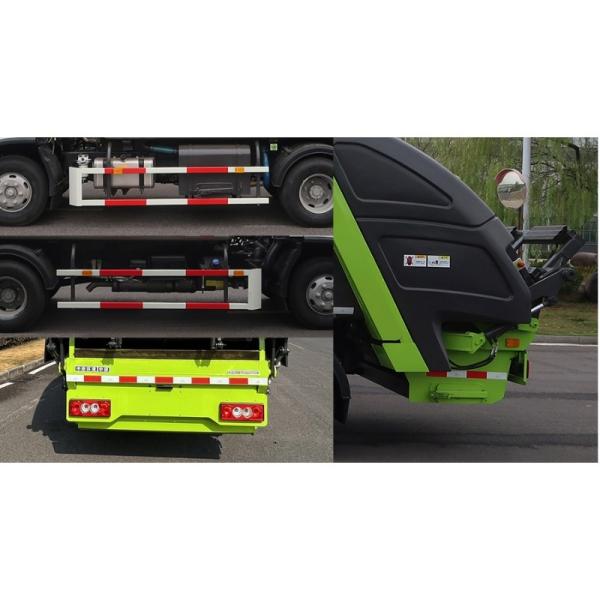

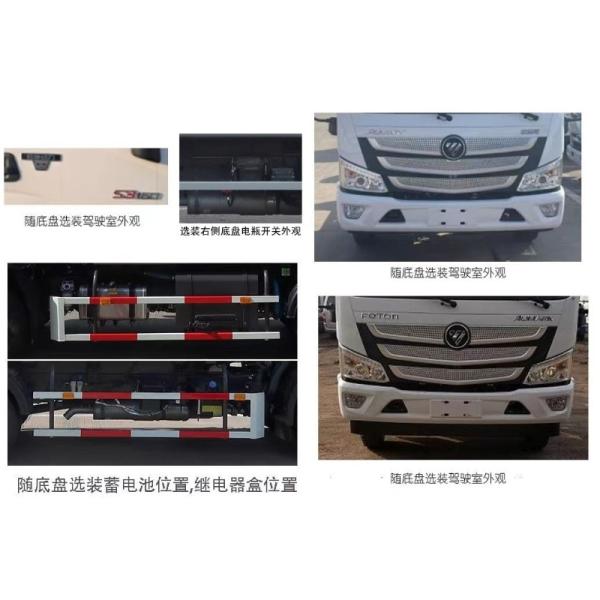

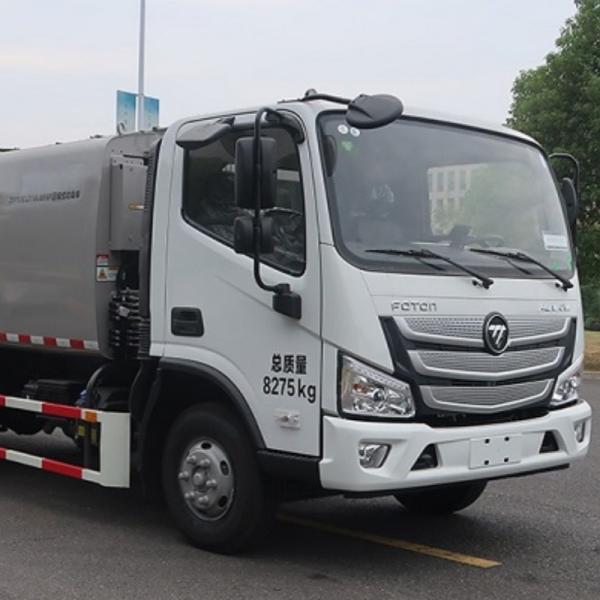

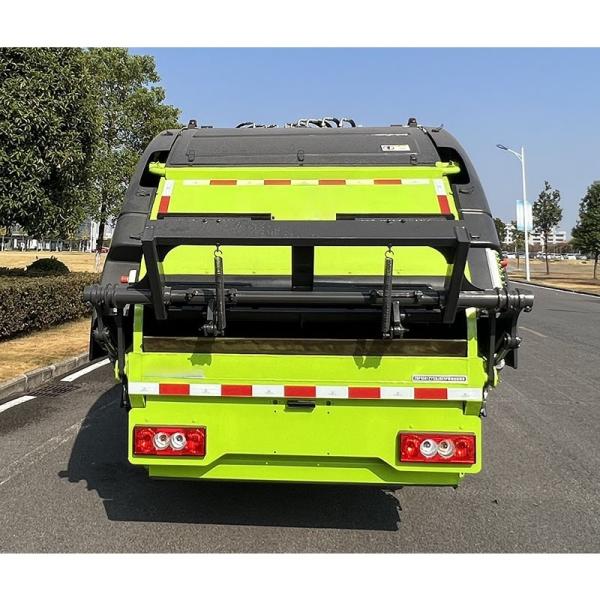

Actual photos:

8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine 8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine

8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine

8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine

8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine

8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine

8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine

8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine

8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine

8200KG Urban Sanitation Garbage Compactor Truck With F2.8NS6B156 Engine
