Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5180ZYSC
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
4585-7855usd
Payment Terms :
T/T
Supply Ability :
5000unit/year
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Dimension(L x W x H) :
8560×2500×2980mm
Chassis :
DFH1180EX8
Engine :
D6.7NS6B230/B6.2NS6B210
Weight :
10570kg
Load Capacity :
7235kg
Chassis Total Capacity :
18000kg
Maximum Speed :
89km/h
Approaching/Departure Angle :
17°/12°
Front/Rear Overhang :
1400mm/1030mm/1630mm
Axle Load :
6500kg/11500kg
Bin Lifting equipment :
Install a rear trash can flipping device
Description

18000kg Garbage Compactor Truck User Friendly Design Corrosion Resistance


Compression Garbage Carrier Rear Loaders Automatic Compressed Garbage Truck


We are professional manufacturer of special trucks,supply different kinds of trucks,can be customized as customer requirements.Garbage truck is also called compact garbage truck,compactor garbage truck,compression garbage truck,garbage compactor,etc


The appearance of the box is a circular arc flow linear shape, and the overall folding of the bottom plate is not welded, eliminating the risk of leakage. simple Clean and beautiful, with strong deformation resistance, good structural reliability, and effectively increasing actual volume, surpassing similar products,


The garbage bin is a component of this product for collecting and storing domestic waste, and it is also the base for connecting the compaction and filling device. The overall stress structural parts of the garbage bin are designed reliably, and the rigidity is reasonably matched; the garbage bin is designed to be airtight, which can effectively prevent secondary pollution.


The stuffing device is located at the tail of the box body, and it is a device for compressing and covering the loose garbage. The compaction and filling device is composed of components such as a scraper, a sliding plate and a sliding block. The sliding plate is installed in the sliding grooves on both sides of the stuffing device and can slide up and down along the sliding grooves. The scraper is installed on the sliding plate and can perform a rotating motion.


Parameters:


Item ZBJ5180ZYSC
Energy type Diesel
Dimension(L x W x H) 8560×2500×2980mm
Chassis DFH1180EX8
Engine D6.7NS6B230/B6.2NS6B210
Weight 10570kg
Rated Loading 7235kg
Axle Load 6500kg/11500kg
Front/Rear Overhang 1400mm/1030mm/1630mm
Tyre size 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR,295/80R22.5 18PR

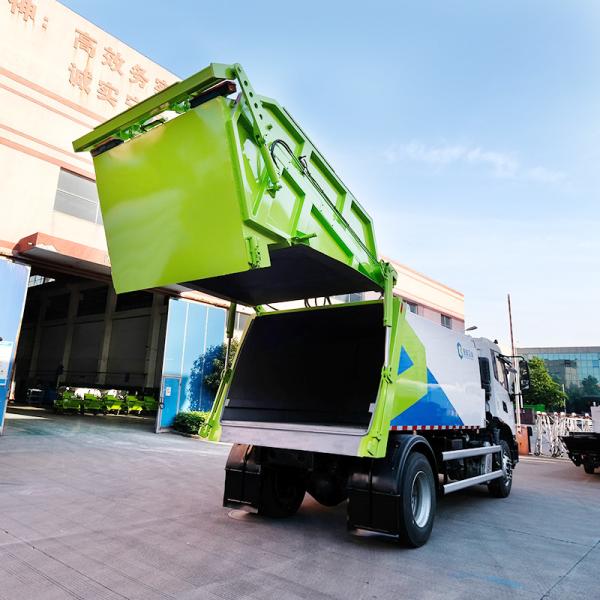

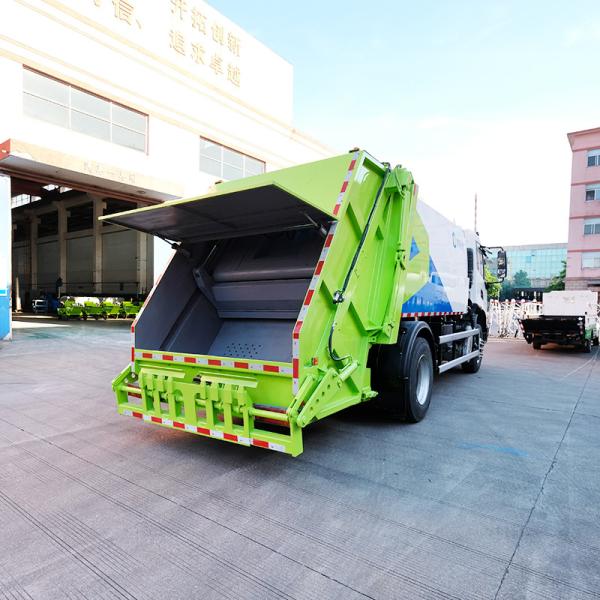

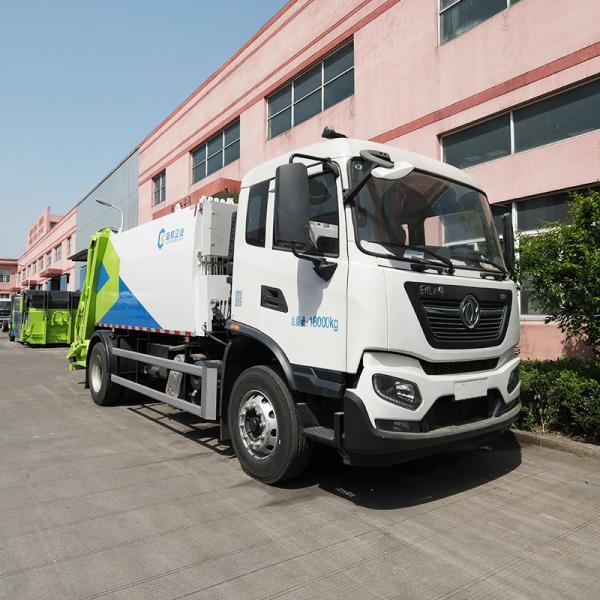

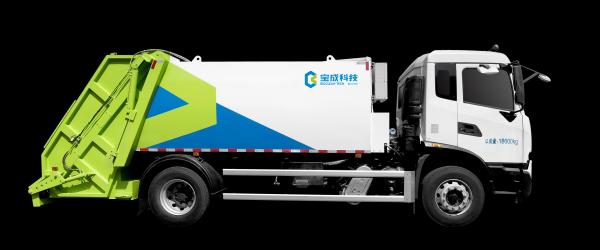

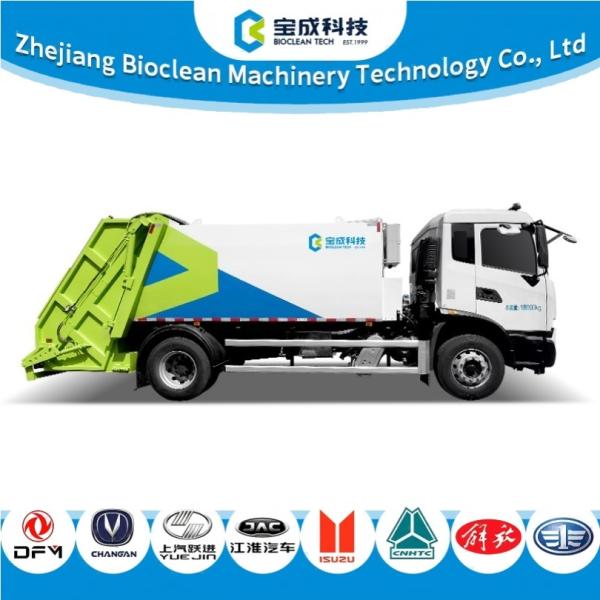

Actual photos:


18000kg Garbage Compactor Truck User Friendly Design Corrosion Resistance 18000kg Garbage Compactor Truck User Friendly Design Corrosion Resistance


18000kg Garbage Compactor Truck User Friendly Design Corrosion Resistance

18000kg Garbage Compactor Truck User Friendly Design Corrosion Resistance

18000kg Garbage Compactor Truck User Friendly Design Corrosion Resistance

18000kg Garbage Compactor Truck User Friendly Design Corrosion Resistance

18000kg Garbage Compactor Truck User Friendly Design Corrosion Resistance

18000kg Garbage Compactor Truck User Friendly Design Corrosion Resistance

18000kg Garbage Compactor Truck User Friendly Design Corrosion Resistance

18000kg Garbage Compactor Truck User Friendly Design Corrosion Resistance
