Specifications
Brand Name :
Biotec
Model Number :
ZBJ5047ZXXSHA6
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
1965-3795usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Item :
ZBJ5047ZXXSHA6
Energy type :
Diesel
Dimension(L x W x H) :
4625,4825×1670×2060,2030(mm)
Chassis :
SH1043PEDBNZ2
Driving Moto :
Q23-132E60
Power :
131PS
Curb Weight :
2050,2140(Kg)
Rated Loading :
2315,2225(Kg)
Total Mass :
4495(Kg)
Max. Speed :
100km/h
App./Dep.Angle :
18/26(°)
Front/Rear Overhang :
1090/885(mm)
Axle Loading :
1495/3000kg
Description

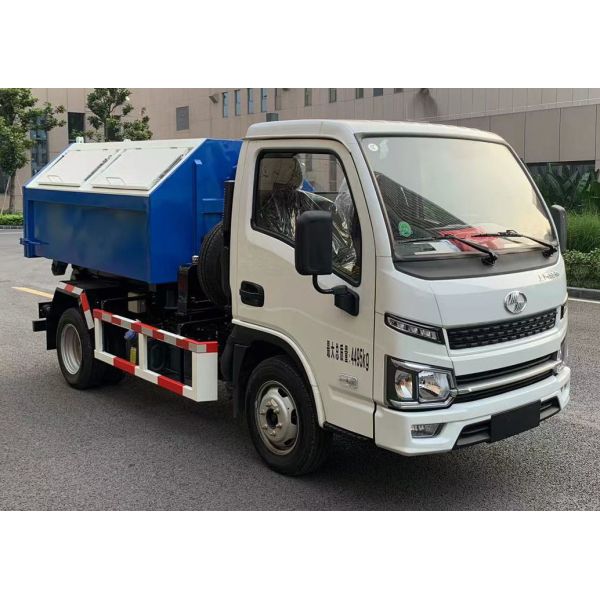

ZBJ5047ZXXSHA6 4.5ton Diesel matchbox trash garbage dump truck
Core Parameters​

Total Weight: 4495Kg, stable for garbage collection and transportation.​

Size: 4625, 4825×1670×2060, 2030mm, fits urban/rural roads with good maneuverability.​

Power: 131hp, sufficient for efficient garbage handling.​

Load Capacity: 2315, 2225Kg, carries large garbage amounts.

​

Devices & Functions
​

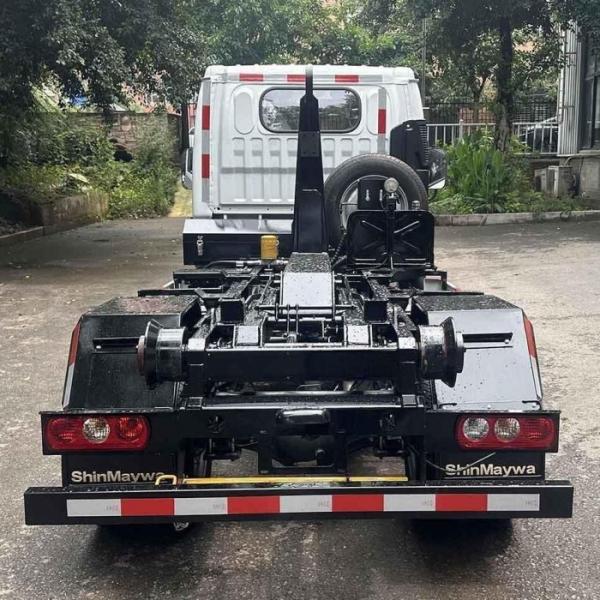

Has pull arm + hydraulic system (pulls, lifts, unloads bins; transfers bins). Curb weight 2050, 2140Kg (including spare tire, tools). Cargo box 2340×1505×1020mm (not in curb weight/registered vehicles).
​
Power & Fuel
​
Engines: Q23-95E60 (67kw, 9.52L/100km), Q23-110E60 (80kw, 10.70L), Q23A-95E60 (67kw, 11.11L), Q23-132E60 (94kw, 11.12L).
​
Safety​

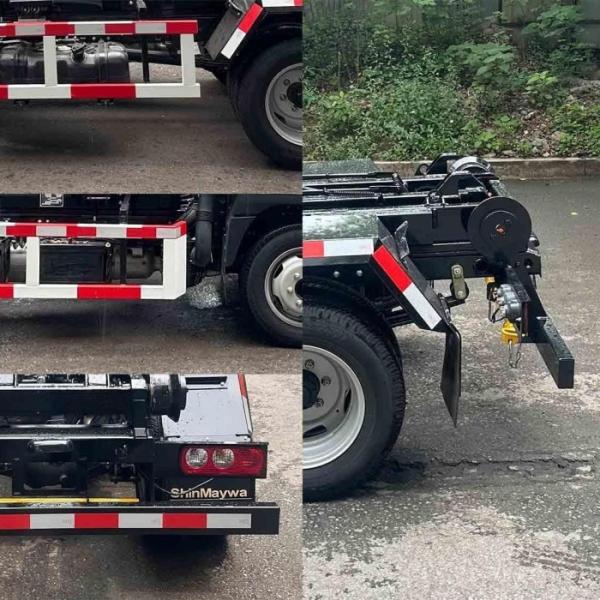

Side/rear protection: Q235, bolted. Rear: 100×50×3mm, 380mm off ground.​

ABS options: YF8 (Wuhan Yuanfeng), CM4XL-4S/4M (Guangzhou Ruili) for stable braking.

​

Options​

Direct power ETC, chassis-selected cab, rear logo styles.

​

Uses
​
Suitable for urban/rural garbage. Good performance, size, pull arm device, efficiently handles bins, keeps environment clean.
parameters:
Item ZBJ5047ZXXSHA6
Type of energy Diesel
Dimension(L x W x H) 4625,4825×1670×2060,2030(mm)
Chassis SH1043PEDBNZ2
Engine Q23-132E60
Power 131ps
Curb Weight 2050,2140(Kg)
Rated Loading 2315,2225(Kg)
Total Mass 4495(Kg)
Max.Speed 100(km/h)
App./dep. Angle 18/26(°)
Front/Rear Overhang 1090/885(mm)
Axle Loading 1495/3000kg
Actual photos
4.5ton Diesel Trash Dump Truck Trash Transport Truck With Q23-132E60 Motor
Product Advantages
4.5ton Diesel Trash Dump Truck Trash Transport Truck With Q23-132E60 Motor

Cleaning works fast

We are a professional factory making special trucks. We have many types. We can make them as you need.
The box can hold a lot.
Its outside is curved and smooth. The bottom plate is folded without welding, so it won’t leak. It looks clean and nice. It’s hard to deform, very strong, and holds more than other similar products.
 4.5ton Diesel Trash Dump Truck Trash Transport Truck With Q23-132E60 Motor
4.5ton Diesel Trash Dump Truck Trash Transport Truck With Q23-132E60 Motor
It’s easy to use.
It’s made of strong manganese steel—hard to deform, wear-resistant, and not easy to rust.
We think a lot about where you use it. It has user-friendly designs: night lights, two pollution-proof water tanks, a drain pipe, remote control, and full guides with videos for use and care.
