12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
Specifications
Brand Name :
Biotec
Model Number :
ZBJ5120ZXXBEV
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
4285-5885usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Item :
ZBJ5120ZXXBEV
Energy type :
Pure electric
Dimension(L x W x H) :
5450×2185×2160,2095(mm)
Chassis :
BJ3125EVJA1
Driving Moto :
FTTBP185A
Power :
251PS
Curb Weight :
4900(Kg)
Rated Loading :
6965(Kg)
Total Mass :
11995(Kg)
Max. Speed :
85km/h
App./Dep.Angle :
20/18(°)
Front/Rear Overhang :
1135/1115(mm)
Axle Loading :
4000/7995kg
Description
ZBJ5120ZXXBEV 12ton pure electric matchbox trash garbage dump truck
Core Parameters​

Total Weight: 12000Kg, stable for garbage work.​

Size: 5450×2185×2160, 2095mm, fits urban roads.​

Power: 251hp, strong for efficient garbage handling.​

Load: 6965Kg, carries large garbage amounts.

​

Vehicle Type & Key Parts
​
Pure electric, with CATL lithium iron phosphate batteries. It has a permanent magnet synchronous motor (FTTBP185A: 110kW rated/185kW peak, from Beiqi Foton) and a satellite positioning recorder.​
Devices & Functions
​
Special for garbage collection/transfer, with arm hook and hydraulic system for efficient tasks.
​
Safety​

Side/rear protection: Q235. Side (bolted + welded); rear (bolted, 110×50mm, 360mm off ground).​

ABS: CM4XL-4S/4M (Guangzhou Ruili Kemi) for stable braking.

​

Options
​
Direct power ETC, and chassis options like front fuel tank position, locking mechanism, etc.
​
Uses
​
Suitable for urban garbage. Strong, large load, professional devices, keeps cities clean.
parameters:
Item ZBJ5120ZXXBEV
Type of energy Pure electric
Dimension(L x W x H) 5450×2185×2160,2095(mm)
Chassis BJ3125EVJA1
Engine FTTBP185A
Power 251ps
Curb Weight 4900(Kg)
Rated Loading 6965(Kg)
Total Mass 11995(Kg)
Max.Speed 85(km/h)
App./dep. Angle 20/18(°)
Front/Rear Overhang 1135/1115(mm)
Axle Loading 4000/7995kg

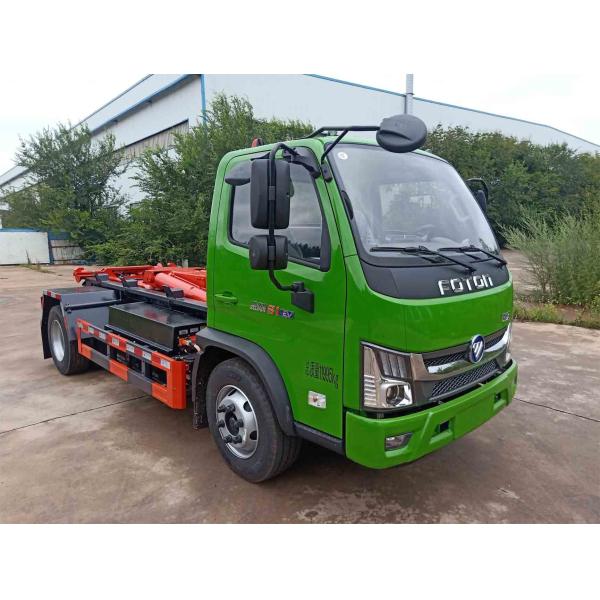

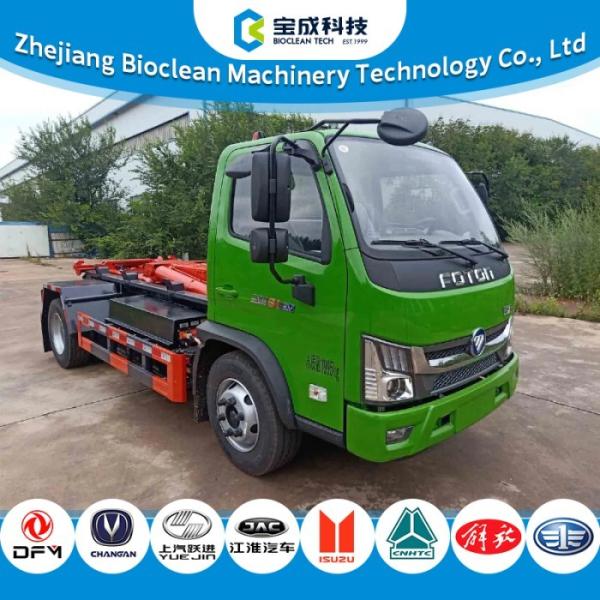

Actual photos
12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
Product Advantages
12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis

Cleaning works fast

We are a professional factory making special trucks. We have many types. We can make them as you need.
The box can hold a lot.
Its outside is curved and smooth. The bottom plate is folded without welding, so it won’t leak. It looks clean and nice. It’s hard to deform, very strong, and holds more than other similar products.
 12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
It’s easy to use.
It’s made of strong manganese steel—hard to deform, wear-resistant, and not easy to rust.
We think a lot about where you use it. It has user-friendly designs: night lights, two pollution-proof water tanks, a drain pipe, remote control, and full guides with videos for use and care.

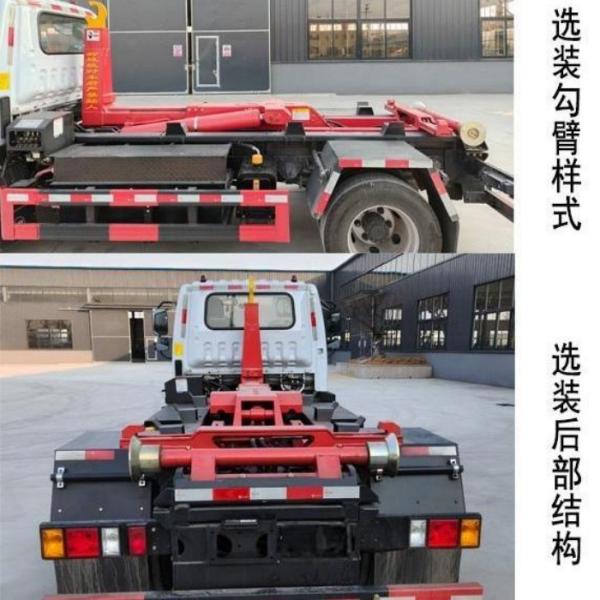

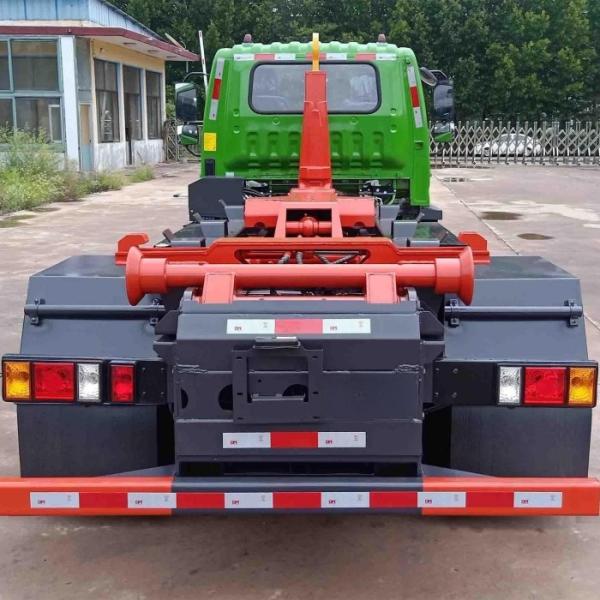

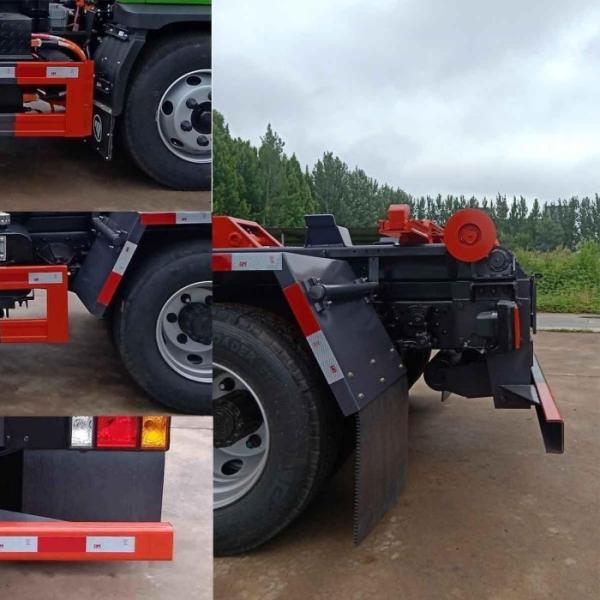

Actual photos
12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis

12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis

12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis12ton Pure Electric Garbage Dump Truck Garbage Tipper Truck With BJ3125EVJA1 Chassis
