4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
Specifications
Brand Name :
Biotec
Model Number :
ZBJ5047ZZZSHBEV
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
3165-5865usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Item :
ZBJ5047ZZZSHBEV
Energy type :
Pure electric
Dimension(L x W x H) :
5235,5280×1765,1925×2125,2290,2190(mm)
Chassis :
SH1047PCEVNZY1
Driving Moto :
TZ290XS025
Power :
136PS
Curb Weight :
3130,3280(Kg)
Rated Loading :
1235,1085(Kg)
Total Mass :
4495(Kg)
Max. Speed :
90km/h
App./Dep.Angle :
18/13(°)
Front/Rear Overhang :
1090/1295,1090/1340(mm)
Axle Loading :
1495/3045kg
Description
ZBJ5047ZZZSHBEV 4.5ton pure electric matchbox trash garbage dump truck
This vehicle has ABS (model YF8, made by Wuhan Yuanfeng Automotive Electronic Control System Co., Ltd.). It uses a lithium iron phosphate battery (model L173TB3, from CATL) and a permanent magnet synchronous drive motor (model TZ290XS025, 50kw rated/100kw peak power, produced by CRRC Times Electric Vehicle Co., Ltd.).
​
It can have an optional ETC device. The rear right work light only works during operation, not when driving.
​
Side protection is aluminum alloy, bolted. Rear protection is replaced by a special device (380mm off the ground; 280mm with optional external scraper guide rails).
​
Equipped with a rear bucket lifting mechanism and a rear dumping anti-drip garbage box, it self-loads/unloads, mainly for collecting and transporting urban domestic and kitchen waste. The box weighs 407kg (Q235-B, 3mm thick).
​

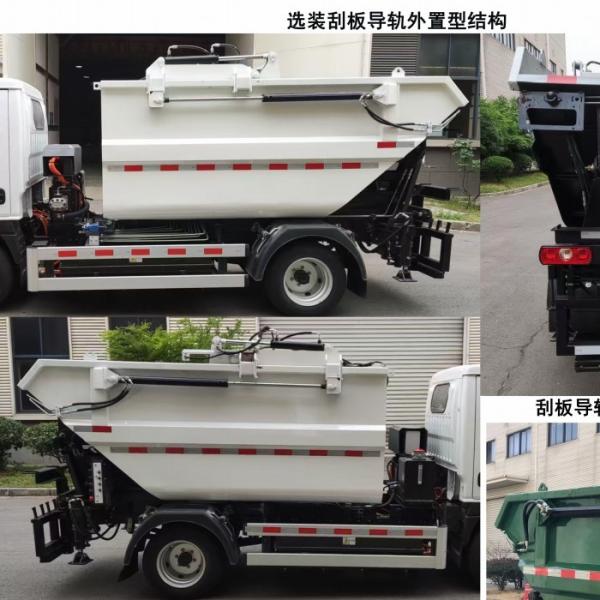

With optional external scraper guide rails, the vehicle is 5280mm long, 1925mm wide, 2290mm high (2190mm with optional slide plate), with a 1340mm rear overhang, 3280kg curb weight, 1085kg rated load, and 507kg box.
​
Curb weight excludes fire extinguisher, tools, and spare tire. Optional cab front grille (with chassis) and a side protection device (aluminum alloy, bolted).​
parameters:
Item ZBJ5047ZZZSHBEV
Type of energy Pure electric
Dimension(L x W x H) 5235,5280×1765,1925×2125,2290,2190(mm)
Chassis SH1047PCEVNZY1
Engine TZ290XS025
Power 136ps
Curb Weight 3130,3280(Kg)
Rated Loading 1235,1085(Kg)
Total Mass 4495(Kg)
Max.Speed 90(km/h)
App./dep. Angle 18/13(°)
Front/Rear Overhang 1090/1295,1090/1340(mm)
Axle Loading 1450/3045kg

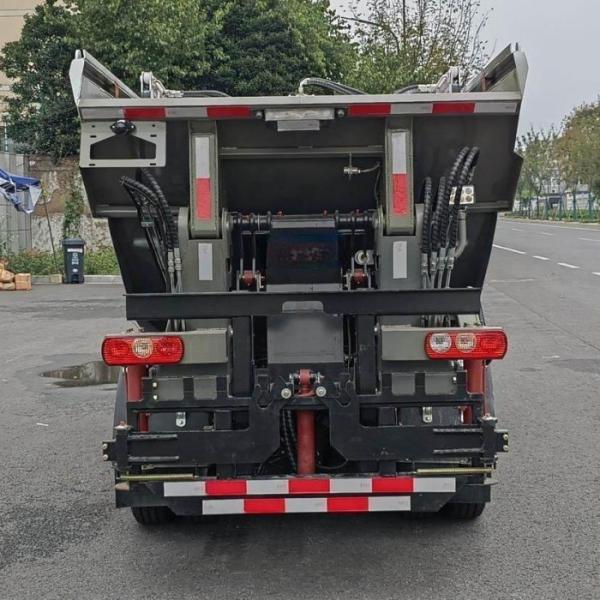

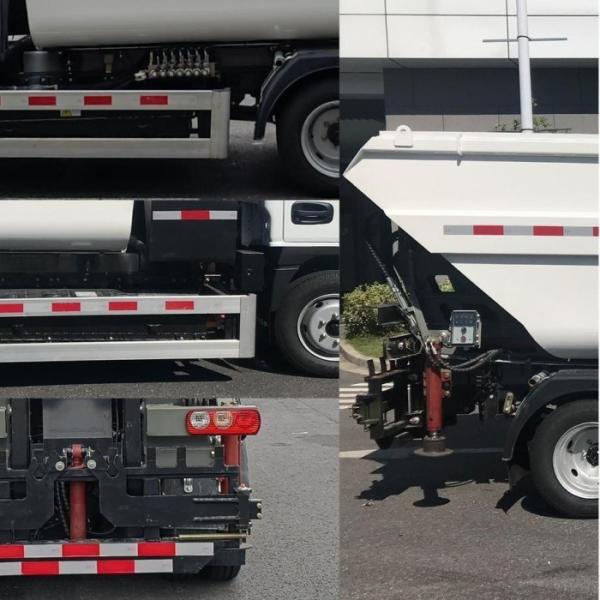

Actual photos
4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
Product Advantages
4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed

Cleaning works fast

We are a professional factory making special trucks. We have many types. We can make them as you need.
The box can hold a lot.
Its outside is curved and smooth. The bottom plate is folded without welding, so it won’t leak. It looks clean and nice. It’s hard to deform, very strong, and holds more than other similar products.
 4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
It’s easy to use.
It’s made of strong manganese steel—hard to deform, wear-resistant, and not easy to rust.
We think a lot about where you use it. It has user-friendly designs: night lights, two pollution-proof water tanks, a drain pipe, remote control, and full guides with videos for use and care.
