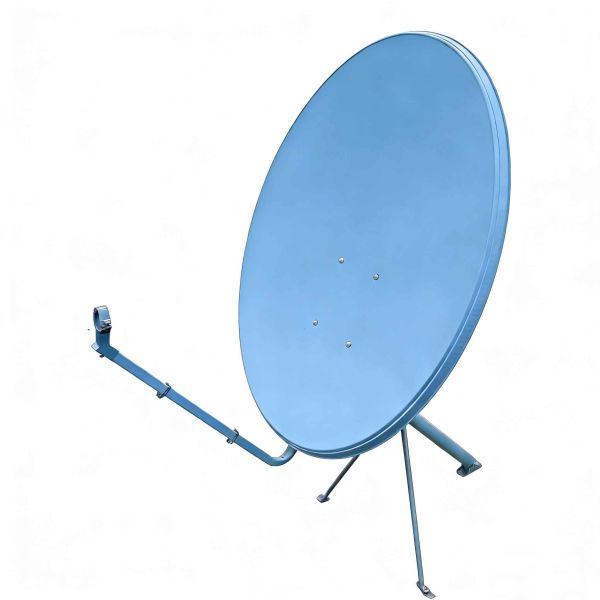

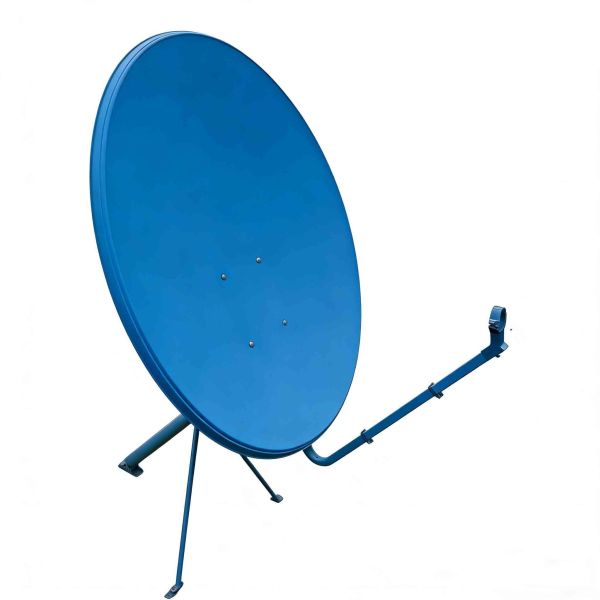

75cm Ku-Band Satellite Antenna - 10.7-12.75GHz, Galvanized Steel Construction for VSAT/Communication
75cm Ku-Band Satellite Antenna - 10.7-12.75GHz, Galvanized Steel Construction for VSAT/Communication
75cm Ku-Band Satellite Antenna - 10.7-12.75GHz, Galvanized Steel Construction for VSAT/Communication
75cm Ku-Band Satellite Antenna - 10.7-12.75GHz, Galvanized Steel Construction for VSAT/Communication
Specifications
Brand Name :
SETON
Model Number :
ST-Ku75
Place of Origin :
China
Payment Terms :
T/T,Western Union
Supply Ability :
100000/Month
Delivery Time :
30-35 days
Packaging Details :
Carton/ Pallet/ Case
Antenna Type :
KU 75cm OFFSET Antenna
Antenna Color :
Light Gray
Frequency Range :
10.7~12.75 GHz
Gain :
≥38.52dBi
F/D :
a=750mm, b=825mm
Reflector Thickness (Before powdering) :
0.6mm
Surface Treatment of Fasteners :
Dacromet
All Materials :
Galvanized Steel
Description
75cm Ku-Band Satellite Dish - Galvanized Steel, 10.7-12.75GHz for Communication Systems
Key Features
  • User-Friendly Installation: Optimized structural design facilitates rapid field assembly and precise orbital alignment, reducing installation time and complexity.
  • 75cm Ku-Band Satellite Antenna - 10.7-12.75GHz, Galvanized Steel Construction for VSAT/Communication
  • Superior Signal Integrity: High-quality manufacturing ensures excellent reflector surface precision for high-performance signal reception with minimal loss.
  • Exceptional Durability: Specialized anti-corrosion surface treatment with proven performance in Neutral Salt Spray Testing and Damp Heat Testing for extended operational lifespan in harsh outdoor environments.
  • Environmental Adaptability: Core components and materials pass rigorous High/Low Temperature Testing and Accelerated Aging Testing, maintaining structural stability and electrical performance under extreme conditions.
  • Aesthetic Integration: Customizable with client-specific logos and colors to match corporate branding or site requirements.
  • 75cm Ku-Band Satellite Antenna - 10.7-12.75GHz, Galvanized Steel Construction for VSAT/Communication 75cm Ku-Band Satellite Antenna - 10.7-12.75GHz, Galvanized Steel Construction for VSAT/Communication
  • Structural Resilience: Engineered to withstand wind forces up to Scale 12 with the dish in fixed position, ensuring stability during extreme weather conditions.
  • Global Logistics Ready: Robust and compact packaging designed for safe transit via air, ocean, and land transportation.
  • 75cm Ku-Band Satellite Antenna - 10.7-12.75GHz, Galvanized Steel Construction for VSAT/Communication
  • 75cm Ku-Band Satellite Antenna - 10.7-12.75GHz, Galvanized Steel Construction for VSAT/Communication
Technical Specifications
Specification Value
Antenna Type KU 75cm OFFSET Antenna
Antenna Color Light Gray
Frequency Range 10.7~12.75 GHz
Gain ≥38.52dBi
F/D a=750mm, b=825mm
VSWR Output 0.6±0.02
Focal Length f=492
Reflector Thickness (Before powdering) 0.6mm
LNBF Inner Size Φ40±1
Mast Pole Outer Diameter Φ42mm
Mast Pole Thickness 1.4mm
Elevation Angle 5~85°
Working Environment Temperature -50°~70℃
Working Environmental Humidity 5~95%
Azimuth 0~360°
Scale Indication 30~90°

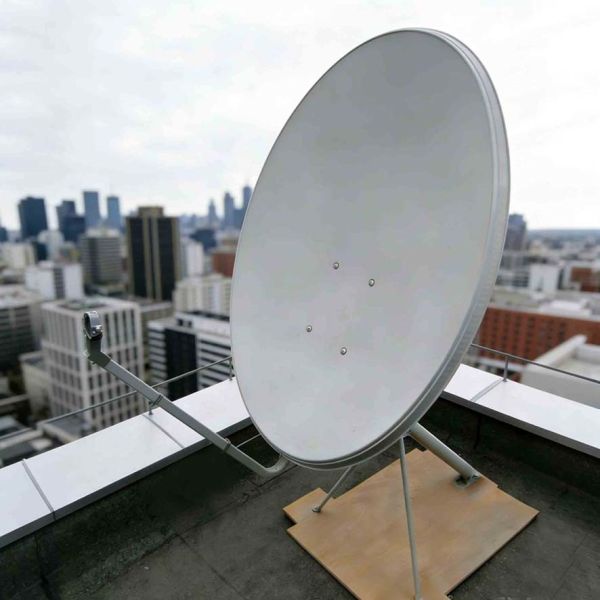

Installation Method L wall ground multi-purpose type
Anti-wind Scale when Dish Fixed Working properly under 8 level wind
Precision decrease under 10 level wind
Dish remains intact at grade 12 wind when pointing to the sky
Surface Treatment of Fasteners Dacromet
Color-zinc Fasteners Salt Spray Test ≥24h
All Materials Galvanized Steel

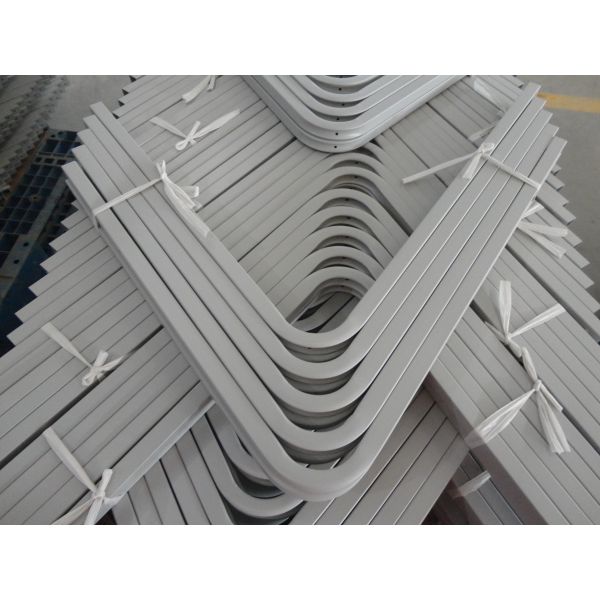

Feedhorn Supporter Materials 20×20×1 rectangular steel tube
