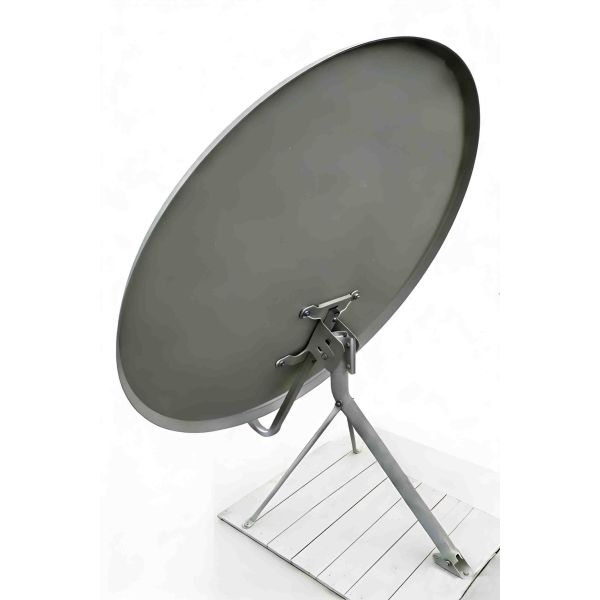

90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction
90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction
90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction
90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction
Specifications
Brand Name :
SETON
Model Number :
ST-Ku90
Place of Origin :
China
Payment Terms :
T/T,Western Union
Supply Ability :
100000/Month
Delivery Time :
30-35 days
Packaging Details :
Carton/ Pallet/ Case
Antenna Type :
KU 90cm OFFSET Antenna
Antenna Color :
Light gray (Customizable Design)
Frequency Range :
10.7~12.75 GHz
Gain :
≥40.32dBi
Reflector Thickness (Before powdering) :
0.7mm
Anti-wind Scale when Dish Fixed :
Working properly under 8 level wind Precision decrease under 10 level wind When wind grows to grade 12, dish is not destroyed when pointing to the sky
Description
ST-Ku90: 90cm Ku-Band Satellite Communication Antenna
High-performance 90cm parabolic antenna designed for reliable satellite signal reception in the Ku-band frequency range (10.7-12.75GHz), featuring robust construction and exceptional environmental durability.
Key Features & Benefits
  • Easy Installation: Optimized structural design enables rapid field assembly and precise orbital alignment90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction 90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction
  • Superior Signal Quality: High-precision reflector surface ensures excellent signal reception with minimal loss
  • Exceptional Durability: Specialized anti-corrosion treatment with proven performance in Neutral Salt Spray and Damp Heat Testing
  • Environmental Resilience: Components withstand extreme temperatures (-50° to 70°C) and UV exposure, verified through High/Low Temperature and Accelerated Aging Testing
  • Custom Branding: Available with client-specific logos and colors for corporate identity integration
  • 90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction
  • Structural Strength: Engineered to withstand Scale 12 wind forces with dish in fixed position
  • 90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction
  • Global Logistics Ready: Robust, compact packaging designed for safe air, ocean, and land transportation
  • 90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction
  • 90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction
Technical Specifications
Parameter Specification
Antenna Type KU 90cm OFFSET Antenna
Antenna Color Light gray (Customizable Design)
Frequency Range 10.7~12.75 GHz
Gain ≥40.32dBi
F/D a=900mm, b=990mm
VSWR Output 0.6
Focal Length f=540
Reflector Thickness 0.7mm (Before powdering)
LNBF Inner Size Φ40±1
Mast Pole Outer Diameter Φ42mm
Mast Pole Thickness 1.4mm
Elevation Angle 5~85°
Working Environment Temperature -50°~70℃
Working Environmental Humidity 5~95%
Azimuth 0~360°
Scale Indication 10~90°
Installation Method L wall ground multi-purpose type
Anti-wind Scale when Dish Fixed Working properly under 8 level wind. Precision decrease under 10 level wind. When wind grows to grade 12, dish is not destroyed when pointing to the sky
Surface Treatment of Fasteners Color-zinc
Color-zinc Fasteners Salt Spray Test ≥24h
All Materials Galvanized steel
Feedhorn Supporter Materials 19×19×1 rectangular steel tube
