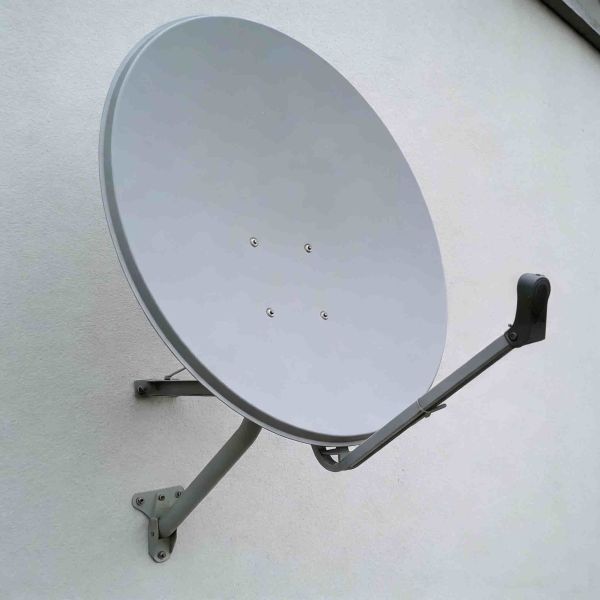

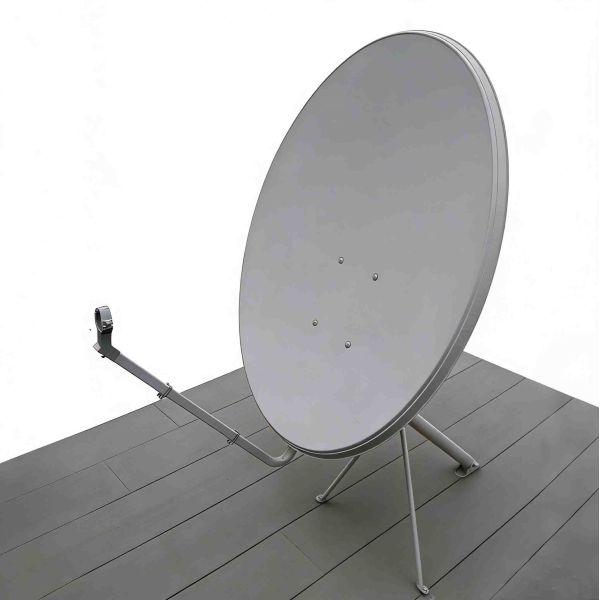

Galvanized Steel 60cm Ku-Band Dish - 10.7-12.75GHz, Heavy-Duty for Satellite Communication
Galvanized Steel 60cm Ku-Band Dish - 10.7-12.75GHz, Heavy-Duty for Satellite Communication
Galvanized Steel 60cm Ku-Band Dish - 10.7-12.75GHz, Heavy-Duty for Satellite Communication
Galvanized Steel 60cm Ku-Band Dish - 10.7-12.75GHz, Heavy-Duty for Satellite Communication
Specifications
Brand Name :
SETON
Model Number :
ST-Ku60
Place of Origin :
China
Payment Terms :
T/T,Western Union
Supply Ability :
100000/Month
Delivery Time :
30-35 days
Packaging Details :
Carton / Pallet / Case
Antenna Type :
KU 60cm OFFSET Antenna
Antenna Color :
Light gray (Customizable Design)
Frequency Range :
10.7~12.75 GHz
Gain :
≥38.52dBi
F/D :
a=600mm, b=658mm
Reflector Thickness :
0.5mm (Before powdering)
Fastener Surface Treatment :
Dacromet
All Materials :
Galvanized steel
Description
KU-BAND Rx Antenna ST-Ku60
Main Features
  • Compact & Lightweight: Ideal for space-constrained installations such as balconies or small rooftops.
  • User-Friendly Installation: Optimized structural design facilitates rapid field assembly and precise orbital alignment.
  • Superior Signal Integrity: High-quality manufacturing ensures excellent reflector surface precision for minimal signal loss.
  • Exceptional Durability: Specialized anti-corrosion treatment, successfully passing Neutral Salt Spray Testing and Damp Heat Testing.
  • Environmental Adaptability: Core components pass rigorous High/Low Temperature Testing and Accelerated Aging Testing.
  • Aesthetic Integration: Customizable with client-specific logos and colors.
  • Structural Resilience: Engineered to withstand wind forces up to Scale 12 (dish direction fixed).
  • Global Logistics Ready: Packaging suitable for air, ocean, and land transportation.


Technical Specifications
Specification Details
Antenna Type KU 60cm OFFSET Antenna
Antenna Color Light gray
Frequency Range 10.7~12.75 GHz
Gain ≥38.52dBi
F/D a=600mm, b=658mm
VSWR Output 0.6±0.02
Focal Length f=492
Reflector Thickness 0.5mm (Before powdering)
LNBF Inner Size Φ40±1
Mast Pole Outer Diameter Φ42mm
Mast Pole Thickness 1.4mm
Elevation Angle 5~85°
Working Temperature -50°~70℃
Working Humidity 5~95%
Azimuth 0~360°
Scale Indication 30~90°
Installation Method L wall ground multi-purpose type
Wind Resistance Works properly under 8 level wind. Precision decreases under 10 level wind. Dish remains intact at grade 12 wind when pointed skyward.
Fastener Surface Treatment Dacromet
Fastener Salt Spray Test ≥24h
Materials Galvanized steel
Feedhorn Supporter Materials 20×20×1 rectangular steel tube
