Specifications
Place of Origin :
Guangdong, China
Model Number :
CL-306AS
MOQ :
100
warranty :
3years
dimension :
240*155
power source :
Other
output power :
30/15/7.5/3.8W/8ohm
Shell Material :
ABS
the body material :
plastic
Radio function :
NO
Special Feature :
Durable, Waterproof
Operating Voltage :
100V/70V
Installation :
ceiling mount
Impedance :
8ohm
Frequency response :
100-20KHz
Magnet Material :
Ferrite, Neodymium
Description
100V/70V Ceiling Speaker 6 Inch Coaxial Ceiling Mount Surround Sound Speakers
100V/70V Ceiling Speaker 6 Inch Coaxial Ceiling Mount Surround Sound Speakers
100V/70V Ceiling Speaker 6 Inch Coaxial Ceiling Mount Surround Sound Speakers
100V/70V Ceiling Speaker 6 Inch Coaxial Ceiling Mount Surround Sound Speakers
100V/70V Ceiling Speaker 6 Inch Coaxial Ceiling Mount Surround Sound Speakers

Product Description

CL-306AS Ceiling Speaker: Premium Audio for Diverse Spaces

Features
Design & Build

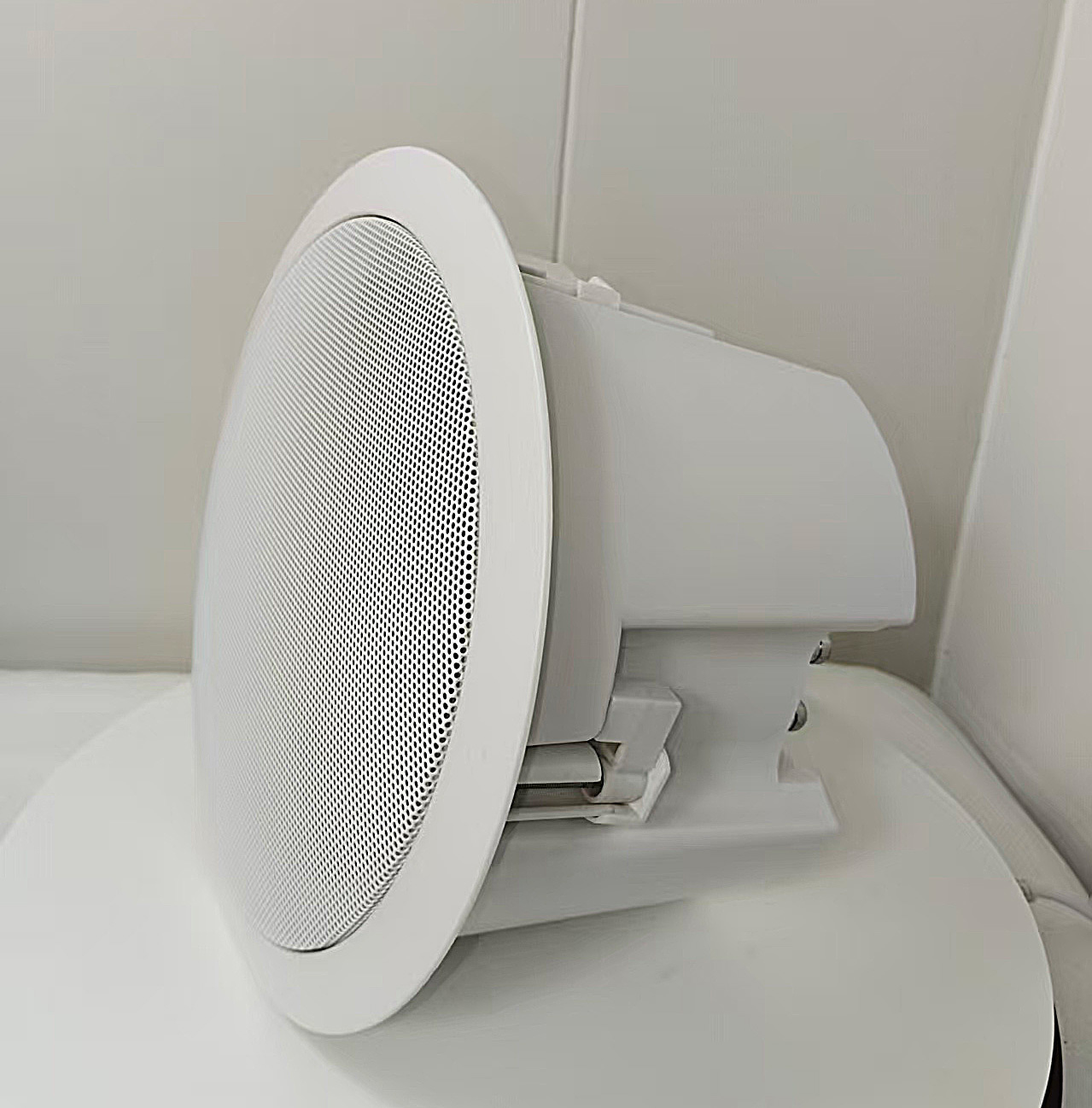

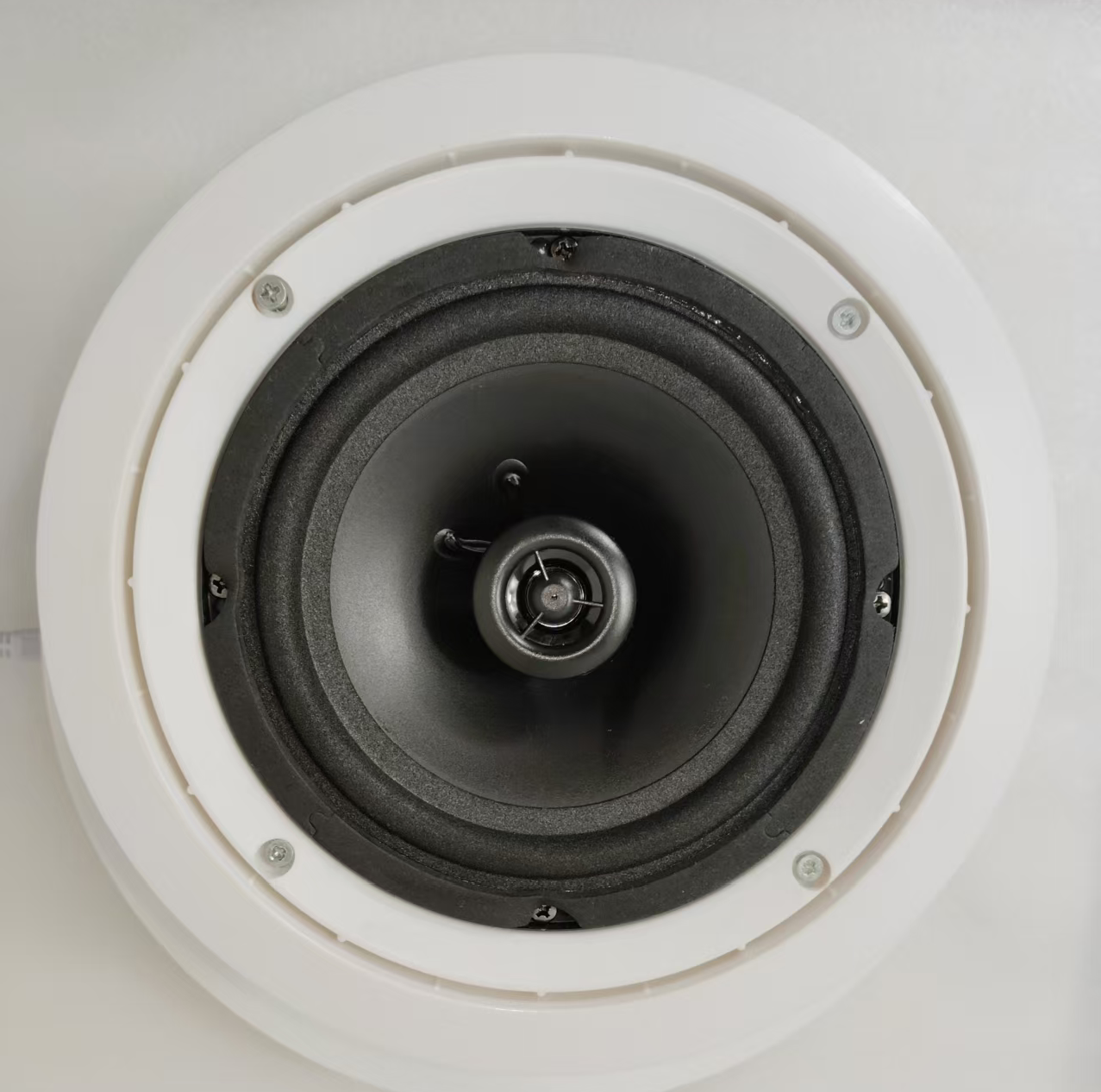

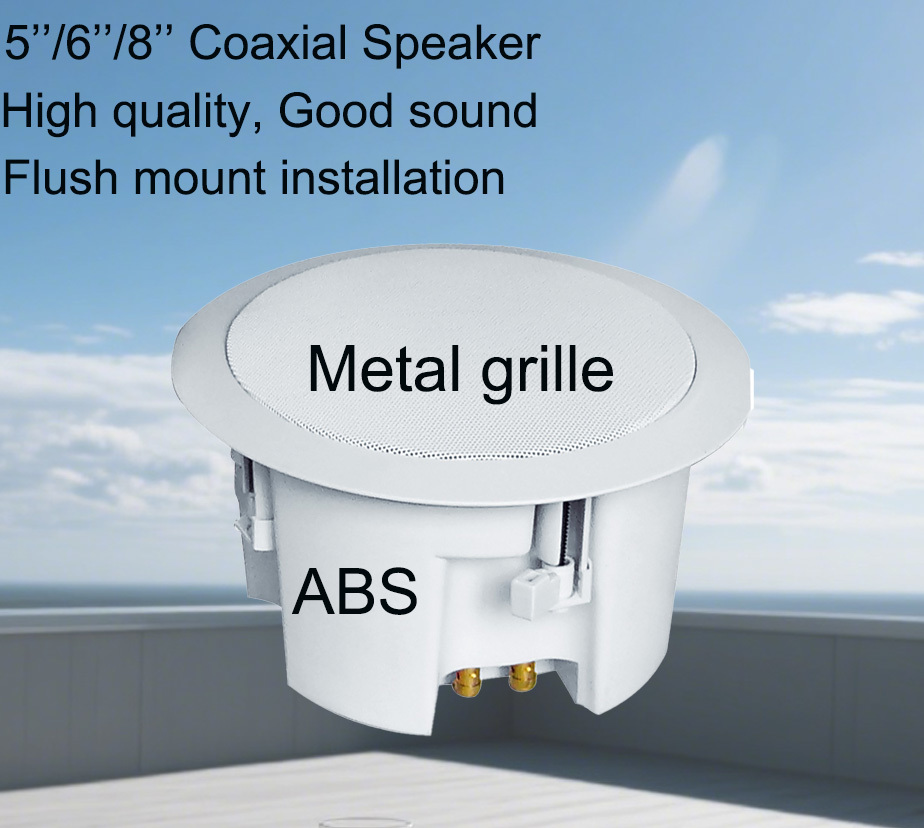

The CL-306AS is a high - caliber ceiling speaker engineered for commercial scenarios. It houses a 6” coaxial speaker unit,
ensuring a well - integrated audio output. Constructed with a metal grille, ABS baffle, and an ABS back cover in white, it blends durability with a clean aesthetic. The ABS components offer a lightweight yet sturdy structure, making it suitable for long - term use in hotels, schools, offices, and factories.
Performance Capabilities

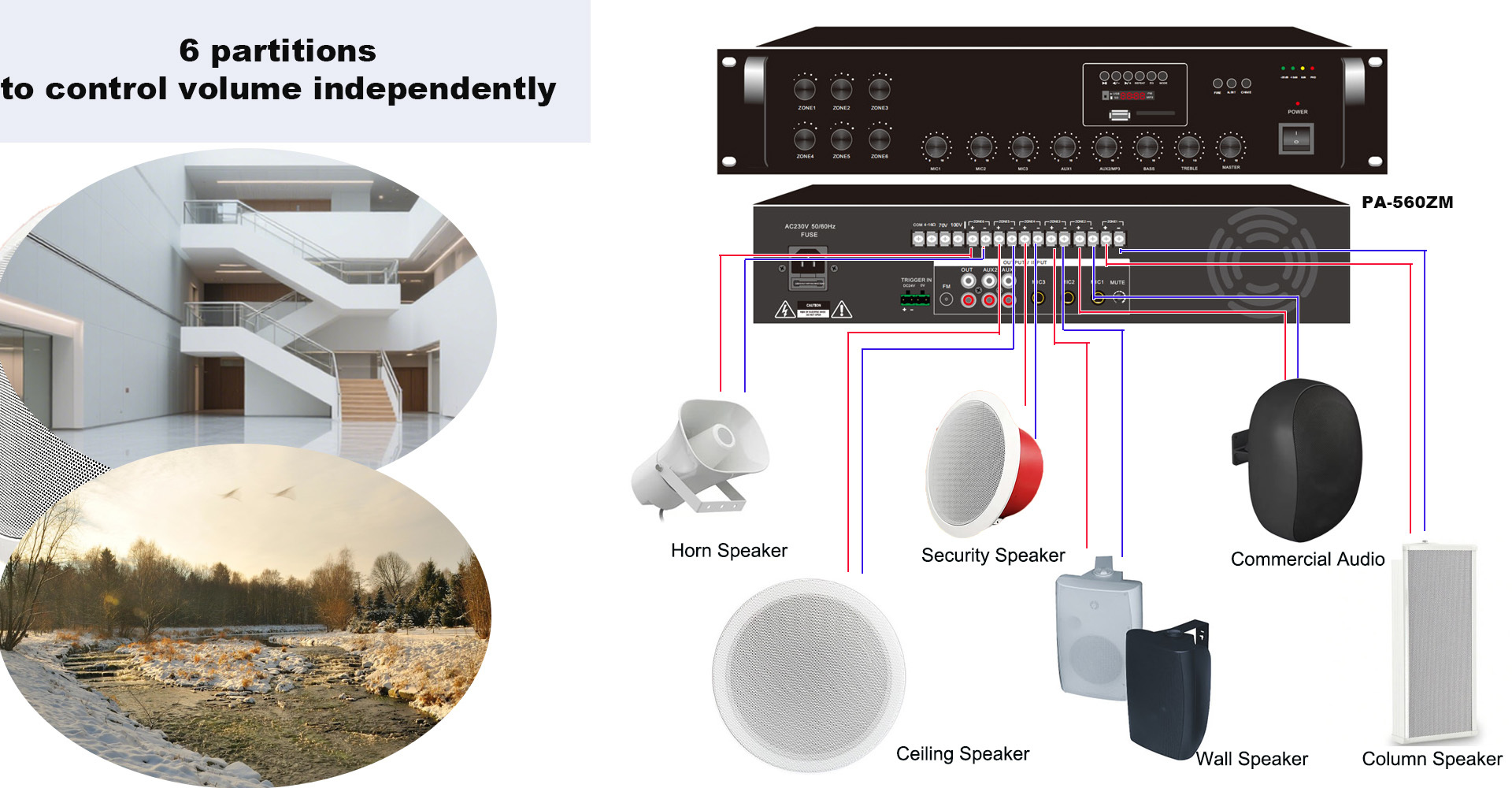

In terms of audio performance, it delivers versatile power options (30/15/7.5/3.8W at 8ohm, compatible with 100V/70V). With an 89dB sensitivity, it produces clear and audible sound across its 100 - 20KHZ frequency range. Whether playing background music to create a pleasant ambiance in a hotel lobby or broadcasting paging announcements in a school, it maintains sound fidelity. The built - in 70V/100V/8ohm transformer minimizes line losses over longer distances and enables easy parallel connection of multiple speakers, ideal for large - scale installations.
Installation & Dimensions
Installation is simplified via a flush - mount design, ensuring secure and seamless ceiling integration. Measuring 240*155mm and with a 210mm mounting hole, it fits standard setups. Weighing 2.2kgs, it’s manageable during installation while remaining stable once in place.
Application Scope
Perfect for industrial and commercial environments needing reliable background music or paging, the CL-306AS excels in hotels, schools, offices, and factories. Its robust design, flexible performance, and user - friendly installation make it a top choice for enhancing audio experiences in diverse spaces.
Model
Speaker Size
Power
Voltage
Sensitivity
Frequency Response
Dimension(mm)
Material
Mounting Hole
CL-305AS
5"
20/10/5/2.5W/8ohm
100V/70V
88DB
100-20KHz
213*130
ABS
180
CL-306AS
6"
30/15/7.5/3.8W/8ohm
100V/70V
89DB
100-20KHz
240*155
ABS
210
CL-308AS
8"
40/20/5W/8ohm
100V/70V
90DB
90-20KHz
280*190
ABS
250
