6 Inch Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker
6 Inch Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker
6 Inch Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker
6 Inch Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker
6 Inch Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker
6 Inch Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker
6 Inch Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker
6 Inch Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker
6 Inch Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker
6 Inch Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker
Specifications
warranty :
3years
dimension :
230*90
power source :
Other
output power :
30W
Shell Material :
ABS
Radio function :
NO
Operating Voltage :
100V
Frequency response :
90-20KHz
Magnet Material :
Ferrite, Neodymium
Place of Origin :
Guangdong, China
Model Number :
CL-306V
MOQ :
100
Description
6 Inch Durable Coaxial Speaker 30W Commercial Ceiling Speaker OEM Speaker
CL-306V 6 Inch Durable Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker
Product Description
CL-306V Ceiling Speaker: Excellence in Audio for Commercial Spaces
Features
Design & Construction

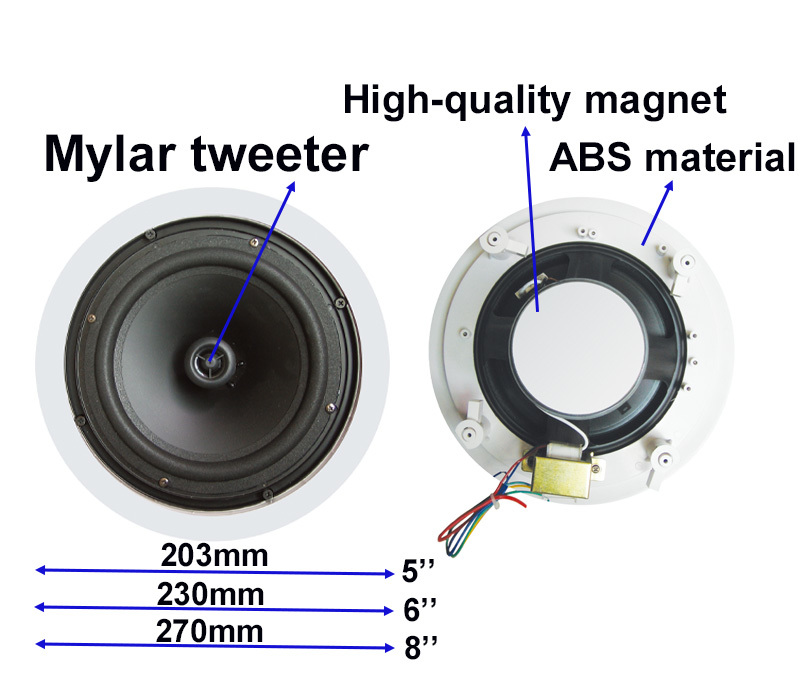

  • 6" coaxial speaker unit for commercial applications
  • Durable white metal grille with ABS baffle construction
  • Lightweight yet robust ABS material for long-lasting performance
  • Discreet design blends seamlessly into various ceiling types
Acoustic Performance
  • 30W power rating with 100V operation
  • 88dB sensitivity for clear, audible sound
  • Wide frequency response (90Hz-20KHz) for full-range audio
  • Ideal for both background music and paging applications
Installation & Dimensions
  • Clamp-based mechanism for easy, secure ceiling mounting
  • Compact dimensions: 230×90mm (mounting hole size: 200mm)
  • Lightweight at 1.6kg for easy handling during installation
  • Sturdy construction ensures stable mounting
Application Suitability
Perfect for commercial environments including hotels, schools, offices, and factories where reliable audio for background music and paging is required.
Technical Specifications
Model Speaker Size Power Voltage Sensitivity Frequency Response Dimension(mm) Material Mounting Hole
CL-305V 5" Coaxial Speaker 20W 100V 88DB 100-20KHz 203×80 ABS 170
CL-306V 6" Coaxial Speaker 30W 100V 88DB 90-20KHz 230×90 ABS 200
CL-308V 8" Coaxial Speaker 40W 100V 88DB 50-20KHz 270×105 ABS 240
