Specifications
Model Number :
CL-305AS
Place of Origin :
Guangdong, China
MOQ :
100
warranty :
3years
dimension :
213*130
power source :
Other
output power :
20/10/2.5/8ohm
Shell Material :
ABS
Radio function :
NO
Operating Voltage :
100V/70V
Impedance :
8ohm
Frequency response :
100-20KHz
Magnet Material :
Ferrite
Description
CL-308AS High Quality 8-inch Coaxial Speaker 100V/70V Ceiling Speaker for Hotel Schools Office and Factories
Ideal for Hotel, Restaurant, and Commercial Background Music

CL-306AS Ceiling Speaker: Premium Audio for Diverse Spaces

CL-308AS OEM ODM High Quality 8-inch Coaxial Ceiling Loudspeaker for Hotel Schools Office and Factories
Features
Design & Build

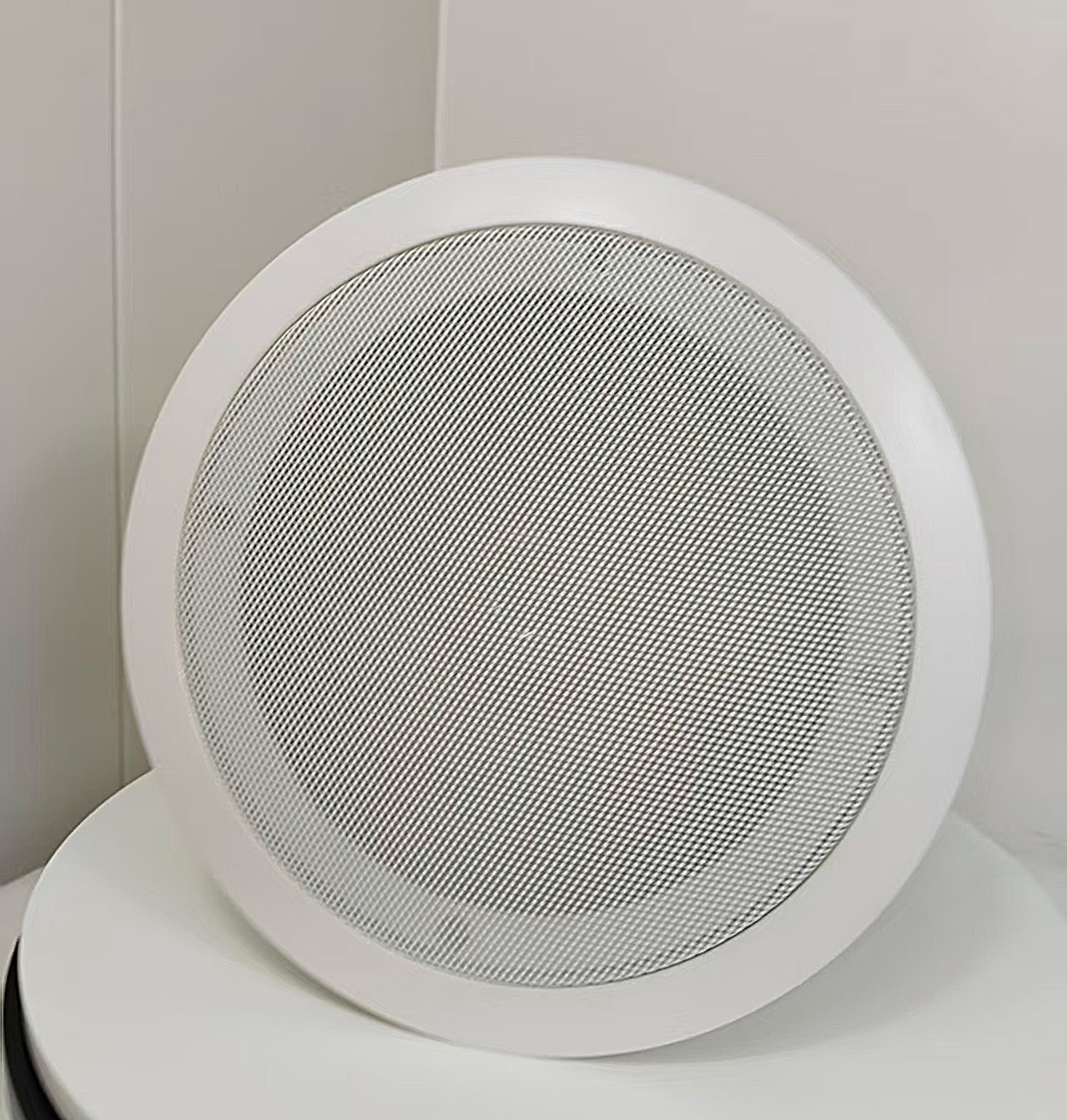

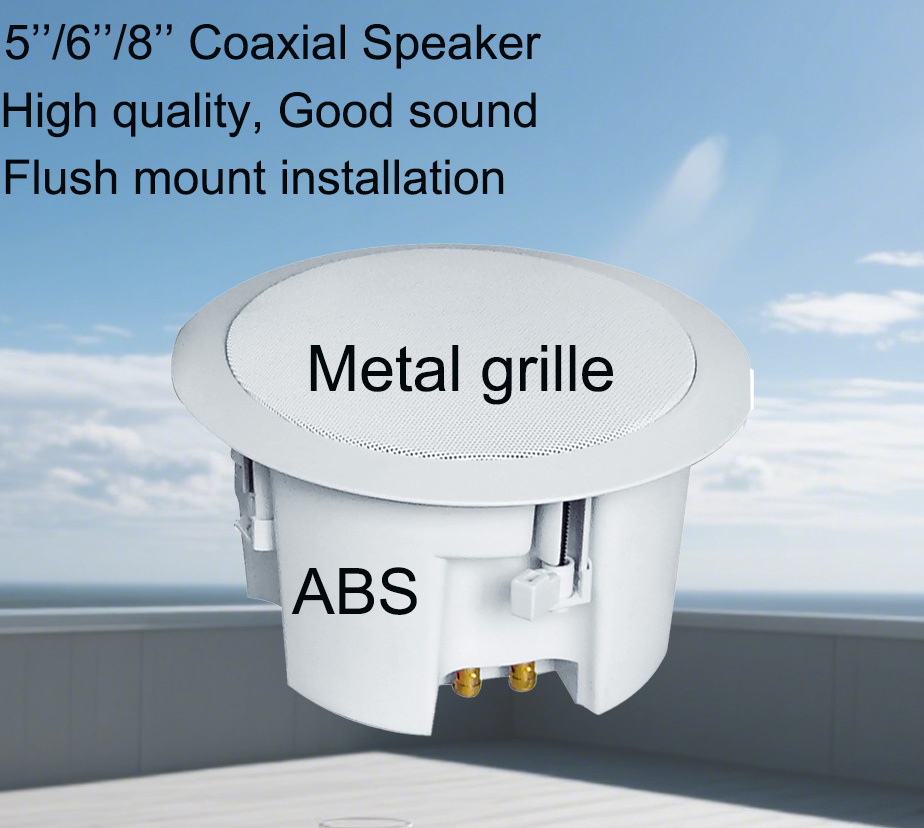

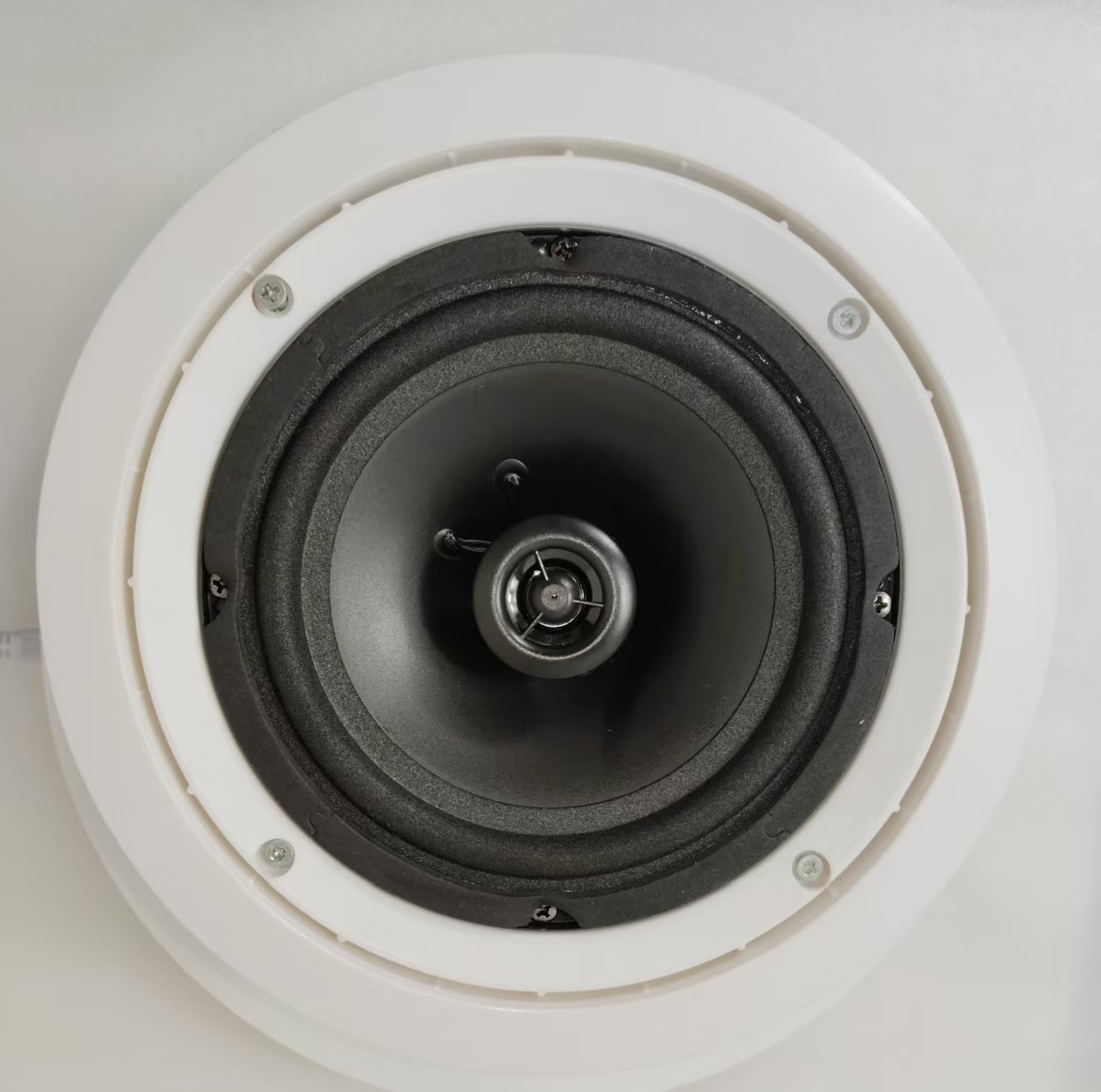

The CL-306AS is a high - caliber ceiling speaker engineered for commercial scenarios. It houses a 6” coaxial speaker unit,
ensuring a well - integrated audio output. Constructed with a metal grille, ABS baffle, and an ABS back cover in white, it blends durability with a clean aesthetic. The ABS components offer a lightweight yet sturdy structure, making it suitable for long - term use in hotels, schools, offices, and factories.
Performance Capabilities
In terms of audio performance, it delivers versatile power options (30/15/7.5/3.8W at 8ohm, compatible with 100V/70V). With an 89dB sensitivity, it produces clear and audible sound across its 100 - 20KHZ frequency range. Whether playing background music to create a pleasant ambiance in a hotel lobby or broadcasting paging announcements in a school, it maintains sound fidelity. The built - in 70V/100V/8ohm transformer minimizes line losses over longer distances and enables easy parallel connection of multiple speakers, ideal for large - scale installations.
Installation & Dimensions
Installation is simplified via a flush - mount design, ensuring secure and seamless ceiling integration. Measuring 240*155mm and with a 210mm mounting hole, it fits standard setups. Weighing 2.2kgs, it’s manageable during installation while remaining stable once in place.
Application Scope
Perfect for industrial and commercial environments needing reliable background music or paging, the CL-306AS excels in hotels, schools, offices, and factories. Its robust design, flexible performance, and user - friendly installation make it a top choice for enhancing audio experiences in diverse spaces.
Technical Specifications
Model Speaker Size Power Voltage Sensitivity Frequency Response Dimension (mm) Material Mounting Hole
CL-305AS 5" 20/10/5/2.5W/8ohm 100V/70V 88DB 100-20KHz 213*130 ABS 180
CL-306AS 6" 30/15/7.5/3.8W/8ohm 100V/70V 89DB 100-20KHz 240*155 ABS 210
CL-308AS 8" 40/20/5W/8ohm 100V/70V 90DB 90-20KHz 280*190 ABS 250
